A012N14

A012N14

SKU DOR5966928
by Dormer Pramet
Primary Use: Possible Use:

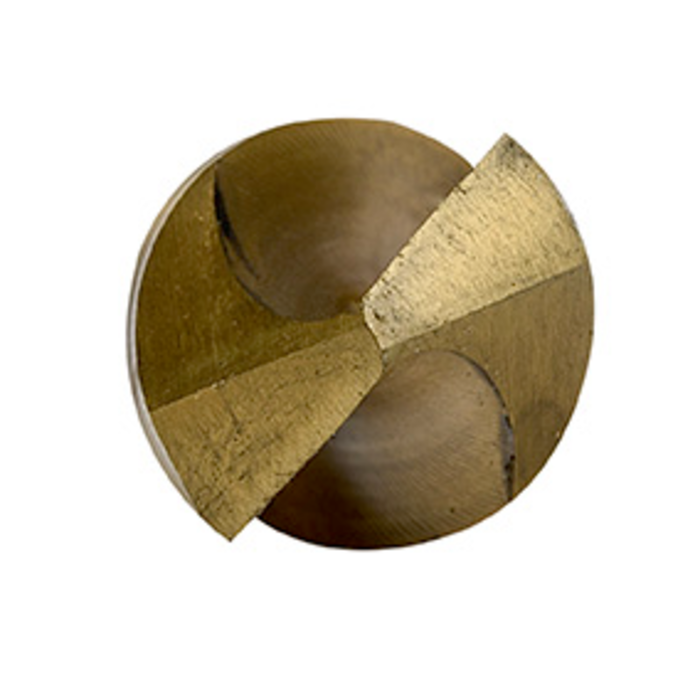

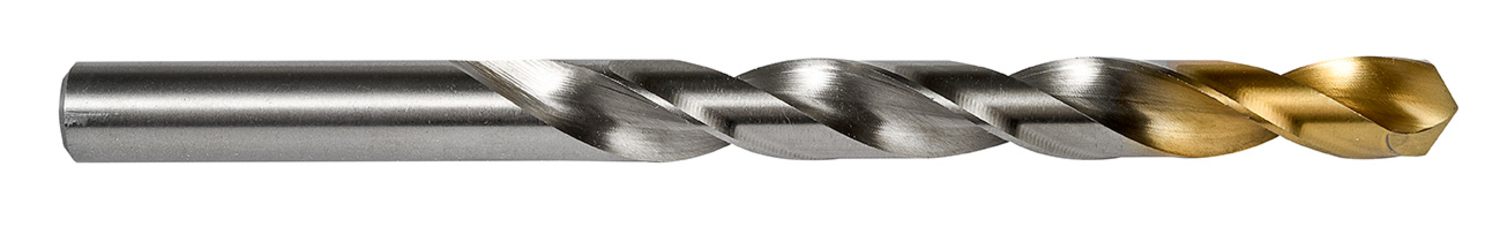

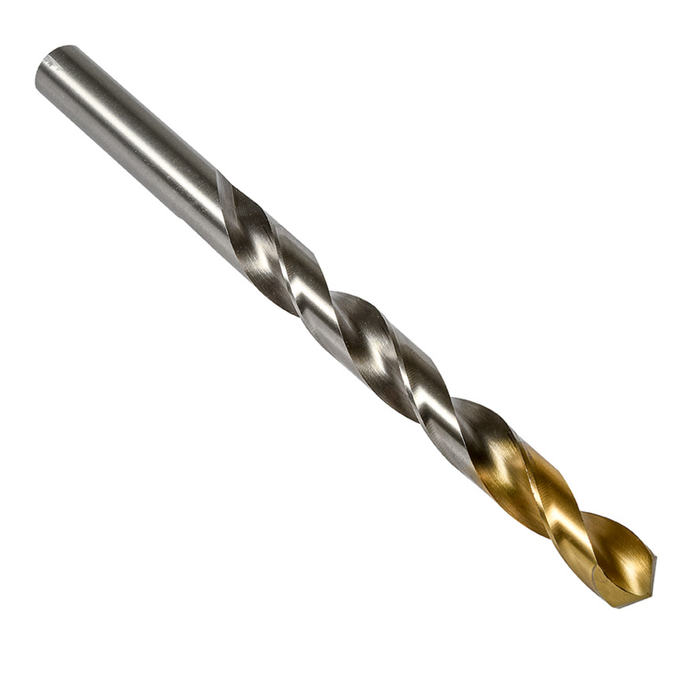

Jobber length drill with straight shank, diameter 0.1820" (N14) with an overall length of 3.3/8" and flute length of 2.3/16" according to ANSI standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$2.93 - $2.93
$2.93
$2.93 - $2.93
$2.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.182

Cutting Diameter - mm (DC): 4.62

Drill Point Angle - deg: 118

Flute Length: 2.1875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.375

Connetion Diameter: 0.182

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright/TiN

EDP: 571354

EAN: 7320760571354

MFG Part Number: 5966928
