A100N17

A100N17

SKU DOR5966937
by Dormer Pramet
Primary Use: Possible Use:

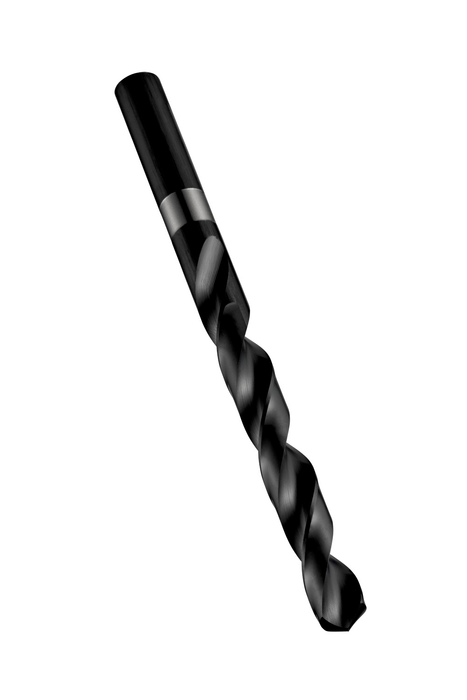

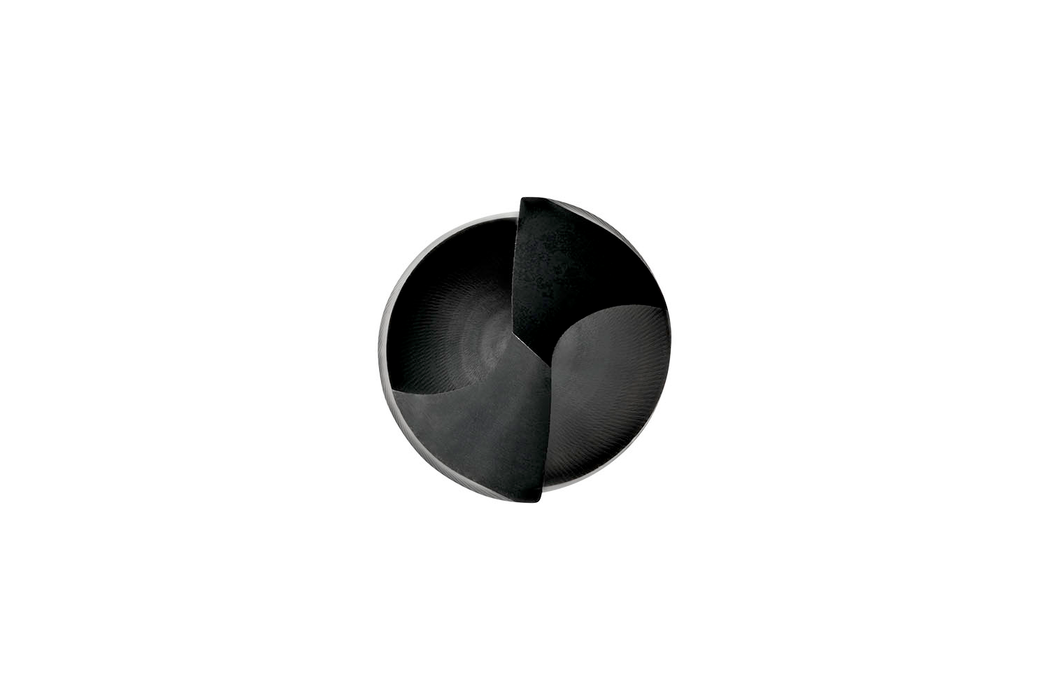

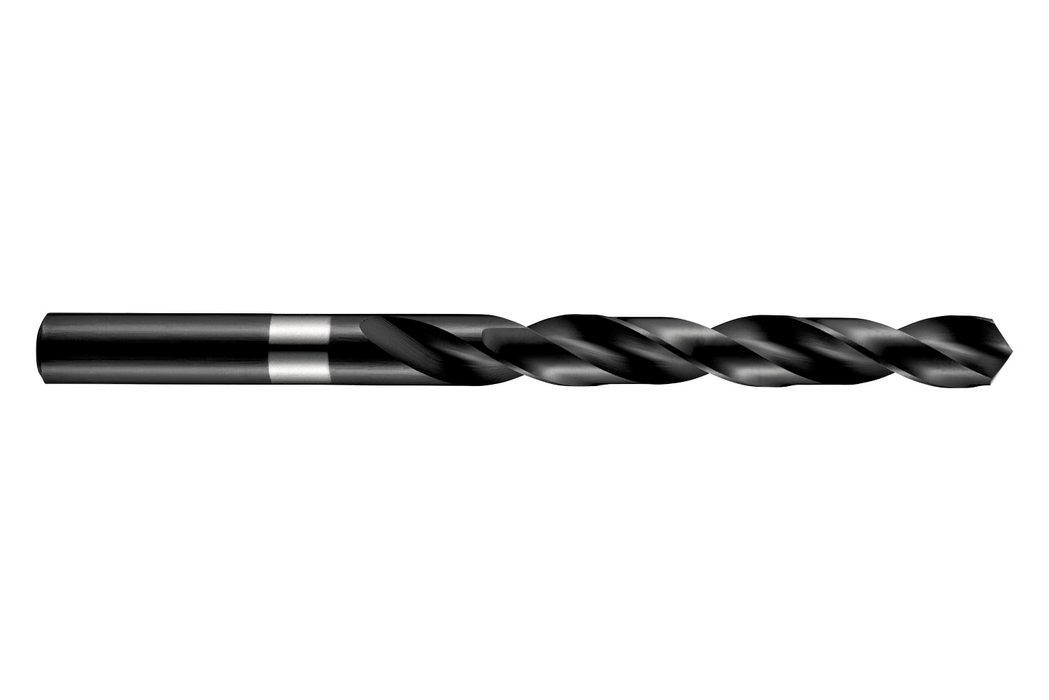

Jobber length drill with straight shank, diameter 0.1730" (N17) with an overall length of 80mm and flute length of 47mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$4.29 - $4.29
$4.29
$4.29 - $4.29
$4.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.173

Cutting Diameter - mm (DC): 4.39

Drill Point Angle - deg: 118

Flute Length: 1.8504

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.1496

Connetion Diameter: 0.1728

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 28780

EAN: 7320760028780

MFG Part Number: 5966937
