A100N22

Name: A100N22
Brand: Dormer Pramet
SKU: DOR5966970
Price: 3.93 CAD
Availability: InStock

SKU DOR5966970

by Dormer Pramet

Primary Use: Possible Use:

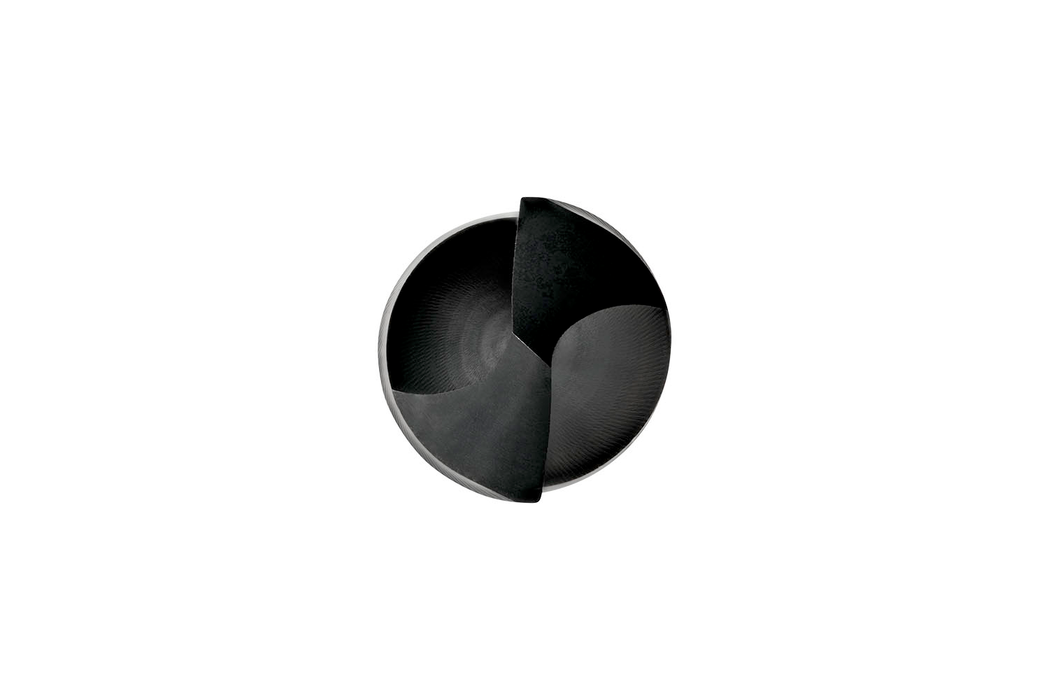

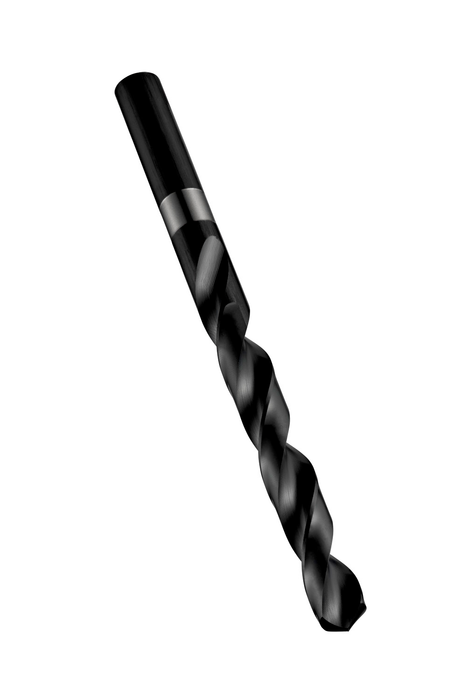

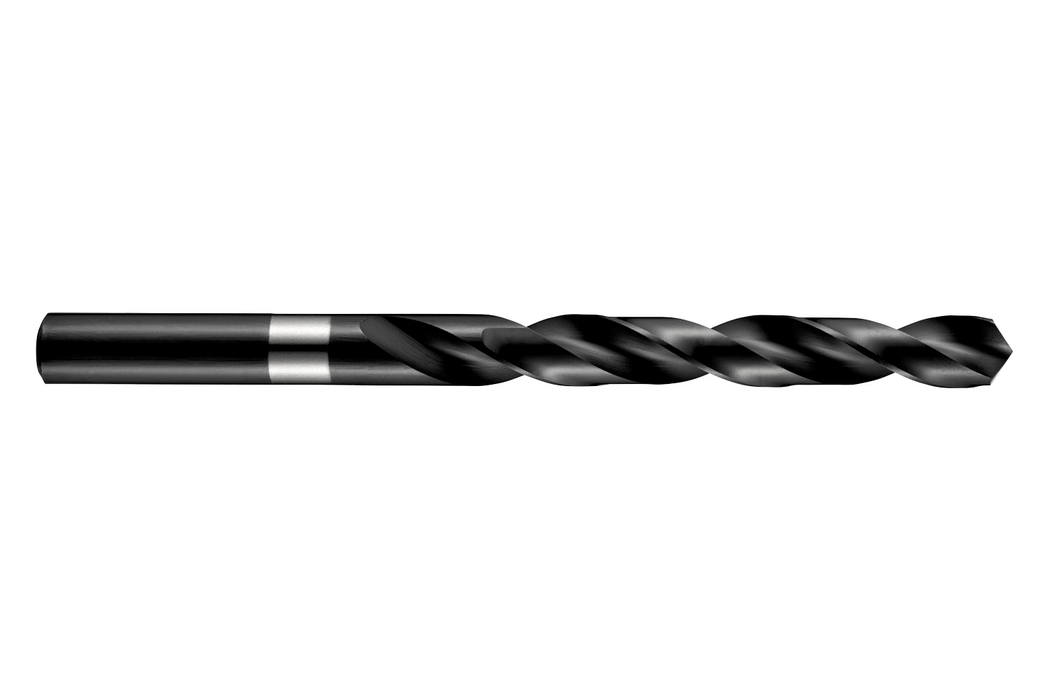

Jobber length drill with straight shank, diameter 0.1570" (N22) with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here

$3.93 - $3.93

$3.93

$3.93 - $3.93

$3.93

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.157

Cutting Diameter - mm (DC): 3.99

Drill Point Angle - deg: 118

Flute Length: 1.6929

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.9528

Connetion Diameter: 0.1571

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 28841

EAN: 7320760028841

MFG Part Number: 5966970
