A012I

A012I

SKU DOR5967002
by Dormer Pramet
Primary Use: Possible Use:

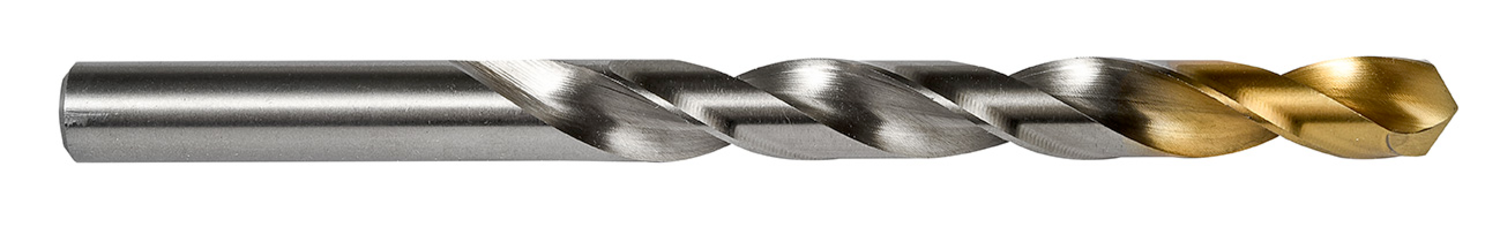

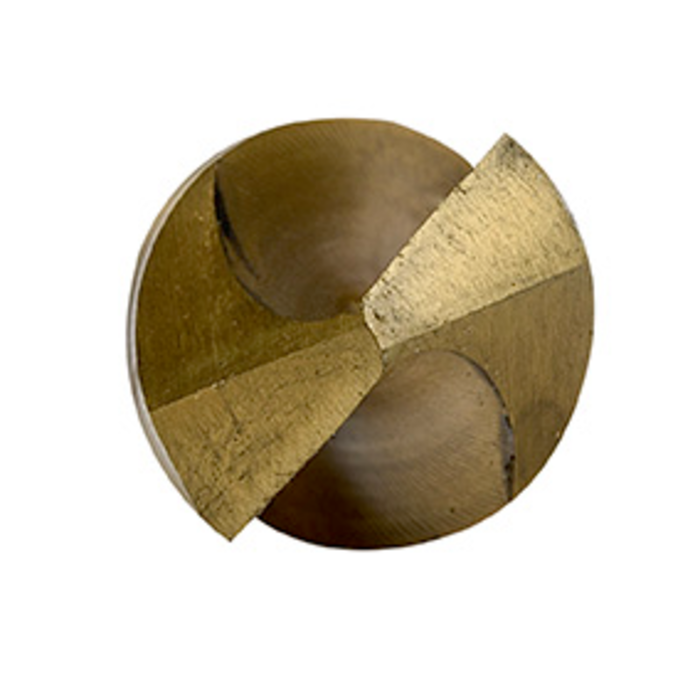

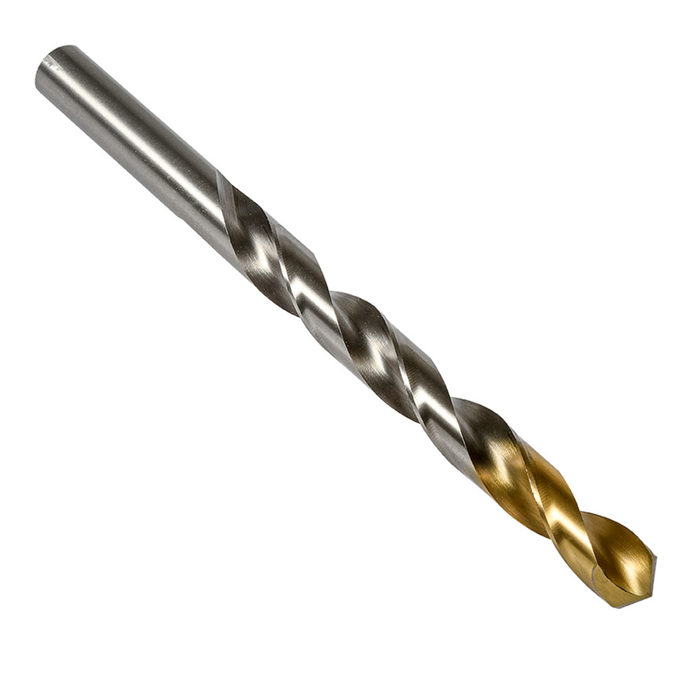

Jobber length drill with straight shank, diameter 0.2720" (I) with an overall length of 4.1/8" and flute length of 2.7/8" according to ANSI standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$5.36 - $5.36
$5.36
$5.36 - $5.36
$5.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.272

Cutting Diameter - mm (DC): 6.91

Drill Point Angle - deg: 118

Flute Length: 2.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.125

Connetion Diameter: 0.272

Tool Direction: Right

Shank: Cylindrical shank

Letter: I

Grade: Bright/TiN

EDP: 571248

EAN: 7320760571248

MFG Part Number: 5967002
