A100N40

A100N40

SKU DOR5967041
by Dormer Pramet
Primary Use: Possible Use:

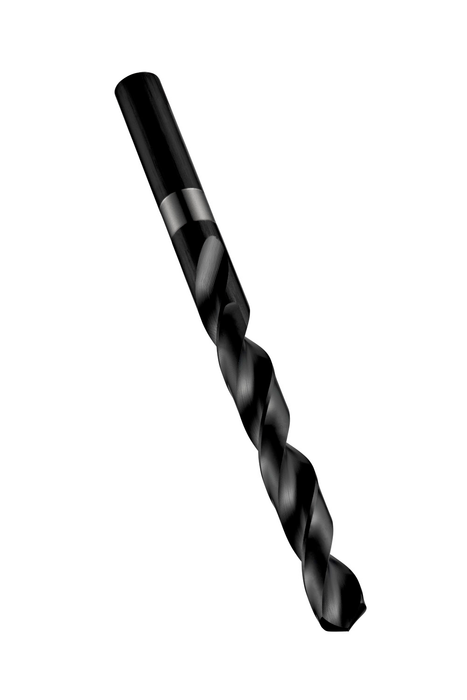

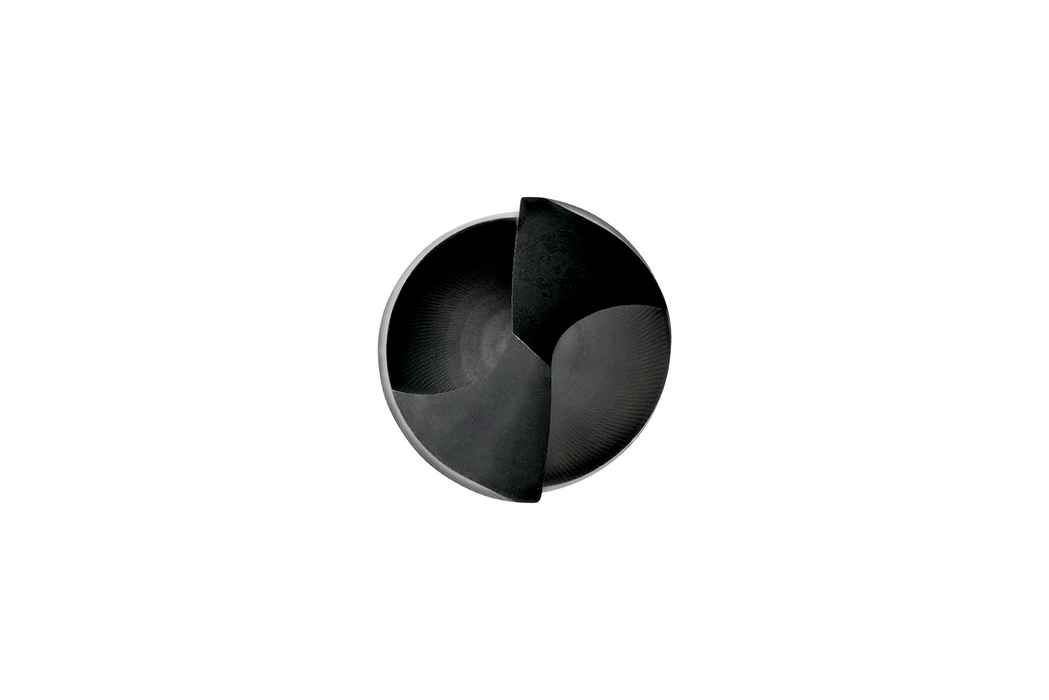

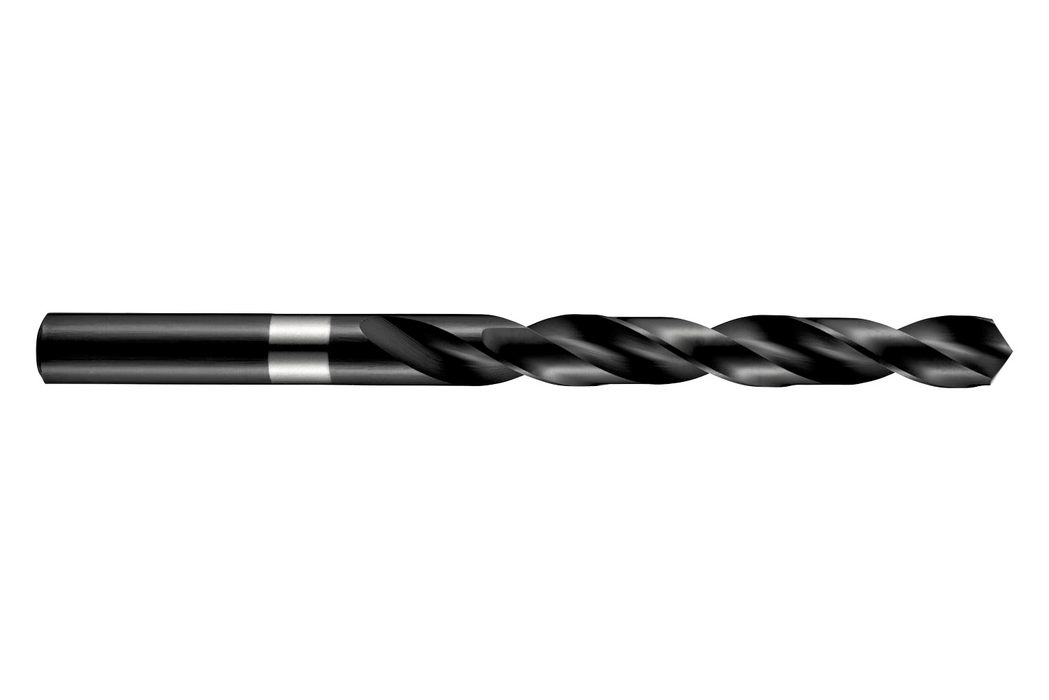

Jobber length drill with straight shank, diameter 0.0980" (N40) with an overall length of 57mm and flute length of 30mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.14 - $3.14
$3.14
$3.14 - $3.14
$3.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.098

Cutting Diameter - mm (DC): 2.49

Drill Point Angle - deg: 118

Flute Length: 1.1811

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.2441

Connetion Diameter: 0.098

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 29046

EAN: 7320760029046

MFG Part Number: 5967041
