A022.9

A022.9

SKU DOR5967157
by Dormer Pramet
Primary Use:

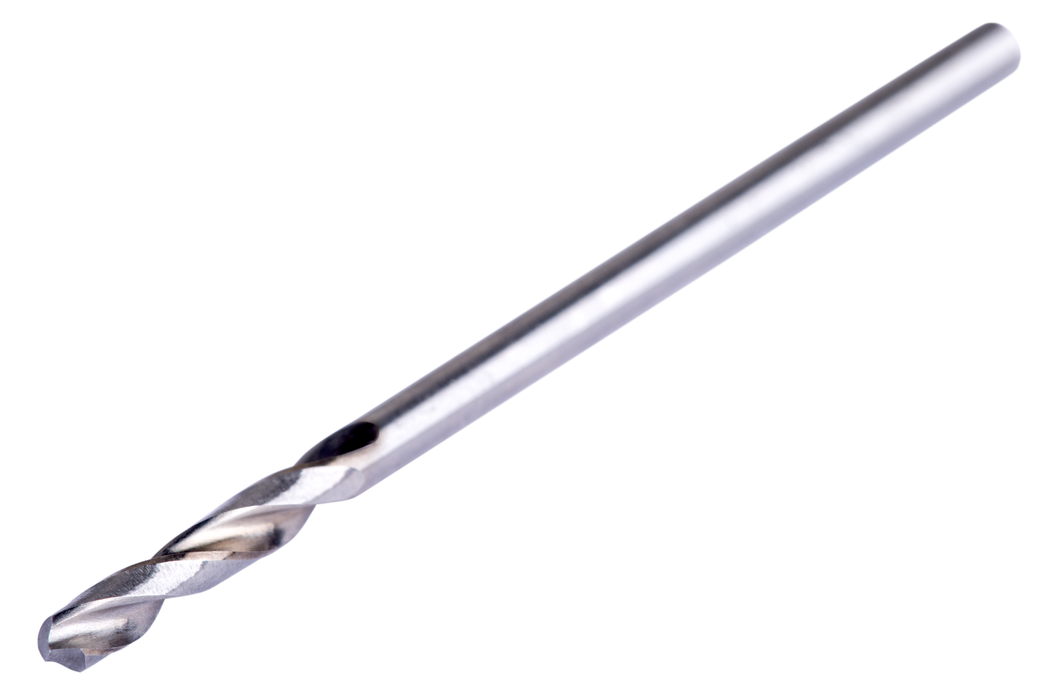

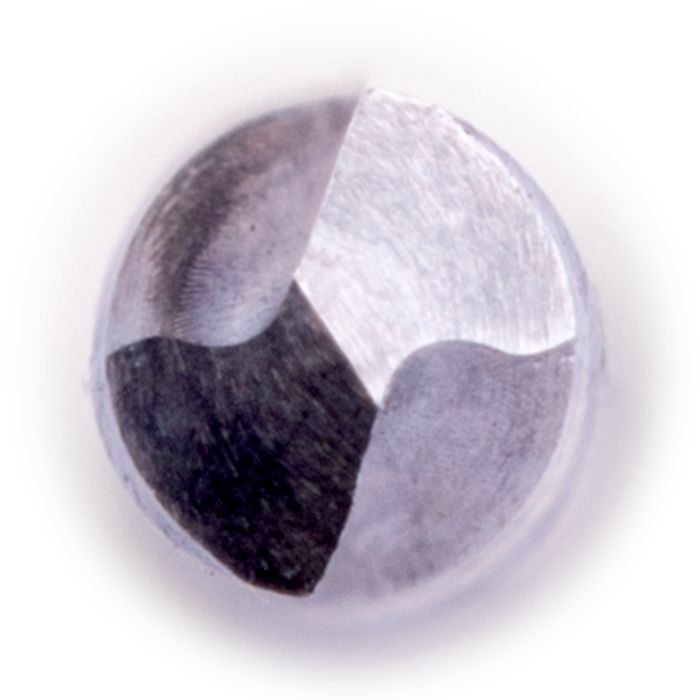

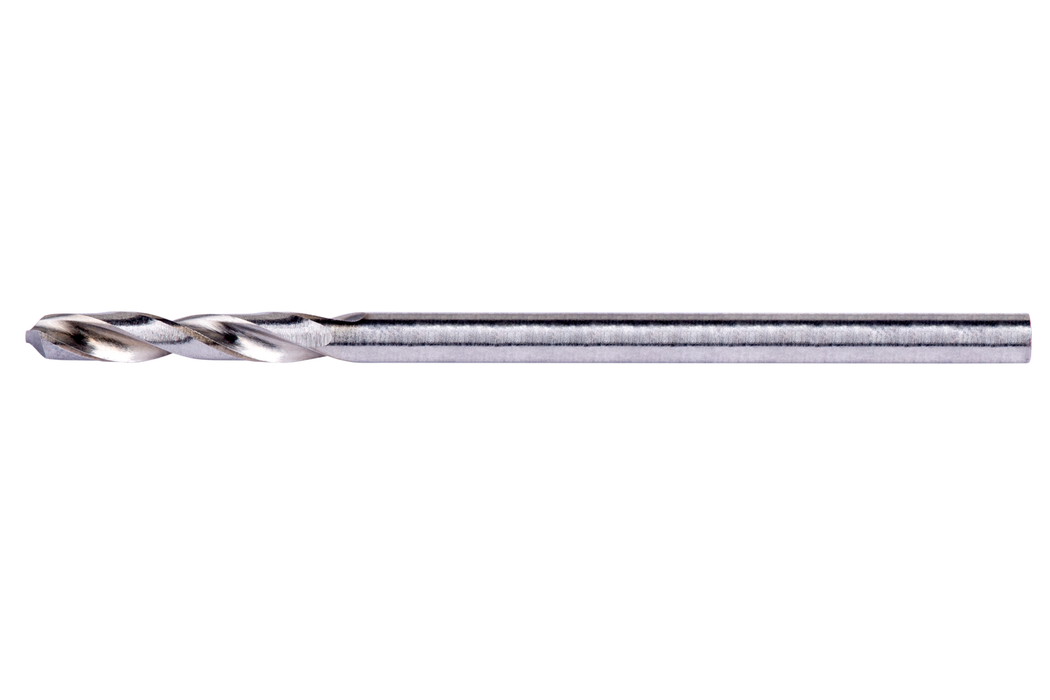

Stub length drill with straight shank, diameter 0.9mm with an overall length of 25mm and flute length of 5.5mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$10.29 - $10.29
$10.29
$10.29 - $10.29
$10.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0354

Cutting Diameter - mm (DC): 0.9

Drill Point Angle - deg: 135

Flute Length: 0.2165

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 0.9843

Connetion Diameter: 0.0354

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 600429

EAN: 7320760600429

MFG Part Number: 5967157
