A0023/64

A0023/64

SKU DOR5967192
by Dormer Pramet
Primary Use: Possible Use:

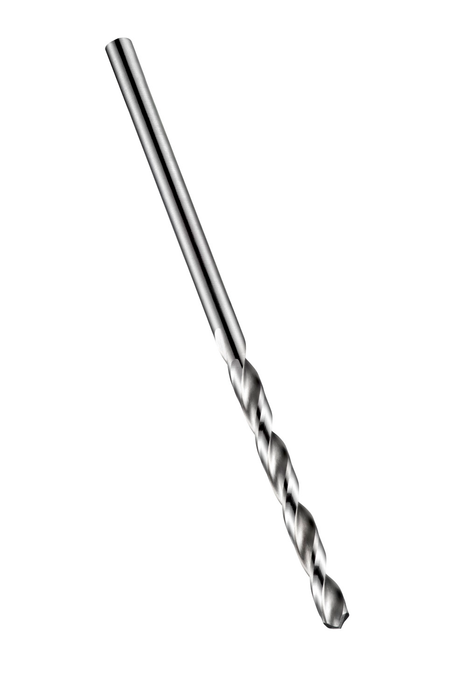

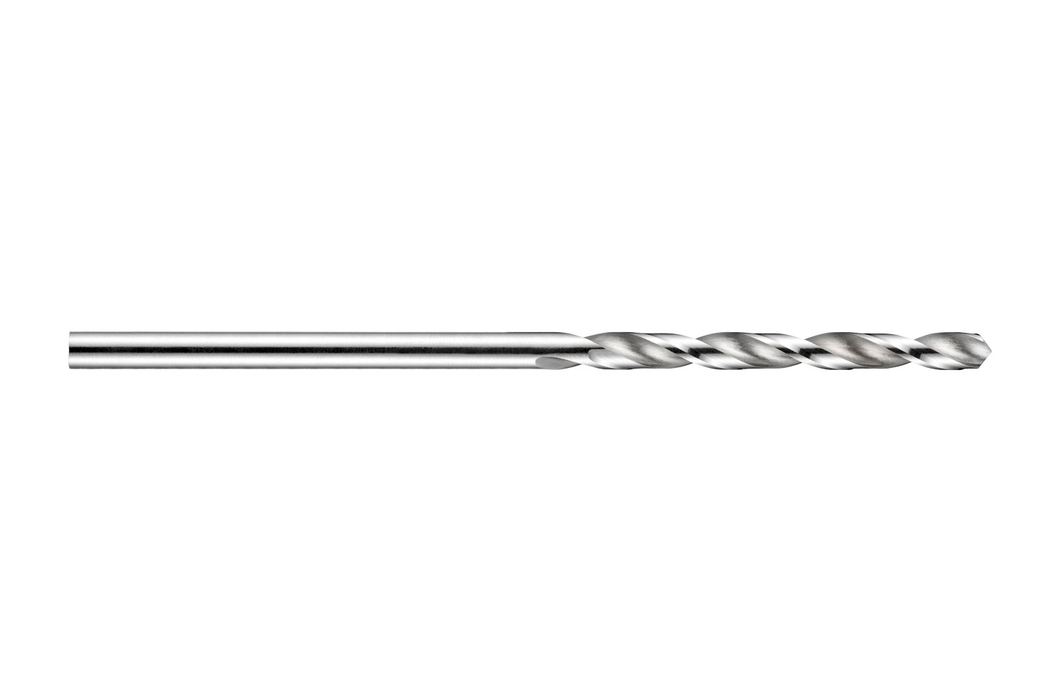

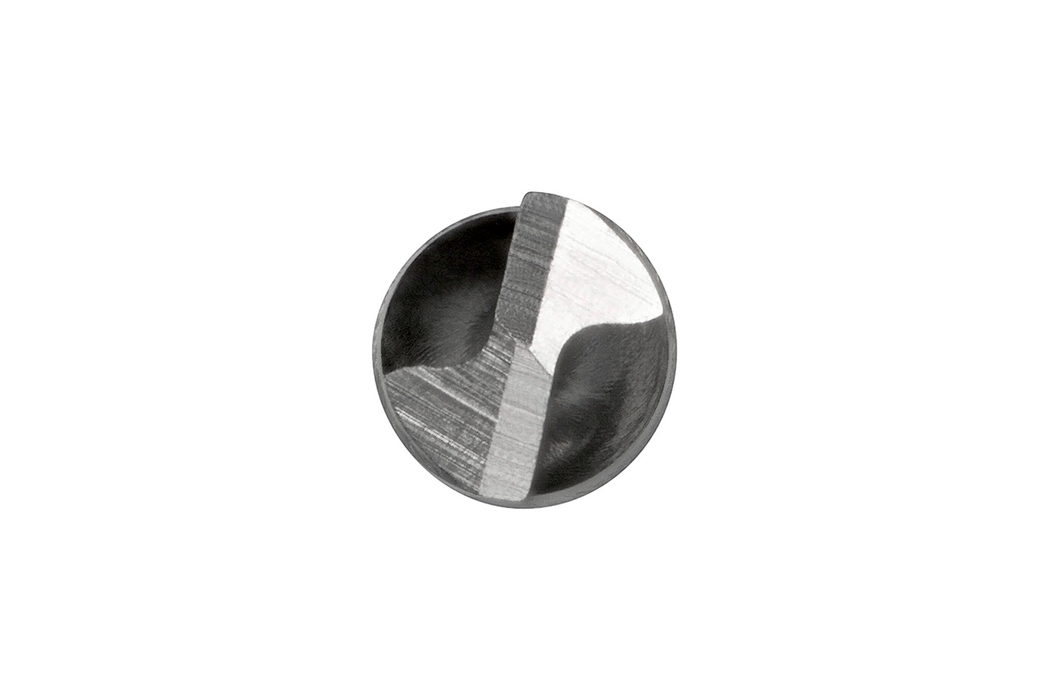

Jobber length drill with straight shank, diameter 0.0469" (3/64) with an overall length of 38mm and flute length of 16mm according to DIN 338 standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.33 - $3.33
$3.33
$3.33 - $3.33
$3.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0469

Cutting Diameter - mm (DC): 1.19

Drill Point Angle - deg: 118

Flute Length: 0.6299

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 1.4961

Connetion Diameter: 0.0469

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/64

Grade: Bright

EDP: 376928

EAN: 7320760376928

MFG Part Number: 5967192
