A0025/64

A0025/64

SKU DOR5967299
by Dormer Pramet
Primary Use: Possible Use:

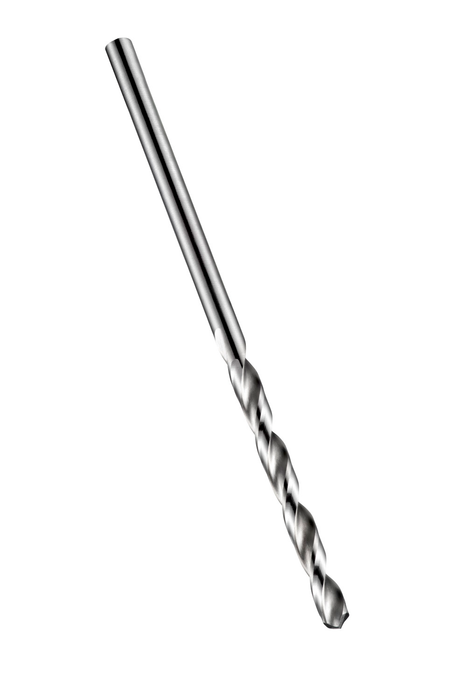

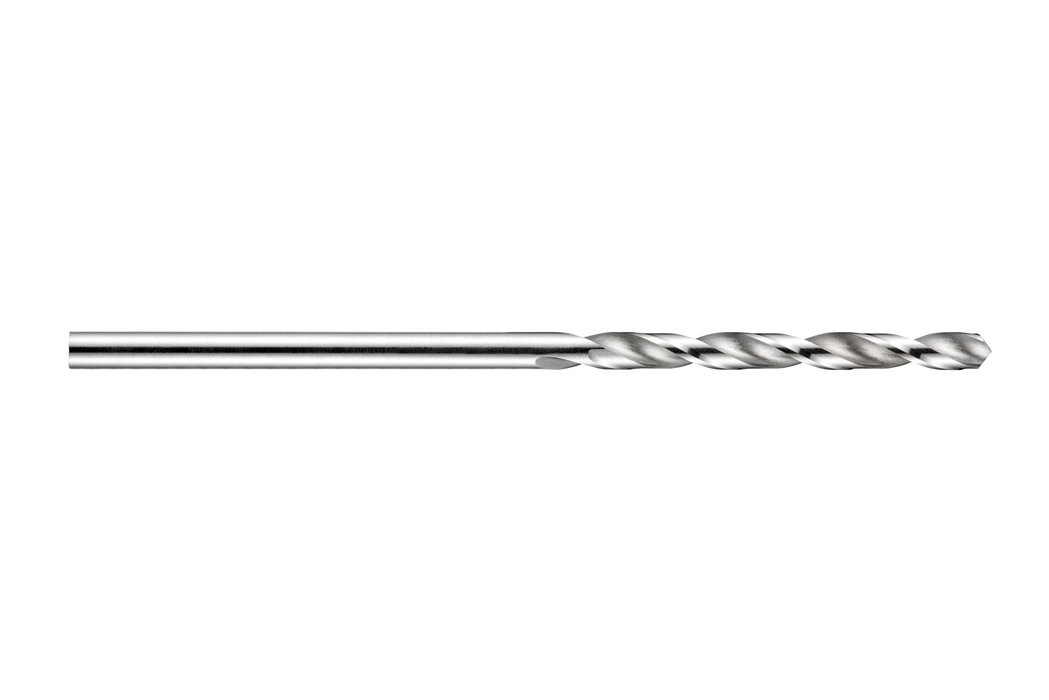

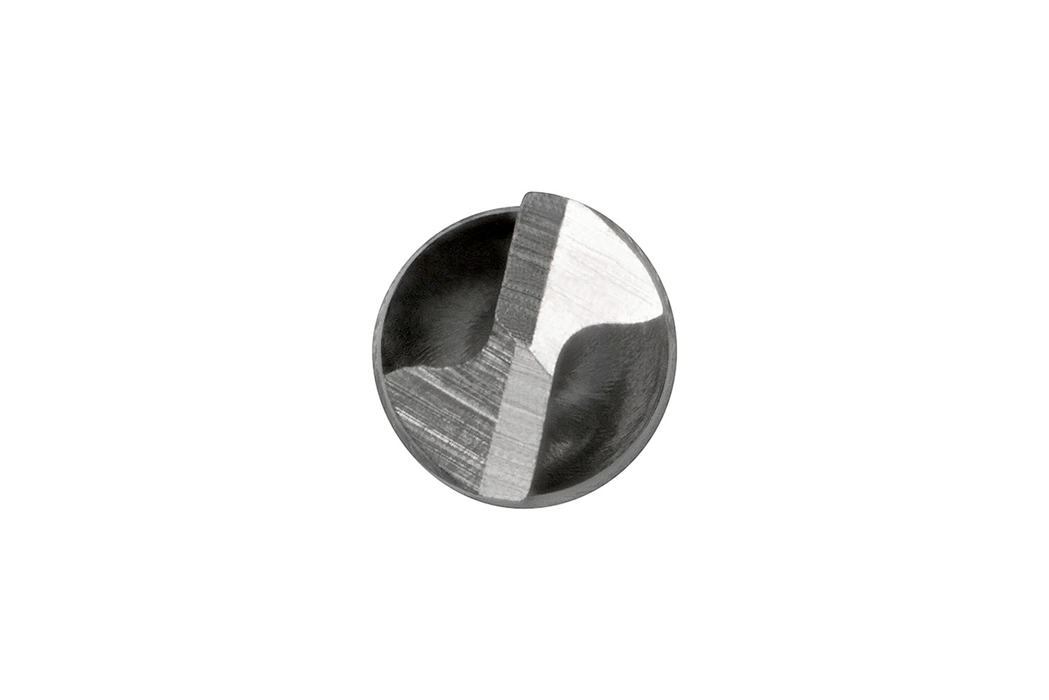

Jobber length drill with straight shank, diameter 0.0781" (5/64) with an overall length of 49mm and flute length of 24mm according to DIN 338 standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.00 - $3.00
$3.00
$3.00 - $3.00
$3.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0781

Cutting Diameter - mm (DC): 1.98

Drill Point Angle - deg: 118

Flute Length: 0.9449

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 1.9291

Connetion Diameter: 0.078

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/64

Grade: Bright

EDP: 376935

EAN: 7320760376935

MFG Part Number: 5967299
