A00215/64

A00215/64

SKU DOR5967394
by Dormer Pramet
Primary Use: Possible Use:

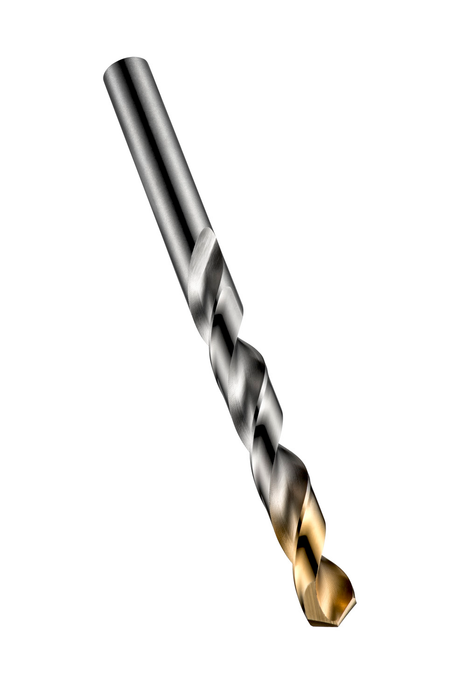

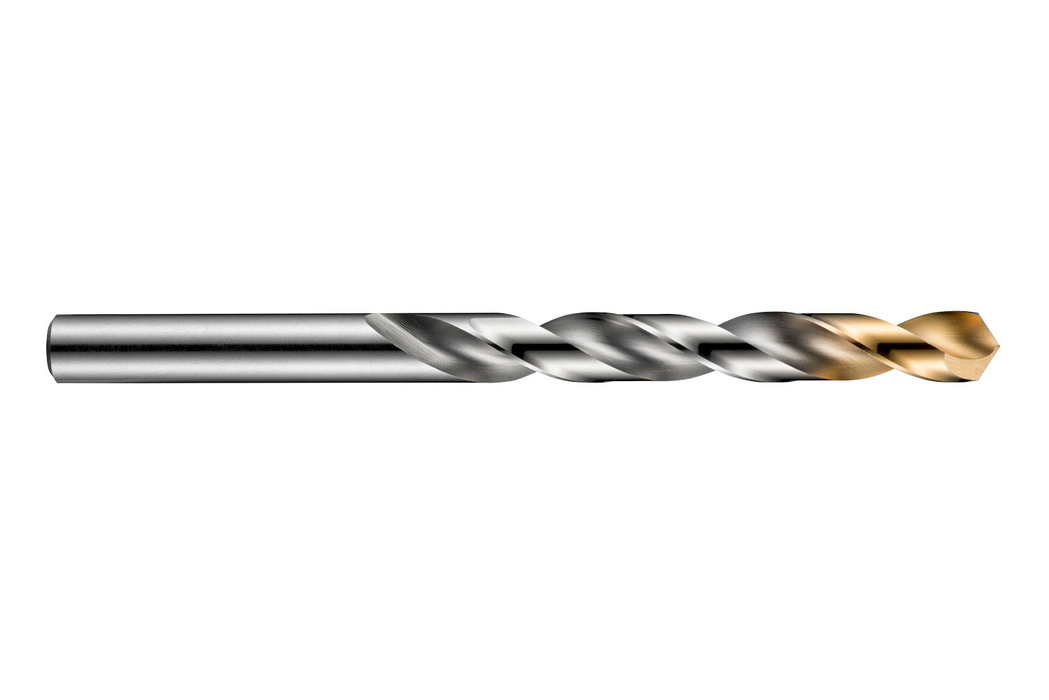

Jobber length drill with straight shank, diameter 0.2344" (15/64) with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$6.39 - $6.39
$6.39
$6.39 - $6.39
$6.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2344

Cutting Diameter - mm (DC): 5.95

Drill Point Angle - deg: 118

Flute Length: 2.2441

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.6614

Connetion Diameter: 0.2343

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 15/64

Grade: Bright/TiN

EDP: 350942

EAN: 7320760350942

MFG Part Number: 5967394
