A00217/32

A00217/32

SKU DOR5967398
by Dormer Pramet
Primary Use: Possible Use:

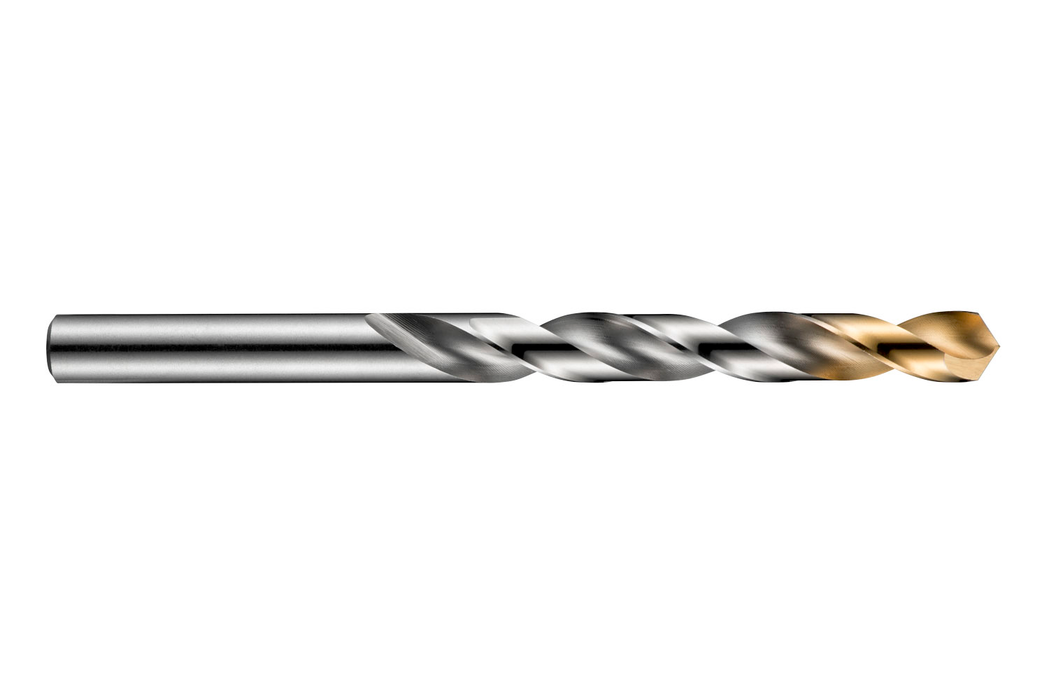

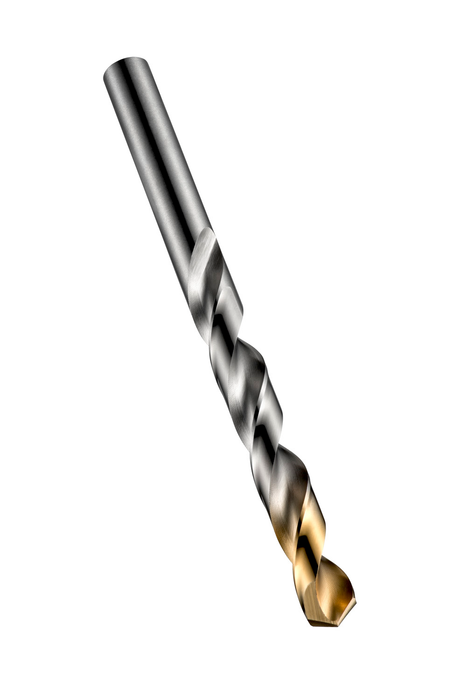

Jobber length drill with straight shank, diameter 0.5313" (17/32) with an overall length of 160mm and flute length of 108mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$28.31 - $28.31
$28.31
$28.31 - $28.31
$28.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.5313

Cutting Diameter - mm (DC): 13.49

Drill Point Angle - deg: 118

Flute Length: 4.252

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.2992

Connetion Diameter: 0.5311

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 17/32

Grade: Bright/TiN

EDP: 385319

EAN: 7320760385319

MFG Part Number: 5967398
