A100.3

A100.3

SKU DOR5967603
by Dormer Pramet
Primary Use: Possible Use:

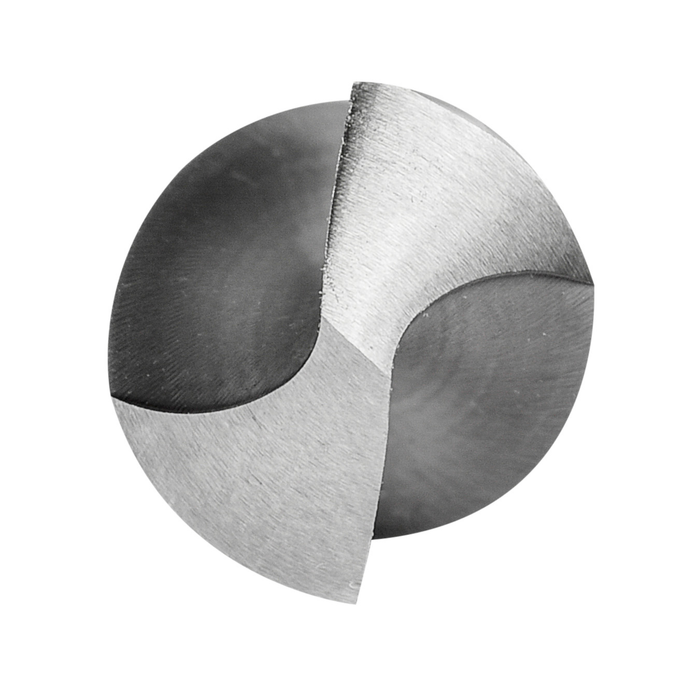

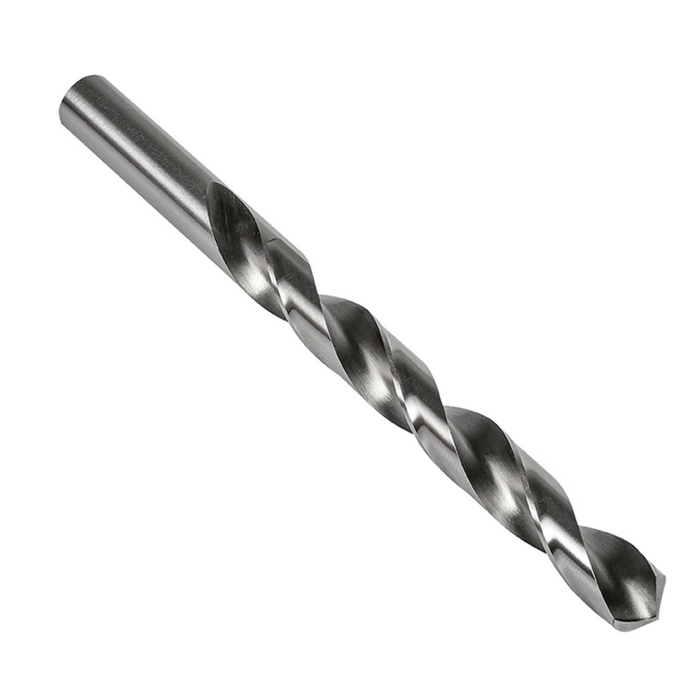

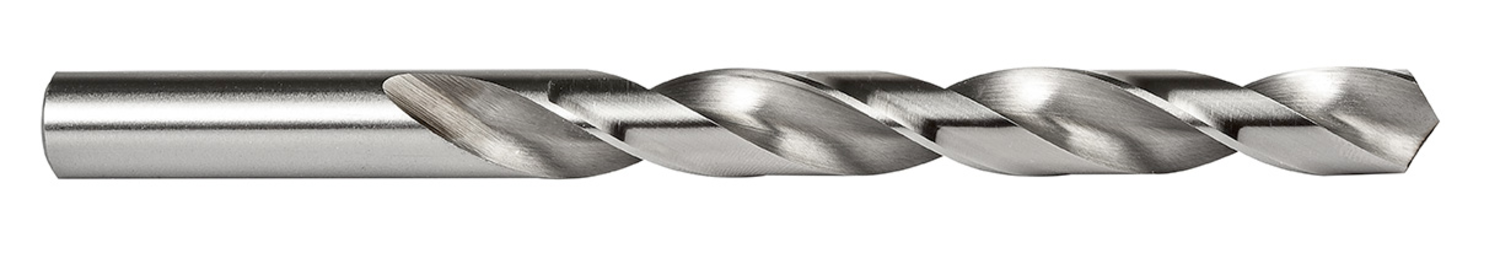

Jobber length drill with straight shank, diameter 0.3mm with an overall length of 19mm and flute length of 3mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$6.17 - $6.17
$6.17
$6.17 - $6.17
$6.17
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0118

Cutting Diameter - mm (DC): 0.3

Drill Point Angle - deg: 118

Flute Length: 0.1181

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 0.748

Connetion Diameter: 0.0118

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 45

EAN: 7320760000045

MFG Part Number: 5967603
