A11022.0

A11022.0

SKU DOR5967669
by Dormer Pramet
Primary Use: Possible Use:

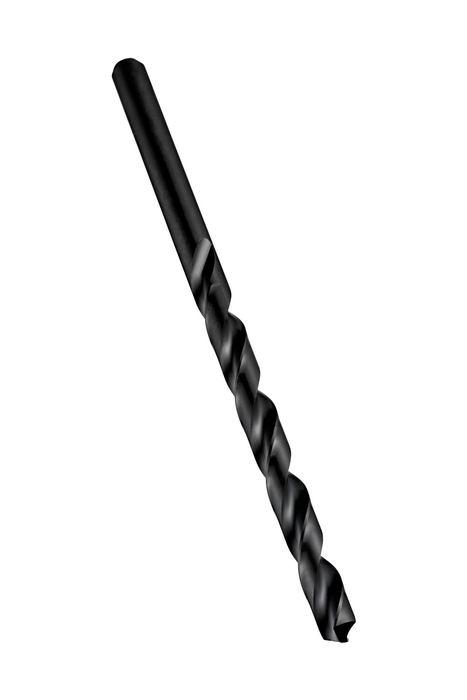

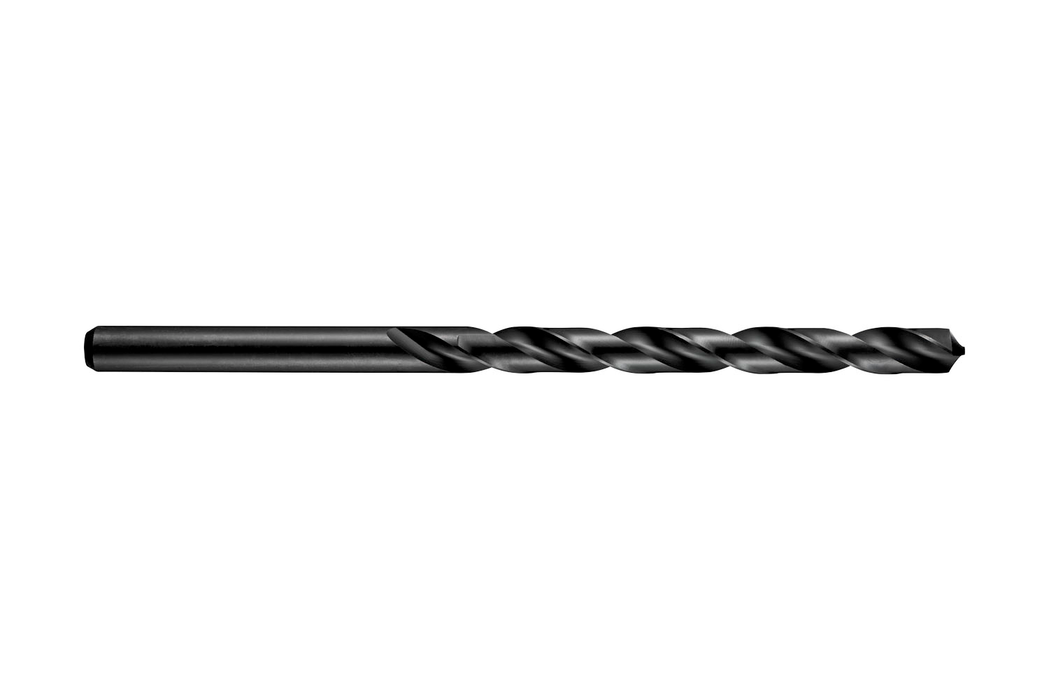

Long series drill with straight shank, diameter 22mm with an overall length of 268mm and flute length of 176mm according to DIN 340 standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$148.39 - $148.39
$148.39
$148.39 - $148.39
$148.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

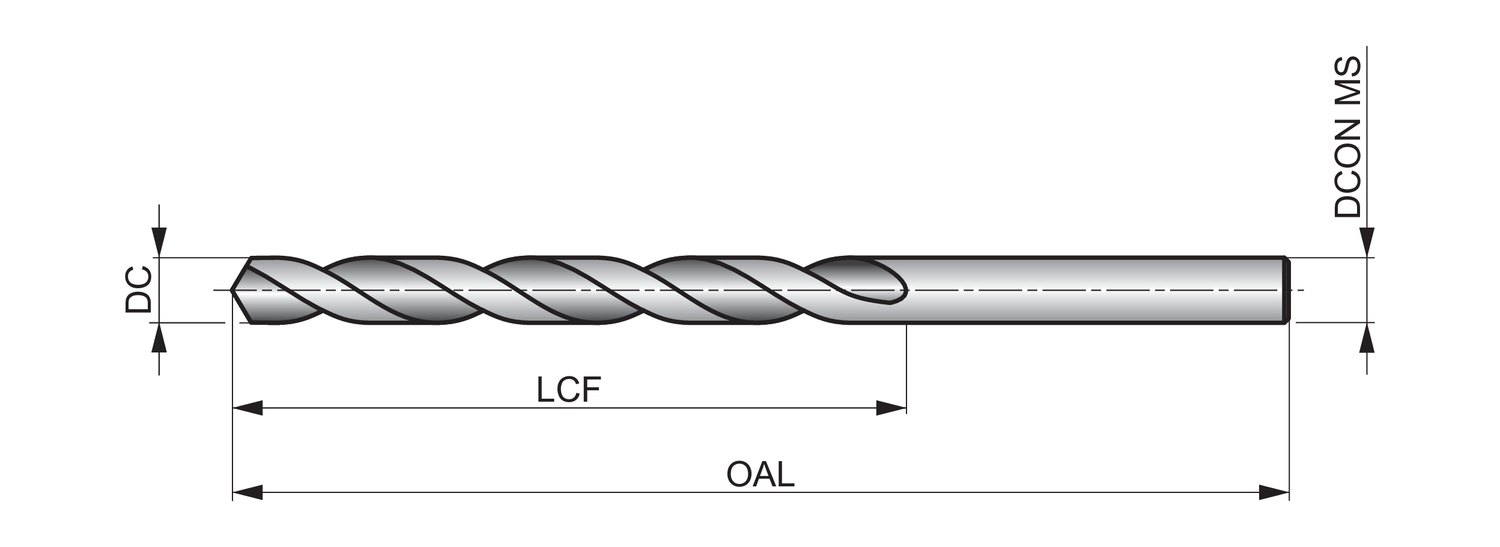

Material: HSS

Cutting Diameter - in (DC): 0.8661

Cutting Diameter - mm (DC): 22.0

Drill Point Angle - deg: 118

Flute Length: 6.9291

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 10.5512

Connetion Diameter: 0.8661

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 10891

EAN: 7320760010891

MFG Part Number: 5967669
