A1103.1

A1103.1

SKU DOR5967678
by Dormer Pramet
Primary Use: Possible Use:

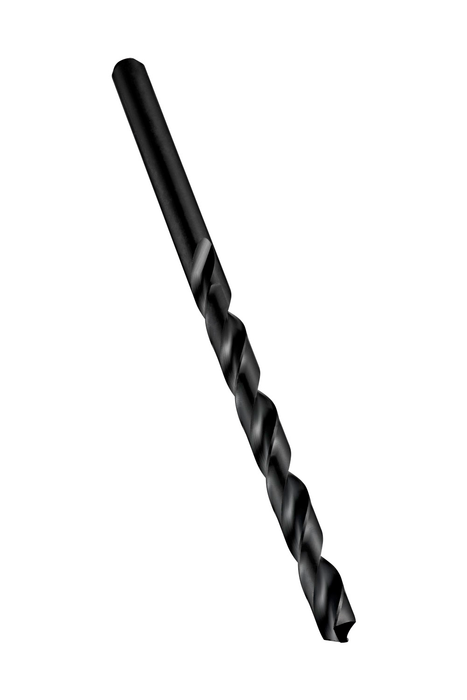

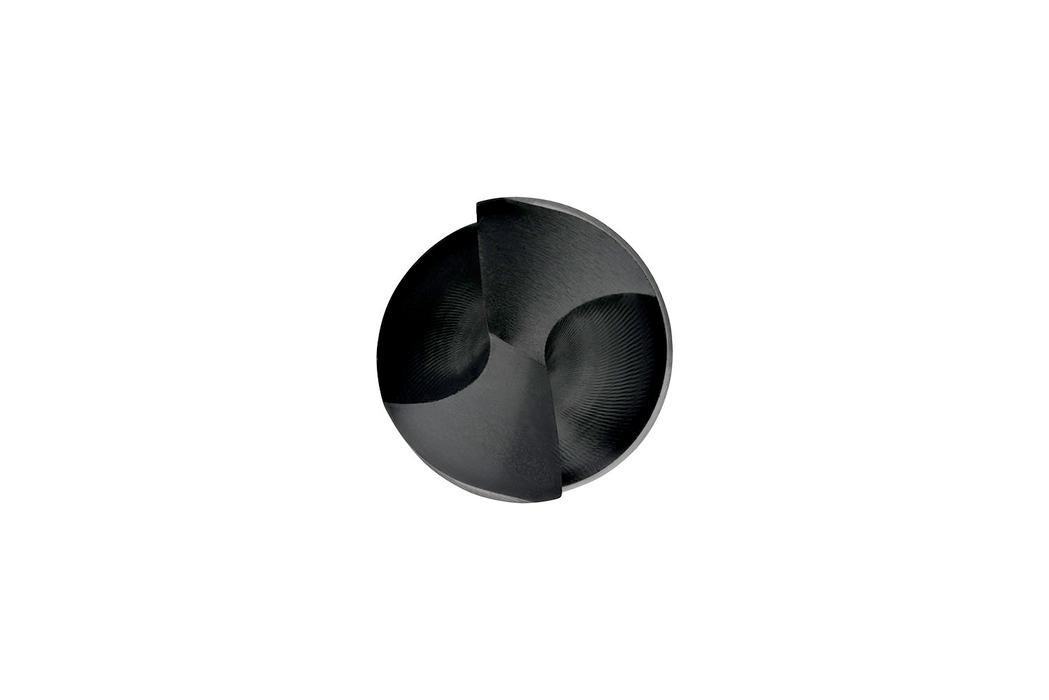

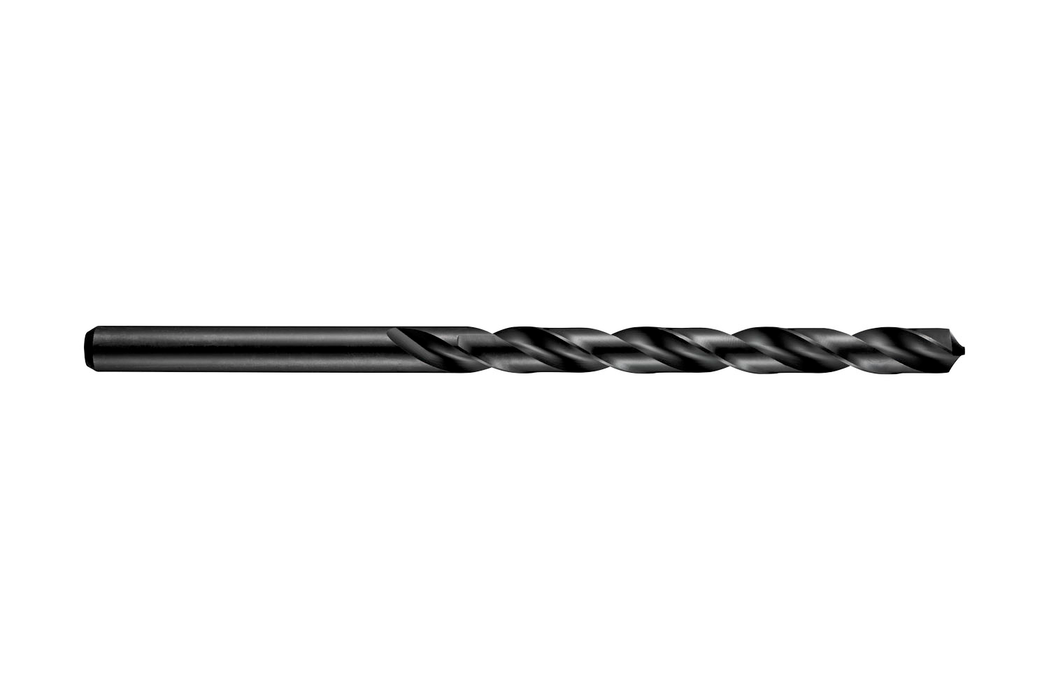

Long series drill with straight shank, diameter 3.1mm with an overall length of 106mm and flute length of 69mm according to DIN 340 standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.31 - $13.31
$13.31
$13.31 - $13.31
$13.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

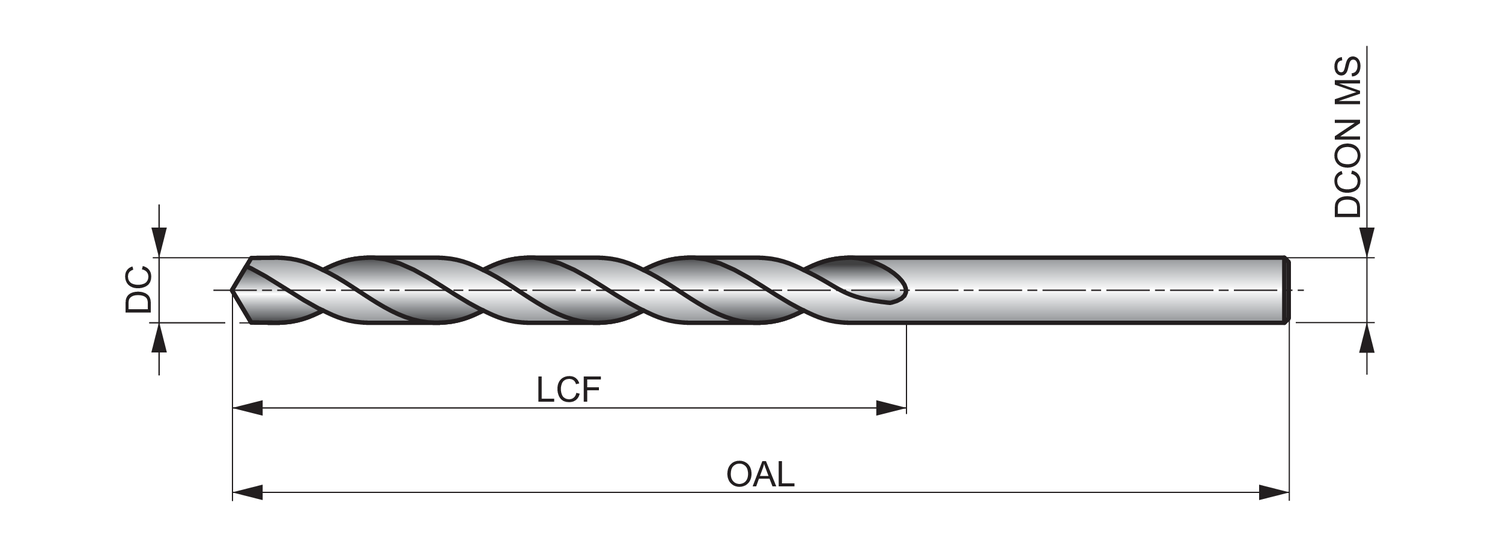

Cutting Diameter - in (DC): 0.122

Cutting Diameter - mm (DC): 3.1

Drill Point Angle - deg: 118

Flute Length: 2.7165

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 4.1732

Connetion Diameter: 0.122

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 11034

EAN: 7320760011034

MFG Part Number: 5967678
