A1103.9

A1103.9

SKU DOR5967726
by Dormer Pramet
Primary Use: Possible Use:

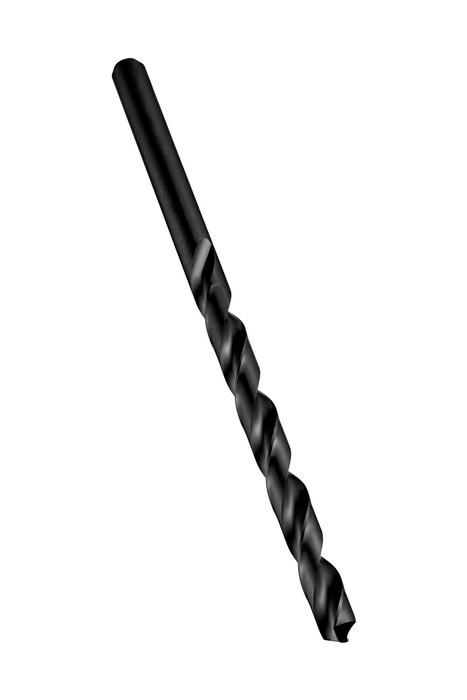

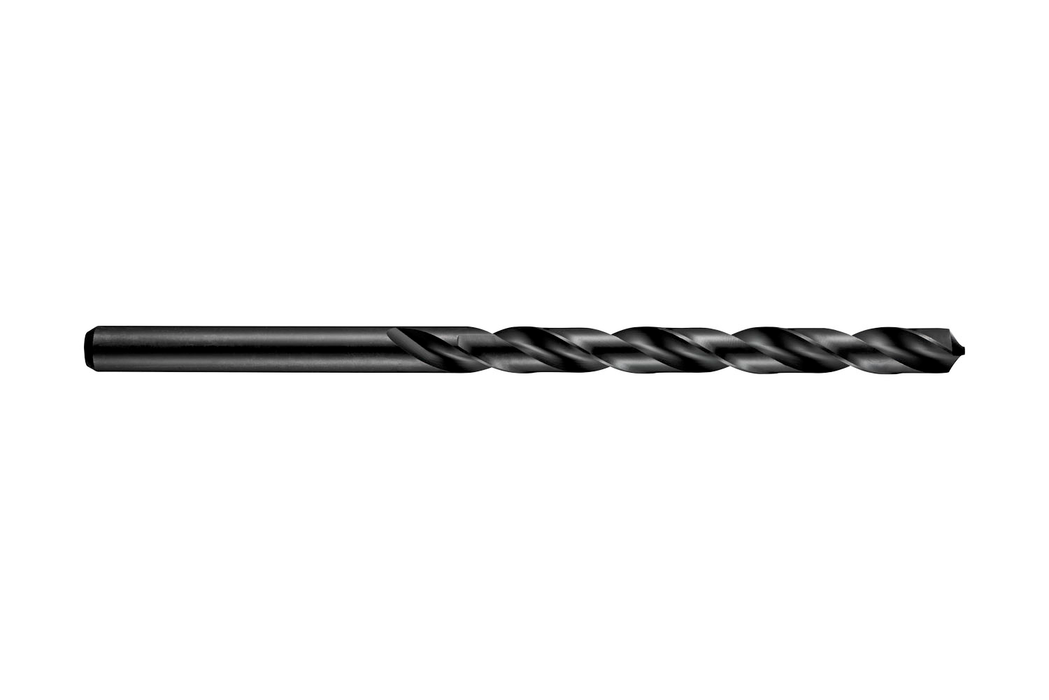

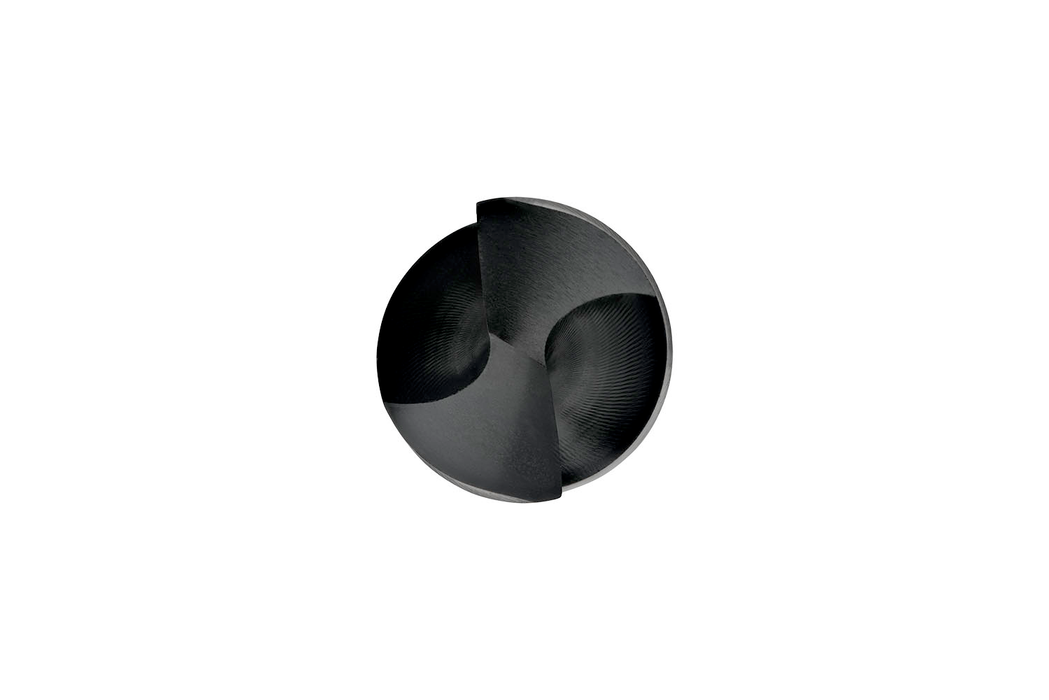

Long series drill with straight shank, diameter 3.9mm with an overall length of 119mm and flute length of 78mm according to DIN 340 standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.39 - $15.39
$15.39
$15.39 - $15.39
$15.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

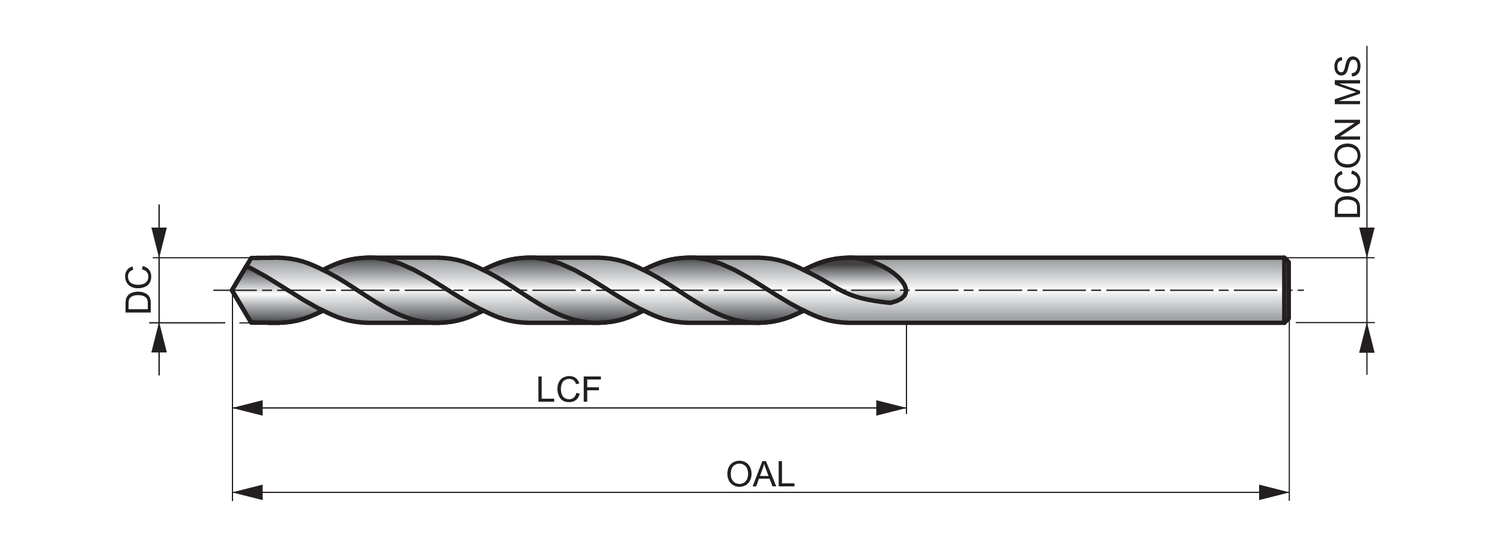

Material: HSS

Cutting Diameter - in (DC): 0.1535

Cutting Diameter - mm (DC): 3.9

Drill Point Angle - deg: 118

Flute Length: 3.0709

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 4.685

Connetion Diameter: 0.1535

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 11133

EAN: 7320760011133

MFG Part Number: 5967726
