A1103/32

A1103/32

SKU DOR5967732
by Dormer Pramet
Primary Use: Possible Use:

Long series drill with straight shank, diameter 0.0938" (3/32) with an overall length of 95mm and flute length of 62mm according to DIN 340 standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$8.09 - $8.09
$8.09
$8.09 - $8.09
$8.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

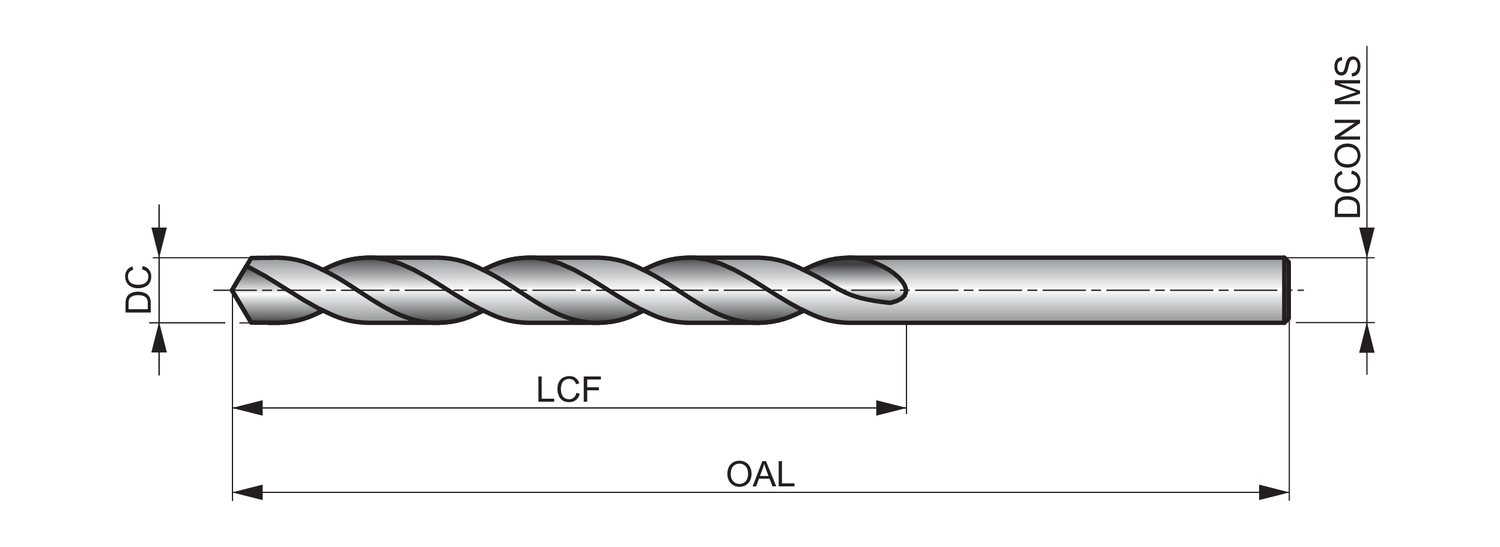

Material: HSS

Cutting Diameter - in (DC): 0.0938

Cutting Diameter - mm (DC): 2.38

Drill Point Angle - deg: 118

Flute Length: 2.4409

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 3.7402

Connetion Diameter: 0.0937

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/32

Grade: Steam Tempered

EDP: 11171

EAN: 7320760011171

MFG Part Number: 5967732
