A11017/64

A11017/64

SKU DOR5967903
by Dormer Pramet
Primary Use: Possible Use:

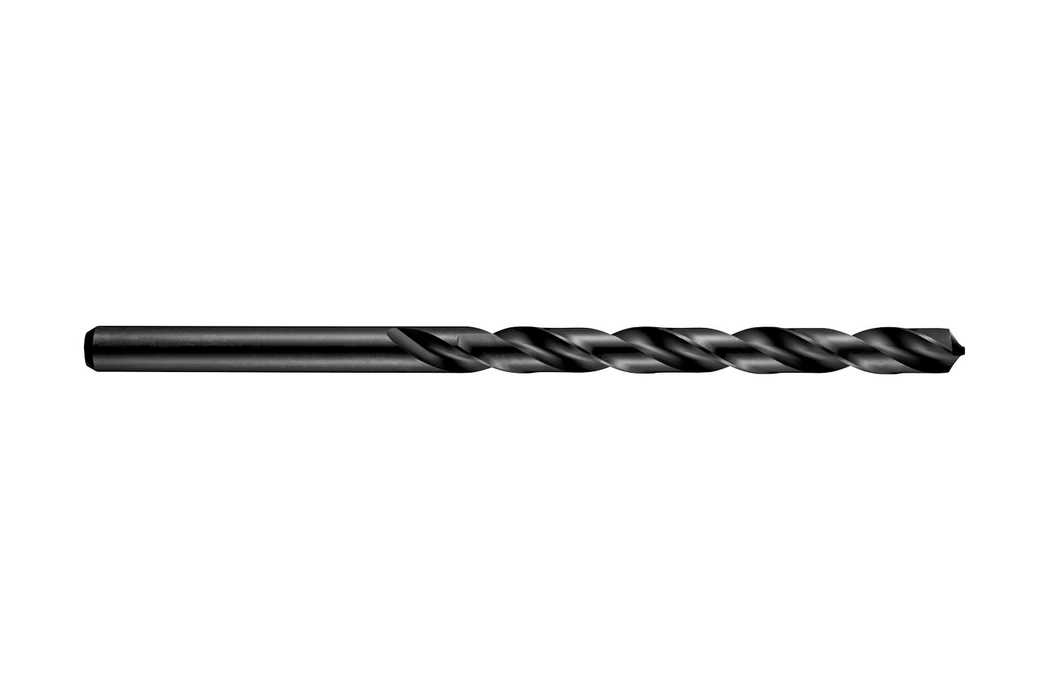

Long series drill with straight shank, diameter 0.2656" (17/64) with an overall length of 156mm and flute length of 102mm according to DIN 340 standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.99 - $16.99
$16.99
$16.99 - $16.99
$16.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

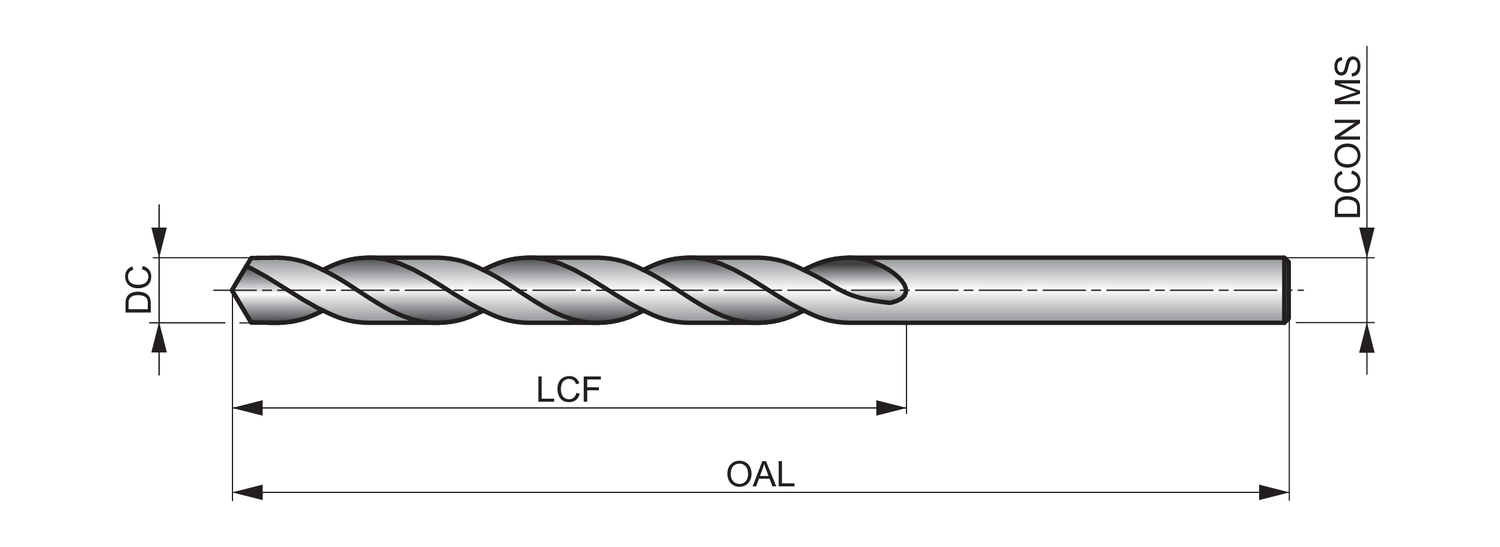

Material: HSS

Cutting Diameter - in (DC): 0.2656

Cutting Diameter - mm (DC): 6.75

Drill Point Angle - deg: 118

Flute Length: 4.0157

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 6.1417

Connetion Diameter: 0.2657

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 17/64

Grade: Steam Tempered

EDP: 10631

EAN: 7320760010631

MFG Part Number: 5967903
