A12011/32
A12011/32
A12011/32

A12011/32

SKU DOR5967930
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.73 CAD - $16.73 CAD
$16.73 CAD
$16.73 CAD - $16.73 CAD
$16.73 CAD

Sold in packs of: 10

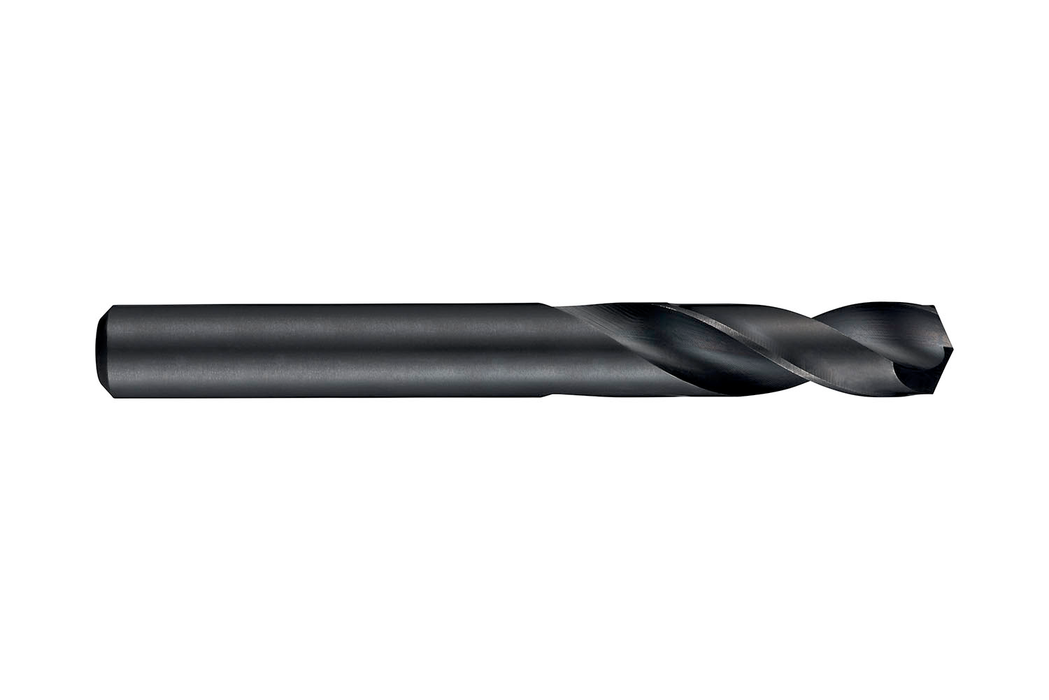

Stub length drill with straight shank, diameter 0.3438" (11/32) with an overall length of 84mm and flute length of 40mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12011/32
GradeSteam Tempered
Product Number5967930
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)3.3071"
Overall Length — mm (OAL)84.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3437"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number16572
EAN7320760016572
File Type Download
A12011/32 — 3D Model STP Download
A12011/32 — Line Drawing PDF Download
