SKU DOR5967942
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Sold in packs of: 10

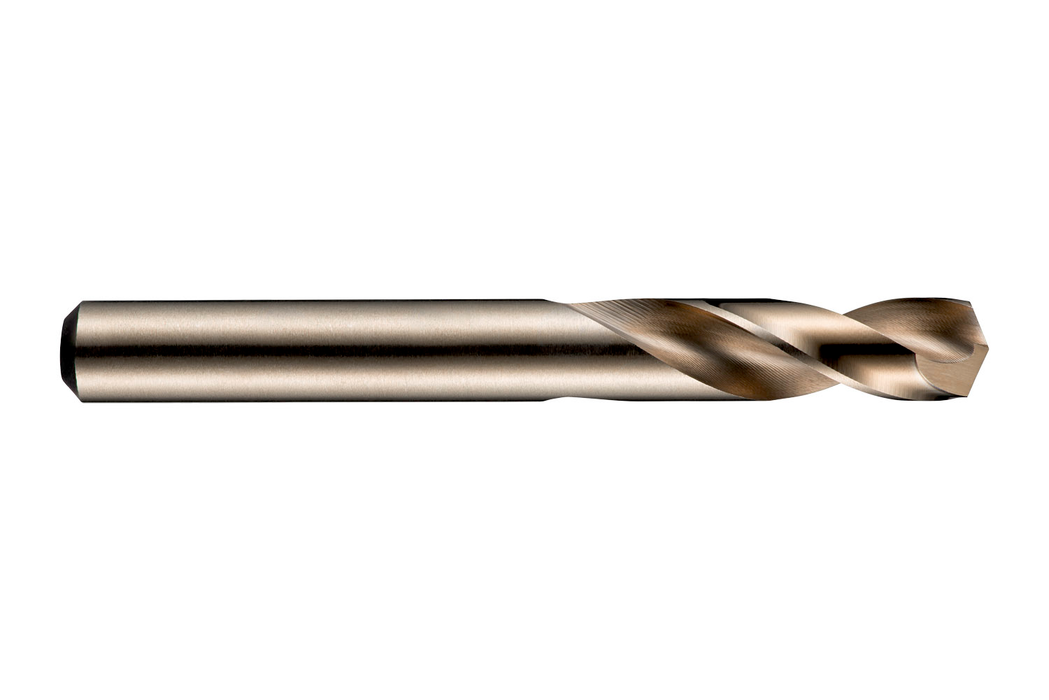

Stub length drill with straight shank, diameter 1mm with an overall length of 26mm and flute length of 6mm according to DIN 1897 standard with 118° conical point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1171.0
GradeBronze
Product Number5967942
Product FamilyA117
Dimensions
Cutting Diameter — in (DC)0.0394"
Cutting Diameter — mm (DC)1.0 mm
Overall Length — in (OAL)1.0236"
Overall Length — mm (OAL)26.0 mm
Flute Length — in (LCF)0.2362"
Flute Length — mm (LCF)6.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0394"
Connection Dia. — mm (DCON)1.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number15056
EAN7320760015056
File Type Download
A1171.0 — 3D Model STP Download
A1171.0 — Line Drawing PDF Download
