SKU DOR5967943
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.14 CAD - $9.14 CAD
$9.14 CAD
$9.14 CAD - $9.14 CAD
$9.14 CAD

Sold in packs of: 10

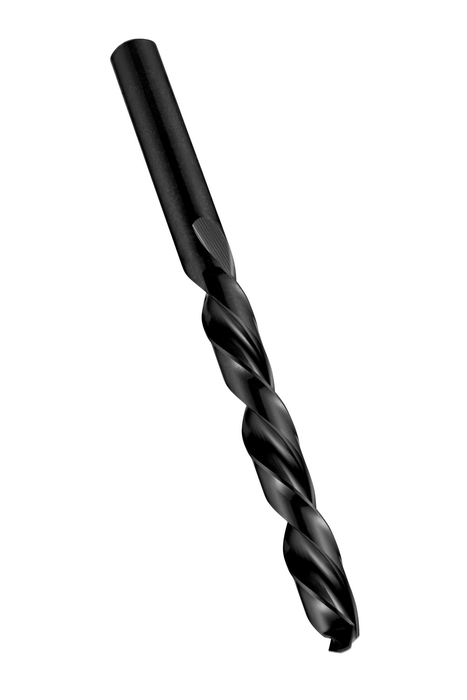

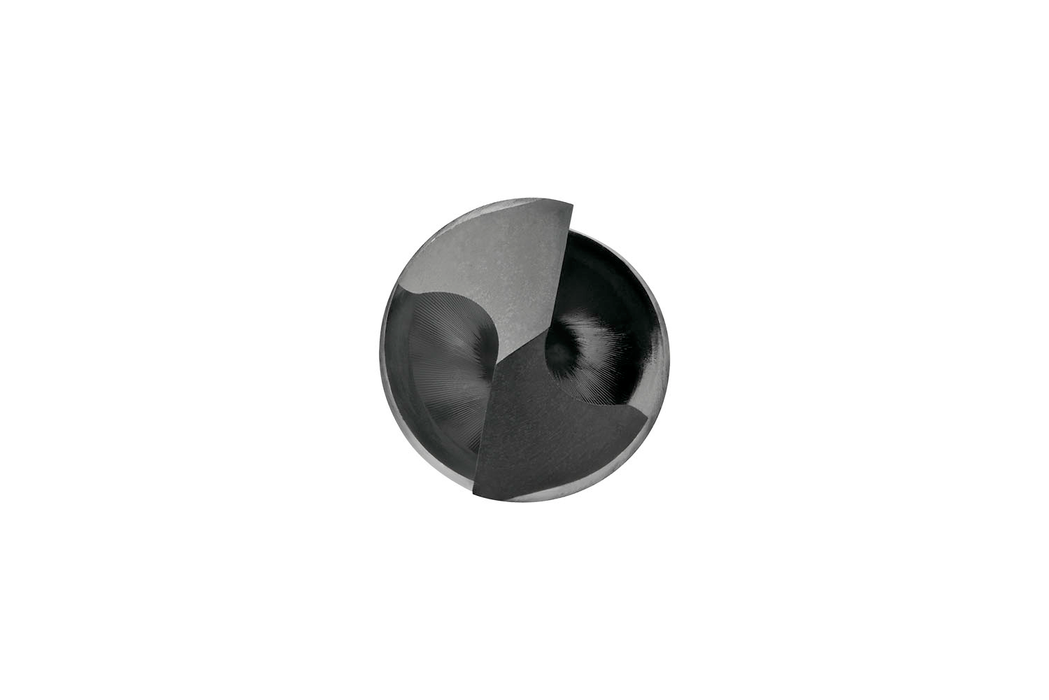

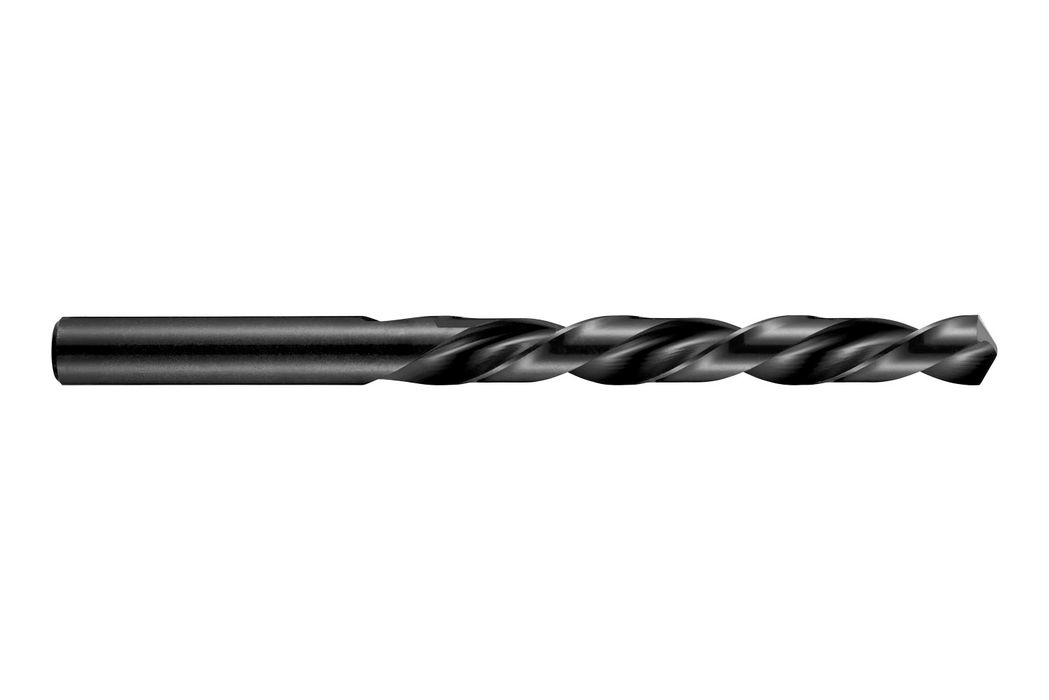

Jobber length left hand drill with straight shank, diameter 4.2mm with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1014.2
GradeSteam Tempered
Product Number5967943
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.1654"
Cutting Diameter — mm (DC)4.2 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1654"
Connection Dia. — mm (DCON)4.2 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolLeft
StandardDIN 338
Reference Numbers
EDP Number2964
EAN7320760002964
File Type Download
A1014.2 — 3D Model STP Download
A1014.2 — Line Drawing PDF Download
