A12018.5
A12018.5
A12018.5

A12018.5

SKU DOR5967989
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.69 CAD - $131.69 CAD
$131.69 CAD
$131.69 CAD - $131.69 CAD
$131.69 CAD

Sold in packs of: 1

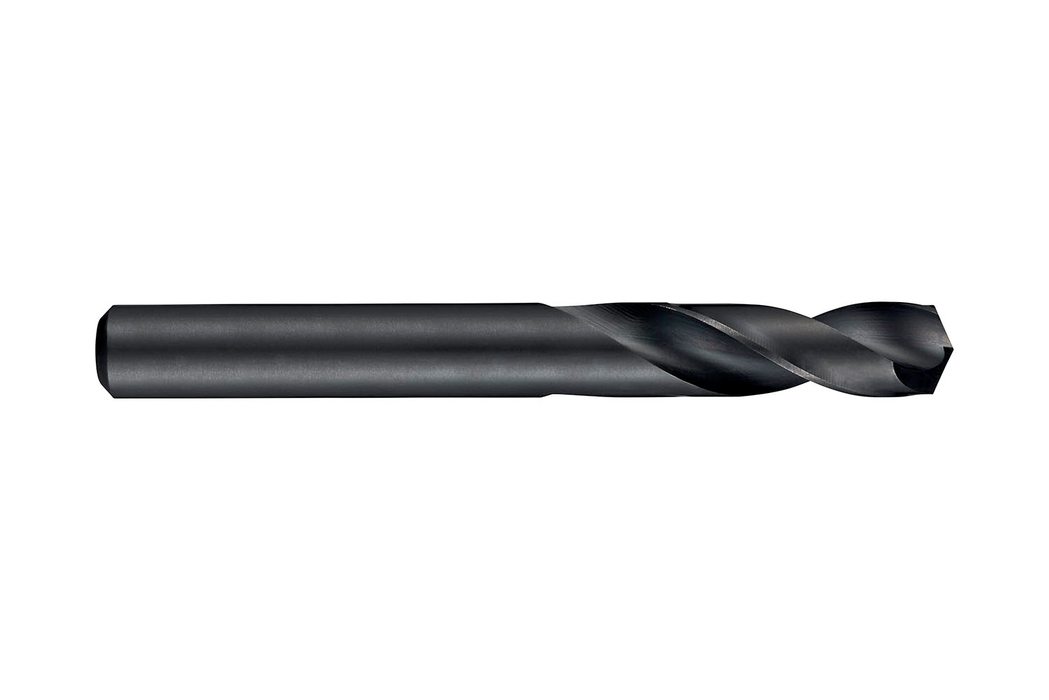

Stub length drill with straight shank, diameter 18.5mm with an overall length of 127mm and flute length of 64mm according to DIN 1897 standard with 118° conical point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12018.5
GradeSteam Tempered
Product Number5967989
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.7283"
Cutting Diameter — mm (DC)18.5 mm
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)2.5197"
Flute Length — mm (LCF)64.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7283"
Connection Dia. — mm (DCON)18.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number16916
EAN7320760016916
File Type Download
A12018.5 — 3D Model STP Download
A12018.5 — Line Drawing PDF Download
