A1009/16

A1009/16

SKU DOR5968009
by Dormer Pramet
Primary Use: Possible Use:

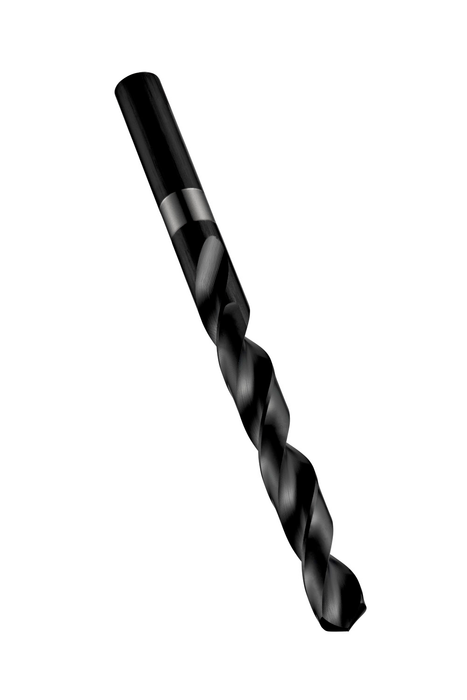

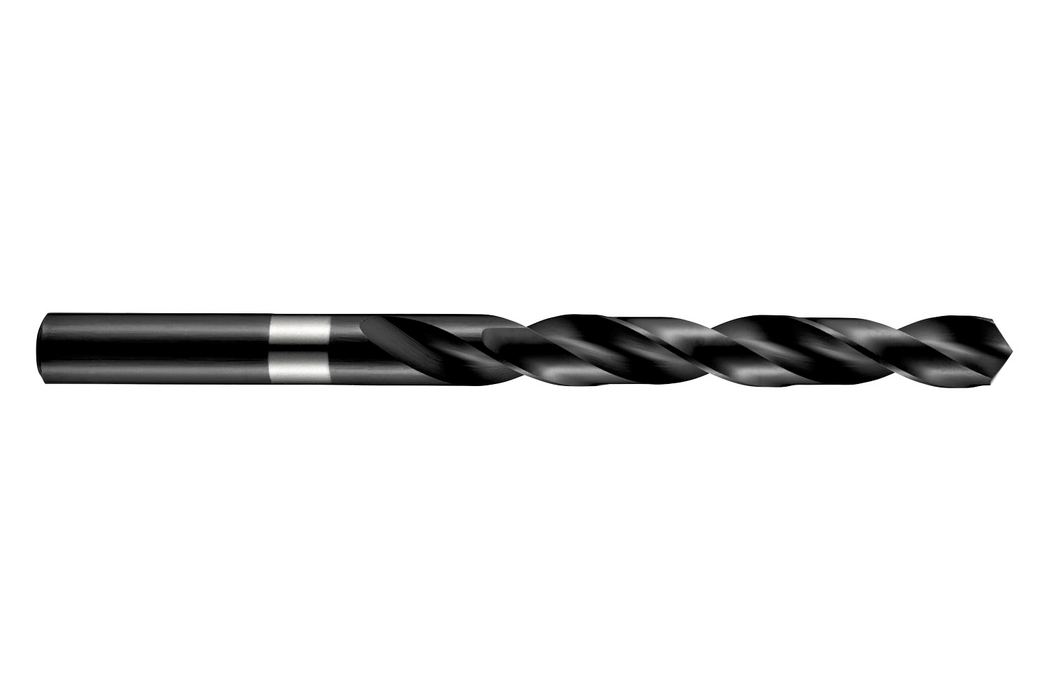

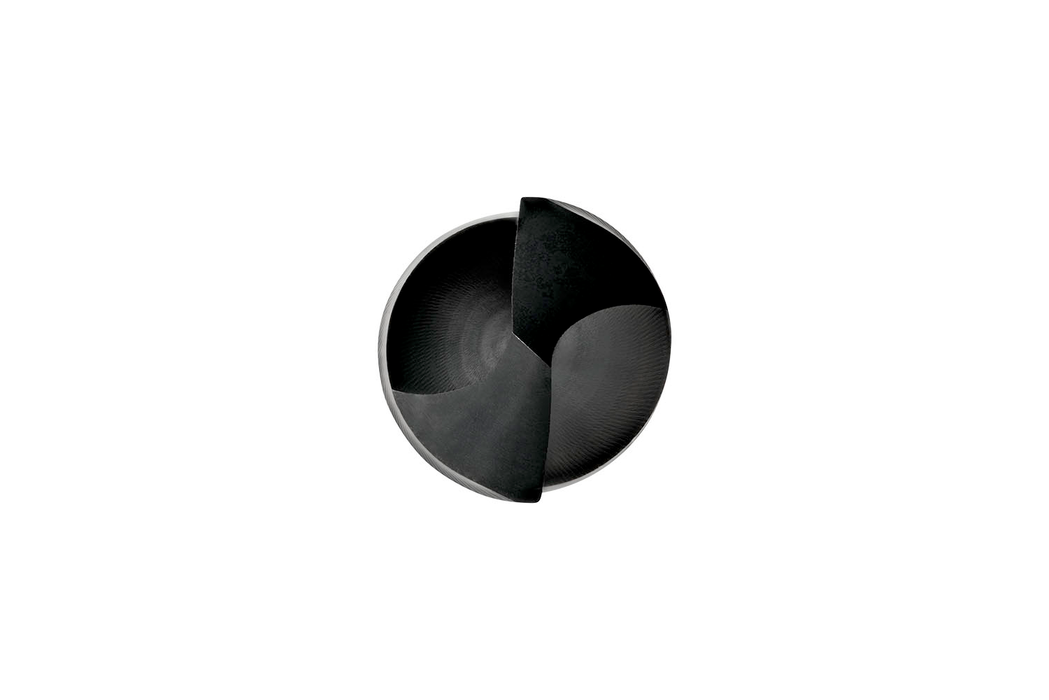

Jobber length drill with straight shank, diameter 0.5625" (9/16) with an overall length of 169mm and flute length of 114mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$33.21 - $33.21
$33.21
$33.21 - $33.21
$33.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.5625

Cutting Diameter - mm (DC): 14.29

Drill Point Angle - deg: 118

Flute Length: 4.4882

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.6535

Connetion Diameter: 0.5626

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/16

Grade: Steam Tempered

EDP: 2636

EAN: 7320760002636

MFG Part Number: 5968009
