A1202.5

A1202.5

SKU DOR5968020
by Dormer Pramet
Primary Use: Possible Use:

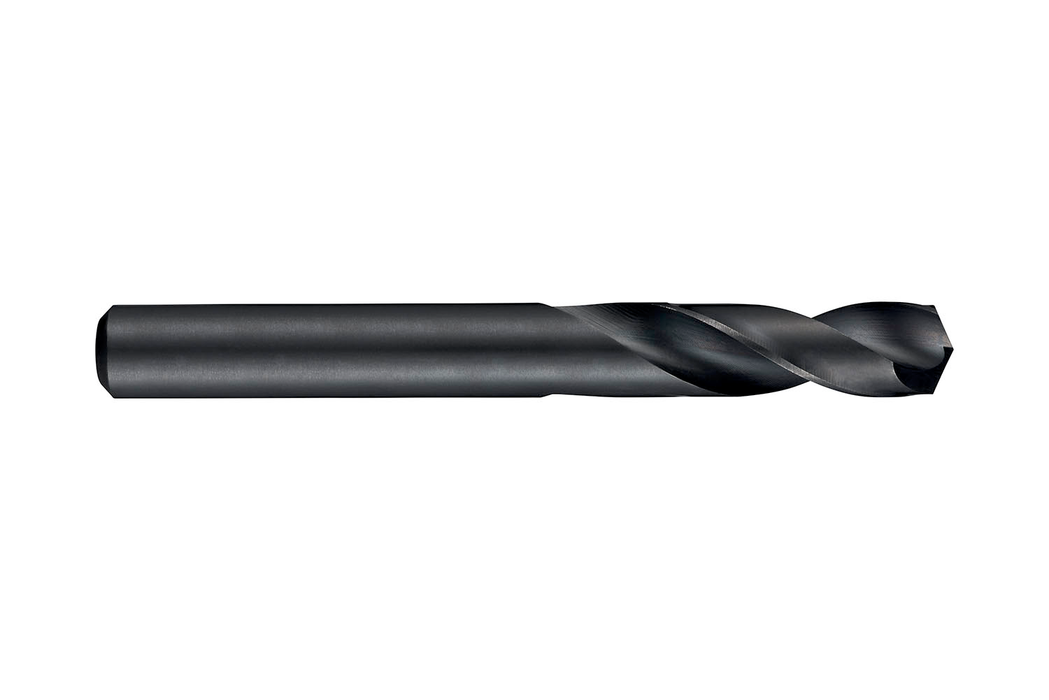

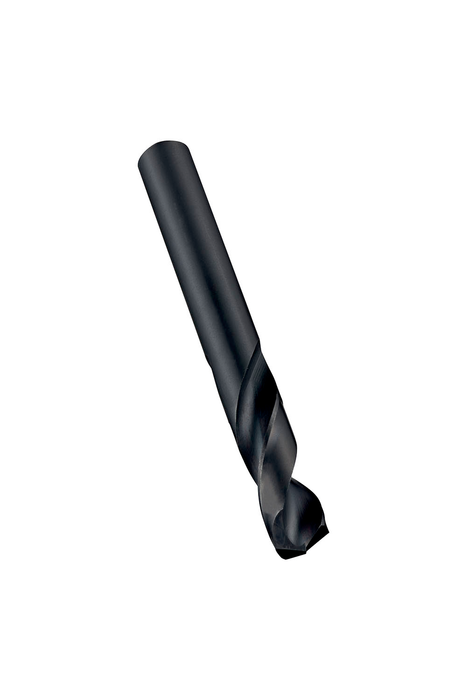

Stub length drill with straight shank, diameter 2.5mm with an overall length of 43mm and flute length of 14mm according to DIN 1897 standard with 118° conical point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.20 - $3.20
$3.20
$3.20 - $3.20
$3.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0984

Cutting Diameter - mm (DC): 2.5

Drill Point Angle - deg: 118

Flute Length: 0.5512

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.6929

Connetion Diameter: 0.0984

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 17029

EAN: 7320760017029

MFG Part Number: 5968020
