A12020.0

A12020.0

SKU DOR5968041
by Dormer Pramet
Primary Use: Possible Use:

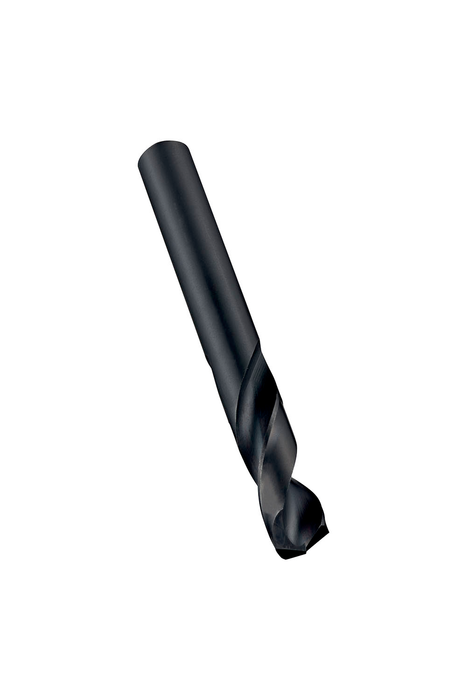

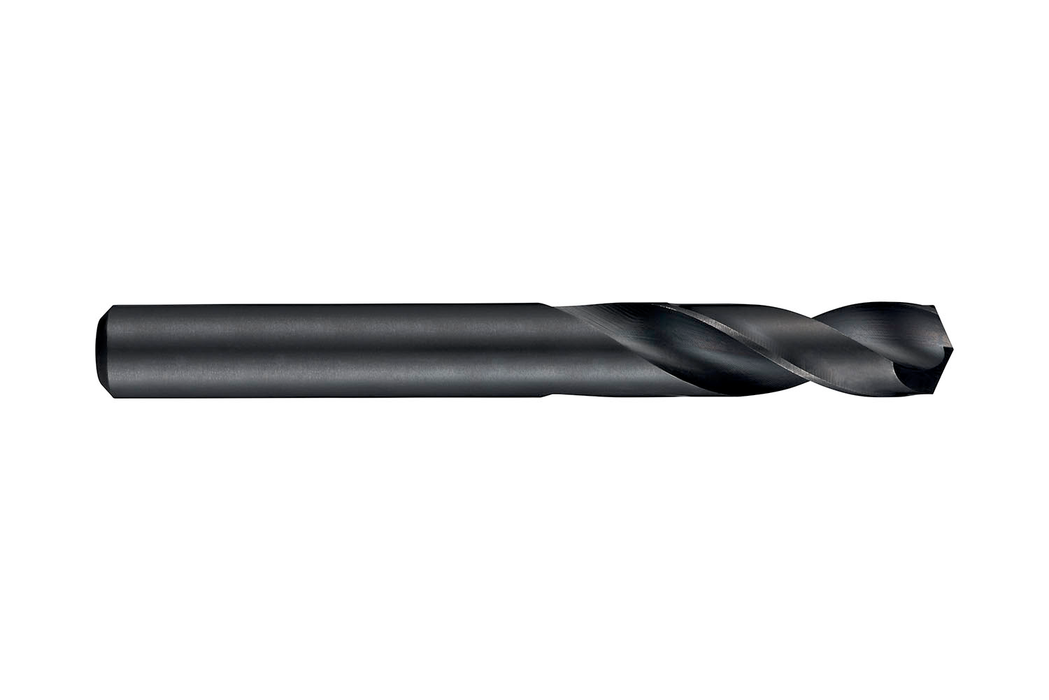

Stub length drill with straight shank, diameter 20mm with an overall length of 131mm and flute length of 66mm according to DIN 1897 standard with 118° conical point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$136.46 - $136.46
$136.46
$136.46 - $136.46
$136.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Drill Point Angle - deg: 118

Flute Length: 2.5984

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.1575

Connetion Diameter: 0.7874

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 17081

EAN: 7320760017081

MFG Part Number: 5968041
