A12020.5
A12020.5
A12020.5

A12020.5

SKU DOR5968046
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$158.41 CAD - $158.41 CAD
$158.41 CAD
$158.41 CAD - $158.41 CAD
$158.41 CAD

Sold in packs of: 1

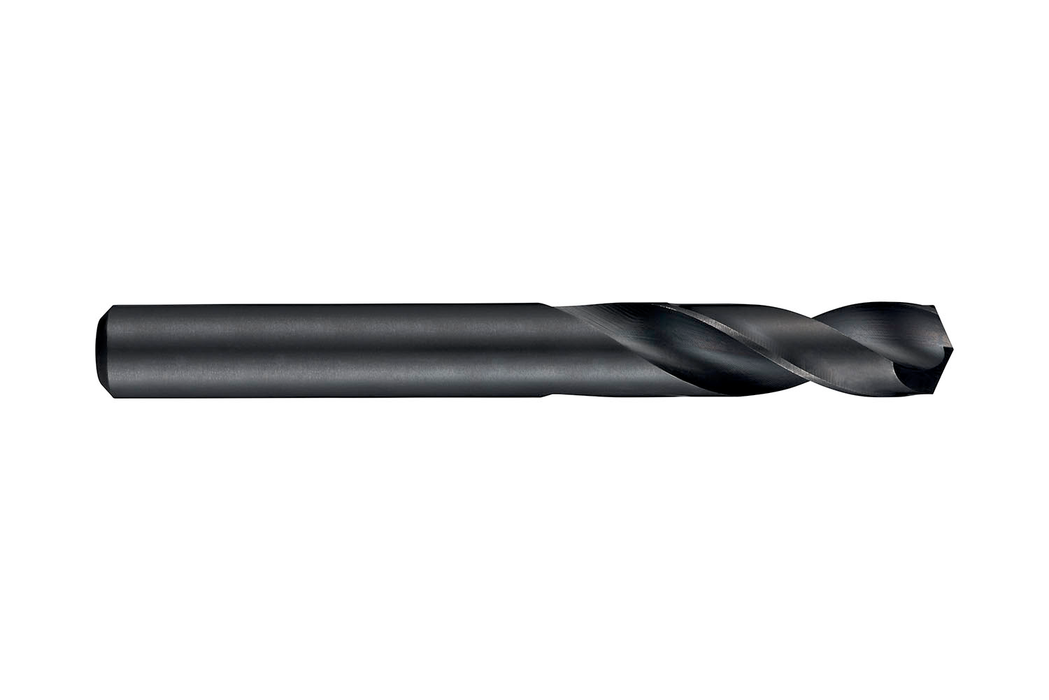

Stub length drill with straight shank, diameter 20.5mm with an overall length of 136mm and flute length of 68mm according to DIN 1897 standard with 118° conical point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12020.5
GradeSteam Tempered
Product Number5968046
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.8071"
Cutting Diameter — mm (DC)20.5 mm
Overall Length — in (OAL)5.3543"
Overall Length — mm (OAL)136.0 mm
Flute Length — in (LCF)2.6772"
Flute Length — mm (LCF)68.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.8071"
Connection Dia. — mm (DCON)20.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number17098
EAN7320760017098
File Type Download
A12020.5 — 3D Model STP Download
A12020.5 — Line Drawing PDF Download
