SKU DOR5968052
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.83 CAD - $8.83 CAD
$8.83 CAD
$8.83 CAD - $8.83 CAD
$8.83 CAD

Sold in packs of: 10

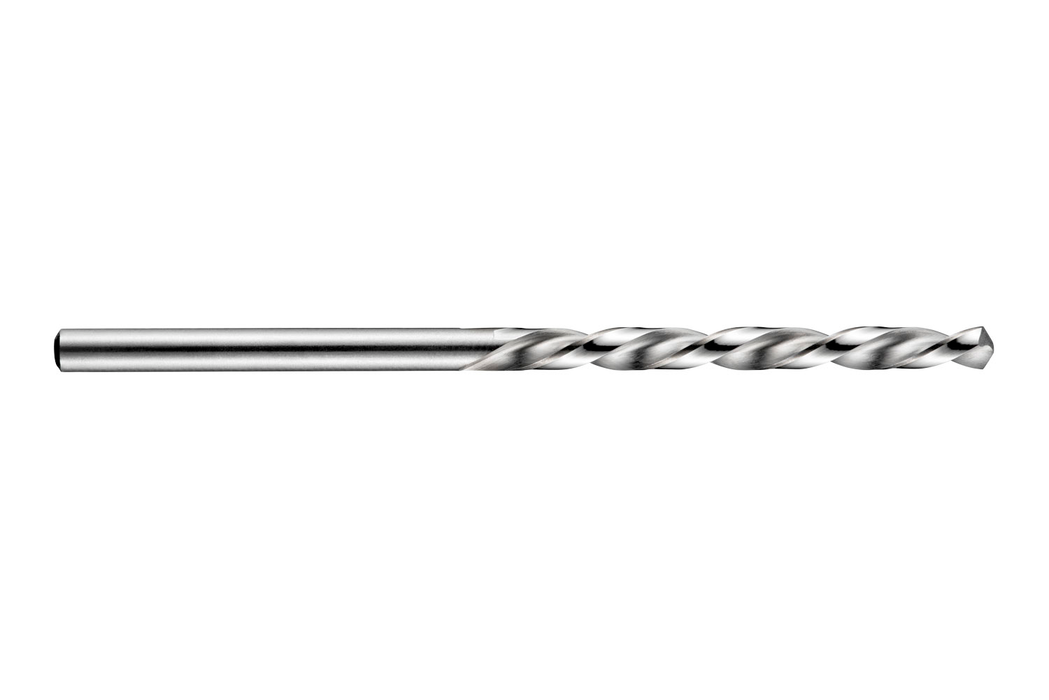

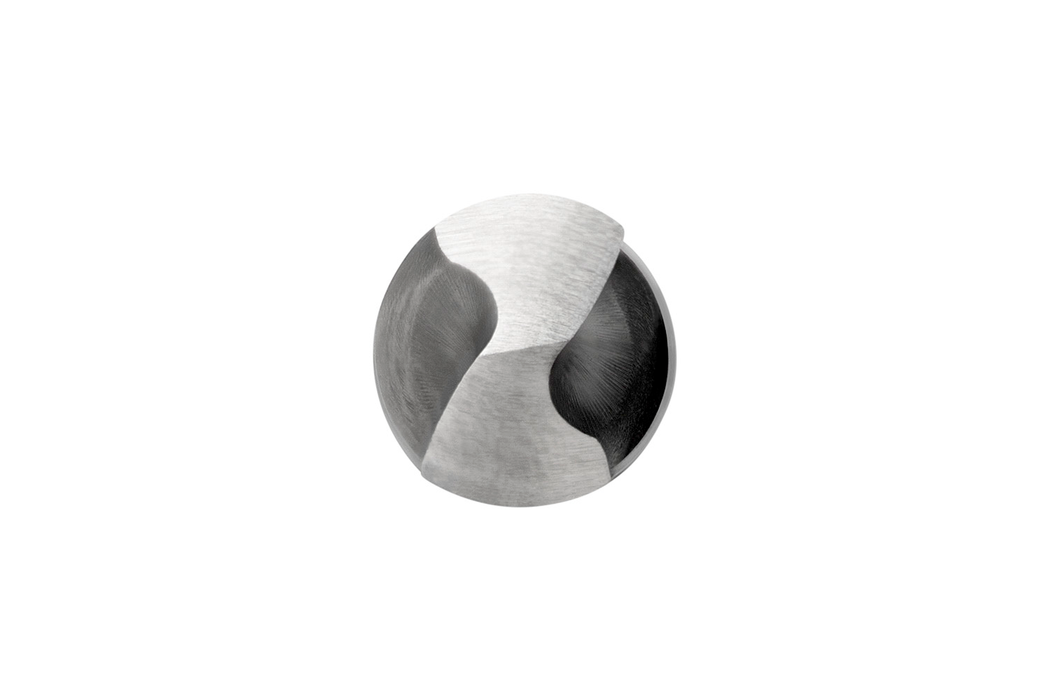

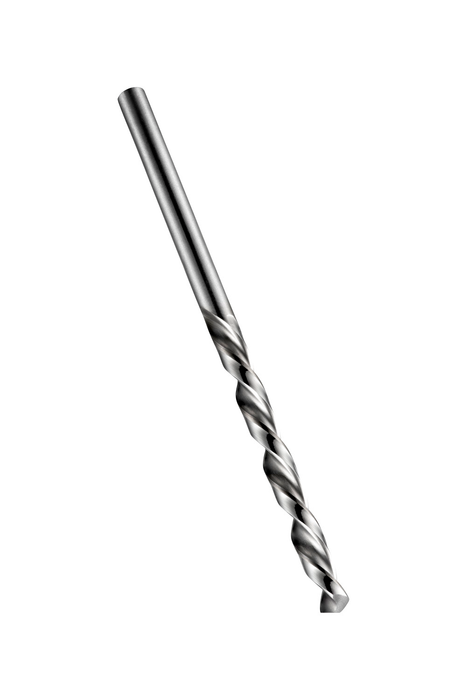

Jobber length left hand drill with straight shank, diameter 1.7mm with an overall length of 43mm and flute length of 20mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1011.7
GradeBright
Product Number5968052
Product FamilyA101
Dimensions
Cutting Diameter — in (DC)0.0669"
Cutting Diameter — mm (DC)1.7 mm
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0669"
Connection Dia. — mm (DCON)1.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolLeft
StandardDIN 338
Reference Numbers
EDP Number2742
EAN7320760002742
File Type Download
A1011.7 — 3D Model STP Download
A1011.7 — Line Drawing PDF Download
