SKU DOR5968079
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.20 CAD - $3.20 CAD
$3.20 CAD
$3.20 CAD - $3.20 CAD
$3.20 CAD

Sold in packs of: 10

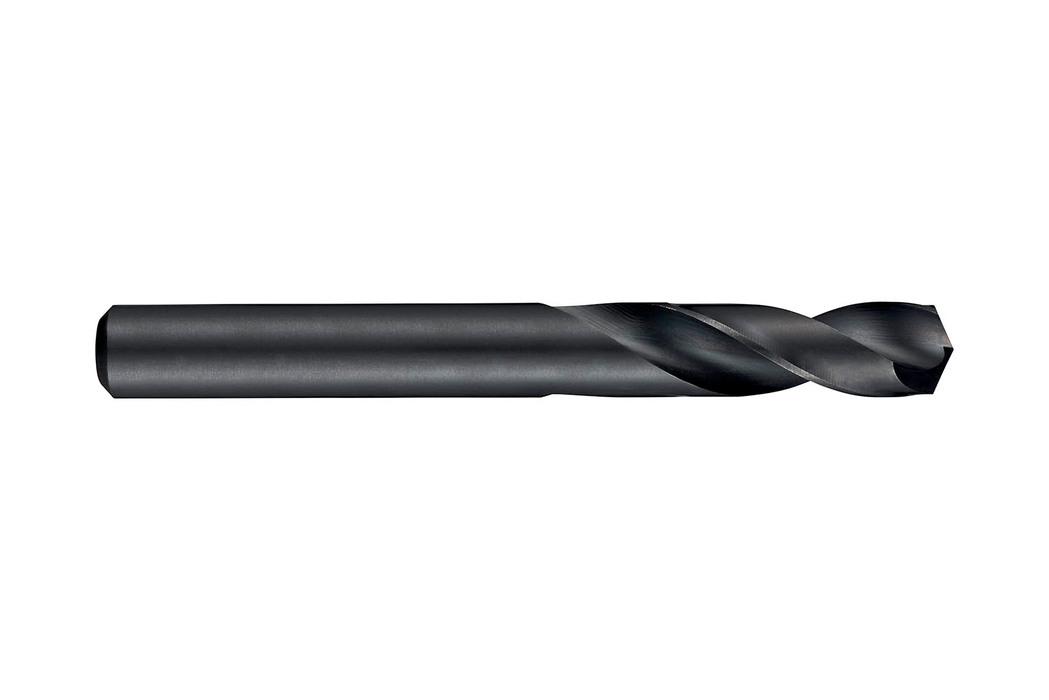

Stub length drill with straight shank, diameter 3mm with an overall length of 46mm and flute length of 16mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1203.0
GradeSteam Tempered
Product Number5968079
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.811"
Overall Length — mm (OAL)46.0 mm
Flute Length — in (LCF)0.6299"
Flute Length — mm (LCF)16.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number17265
EAN7320760017265
File Type Download
A1203.0 — 3D Model STP Download
A1203.0 — Line Drawing PDF Download
