A1203.4
A1203.4
A1203.4

A1203.4

SKU DOR5968108
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.50 CAD - $3.50 CAD
$3.50 CAD
$3.50 CAD - $3.50 CAD
$3.50 CAD

Sold in packs of: 10

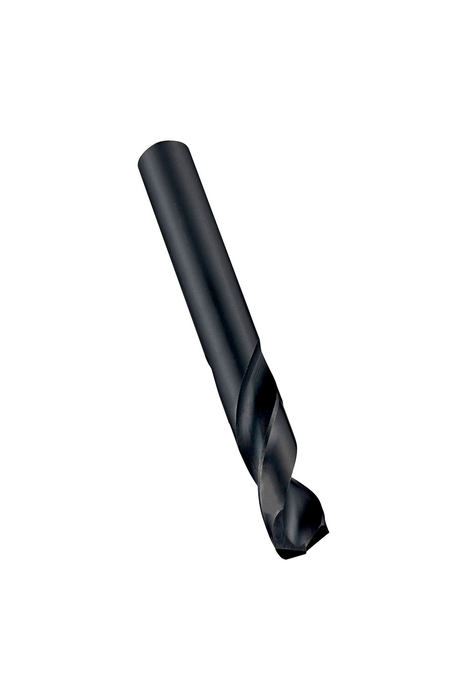

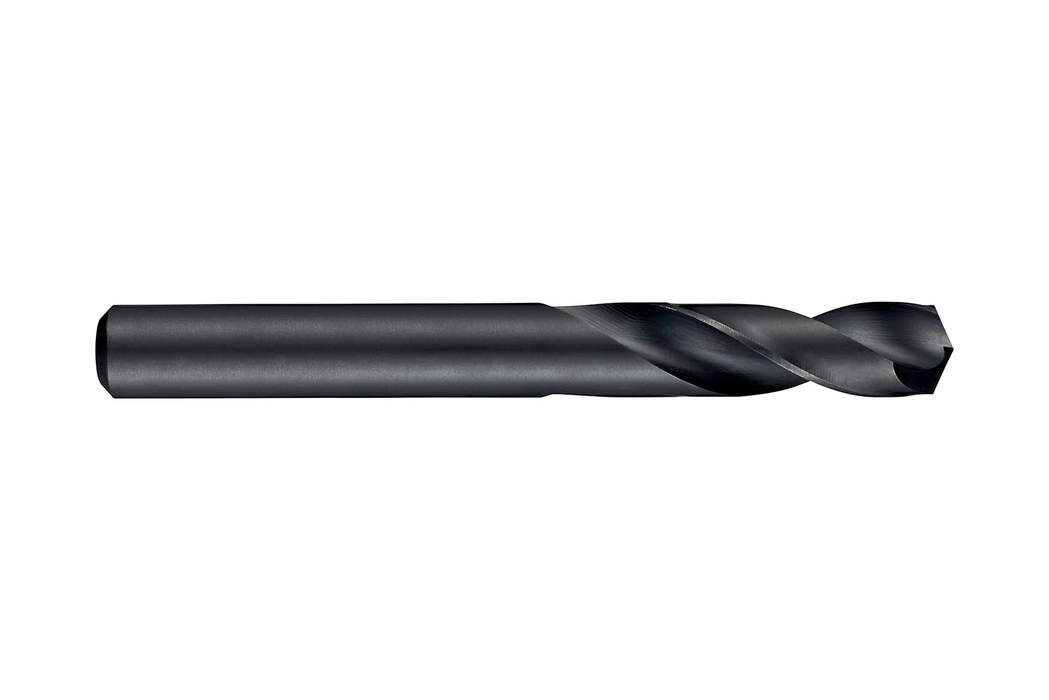

Stub length drill with straight shank, diameter 3.4mm with an overall length of 52mm and flute length of 20mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1203.4
GradeSteam Tempered
Product Number5968108
Product FamilyA120

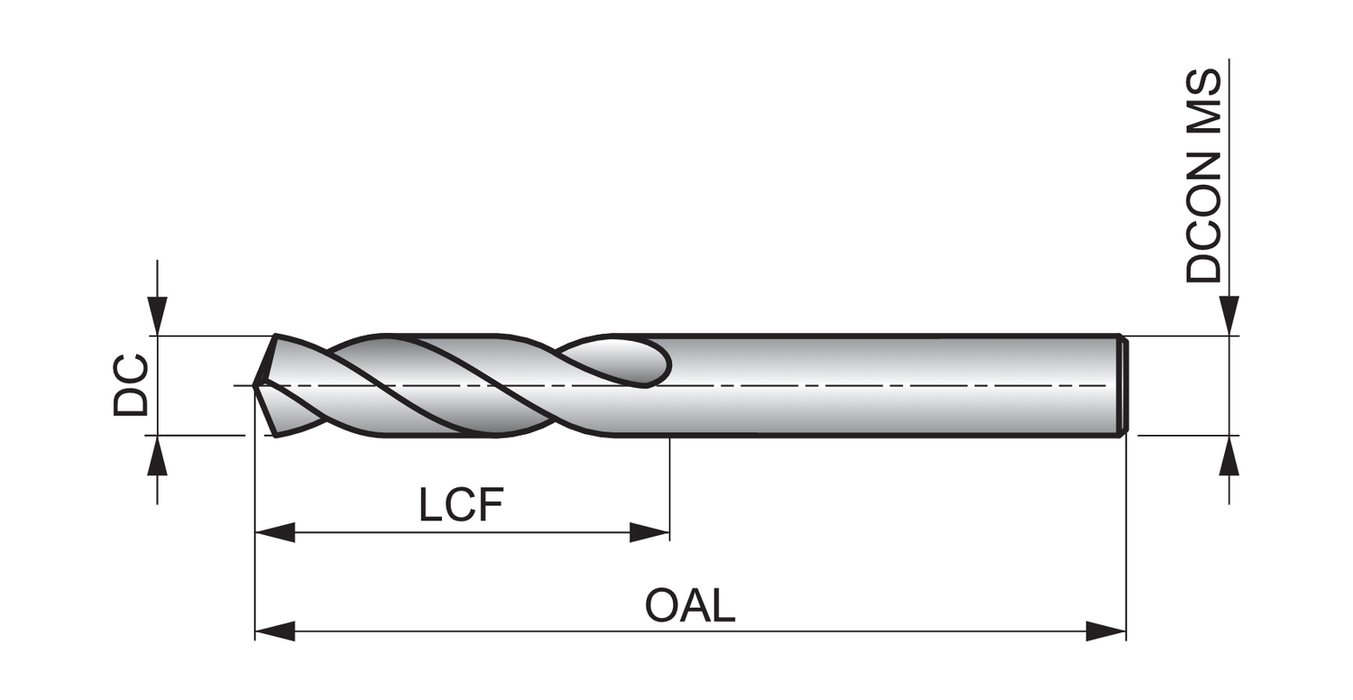

Dimensions
Cutting Diameter — in (DC)0.1339"
Cutting Diameter — mm (DC)3.4 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1339"
Connection Dia. — mm (DCON)3.4 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number17319
EAN7320760017319
File Type Download
A1203.4 — 3D Model STP Download
A1203.4 — Line Drawing PDF Download
