A1174.5

A1174.5

SKU DOR5968149
by Dormer Pramet
Primary Use: Possible Use:

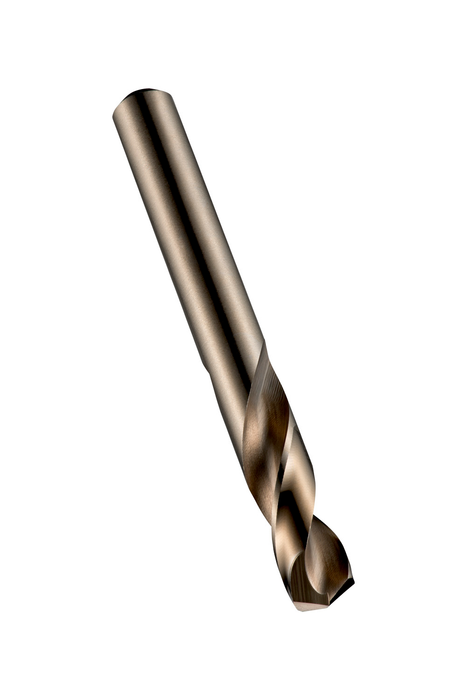

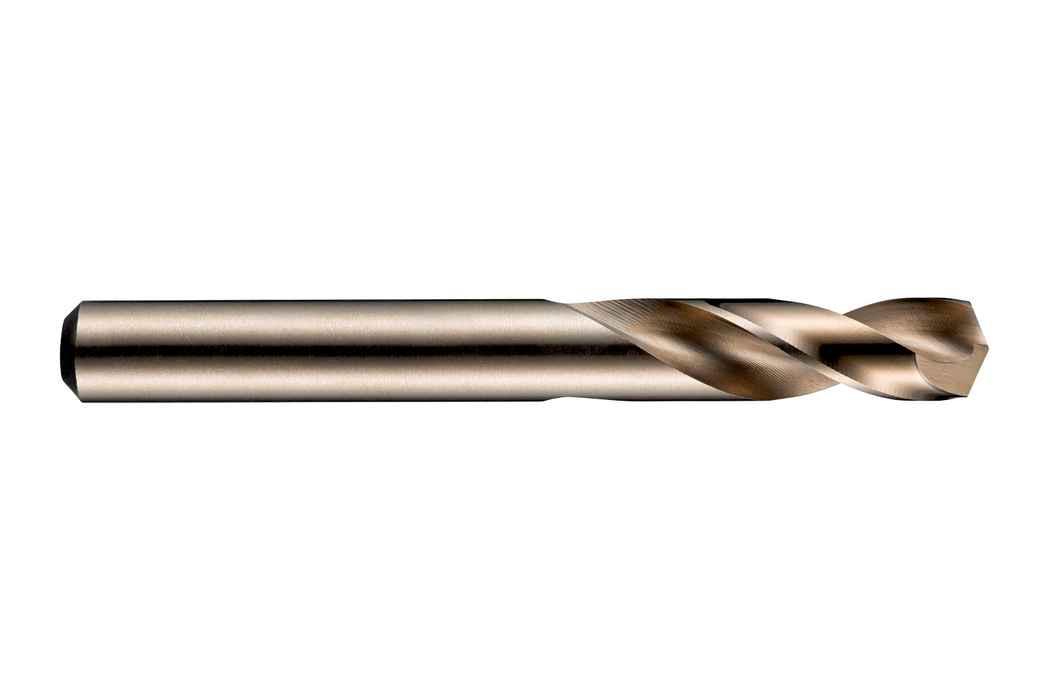

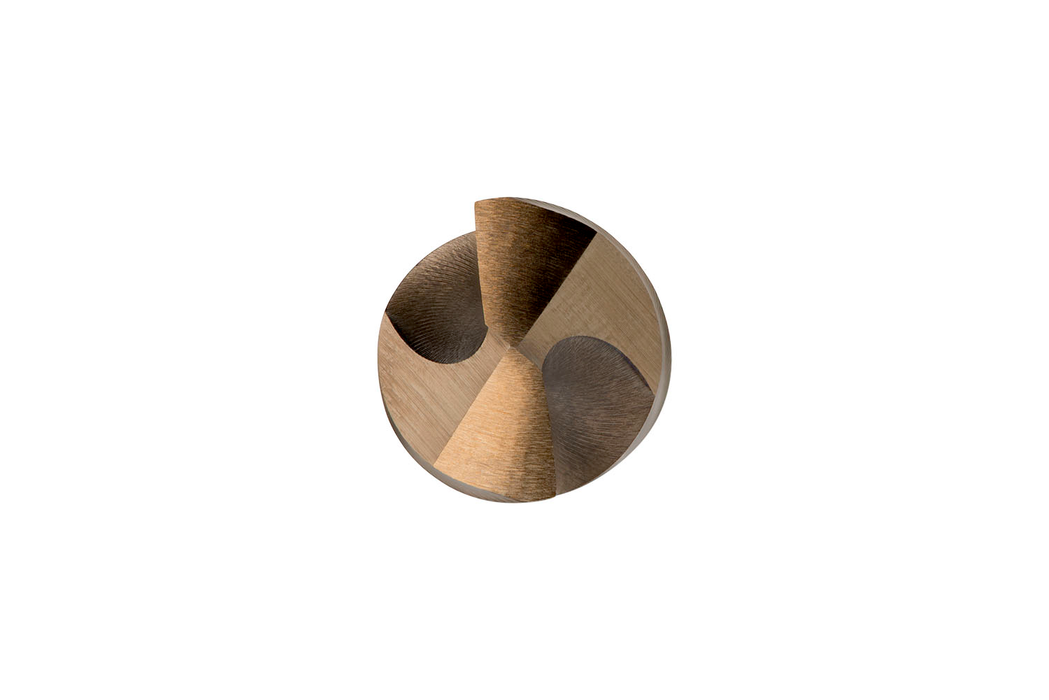

Stub length drill with straight shank, diameter 4.5mm with an overall length of 58mm and flute length of 24mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$9.50 - $9.50
$9.50
$9.50 - $9.50
$9.50
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.1772

Cutting Diameter - mm (DC): 4.5

Drill Point Angle - deg: 135

Flute Length: 0.9449

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1772

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bronze

EDP: 15476

EAN: 7320760015476

MFG Part Number: 5968149
