A12514.0X400
A12514.0X400
A12514.0X400
A12514.0X400

A12514.0X400

SKU DOR5968158
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$401.76 CAD - $401.76 CAD
$401.76 CAD
$401.76 CAD - $401.76 CAD
$401.76 CAD

Sold in packs of: 1

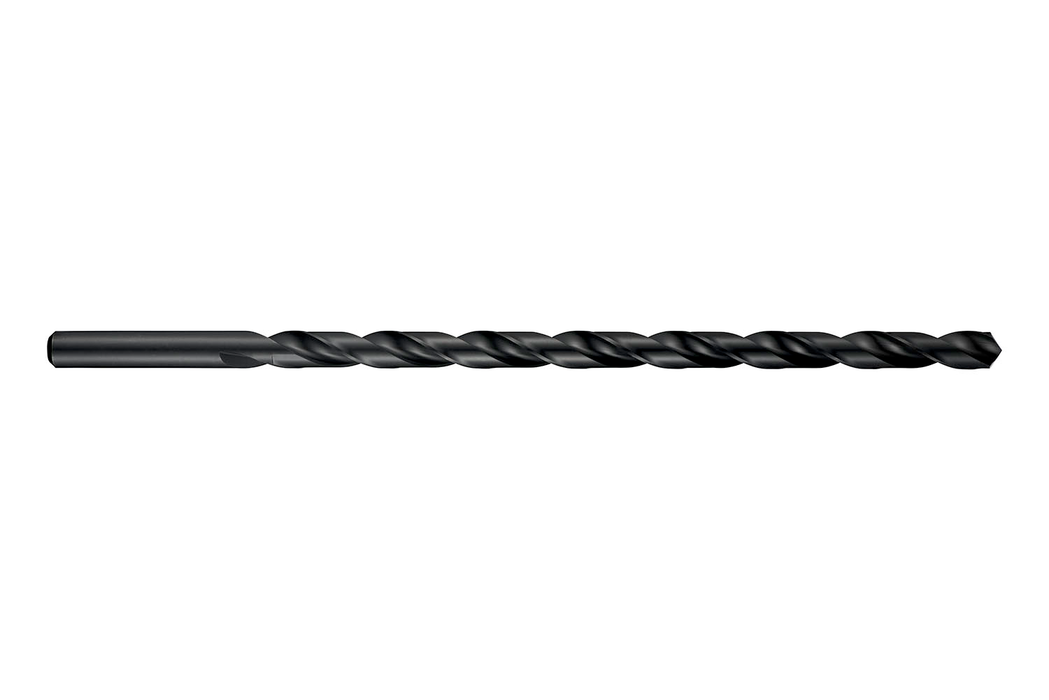

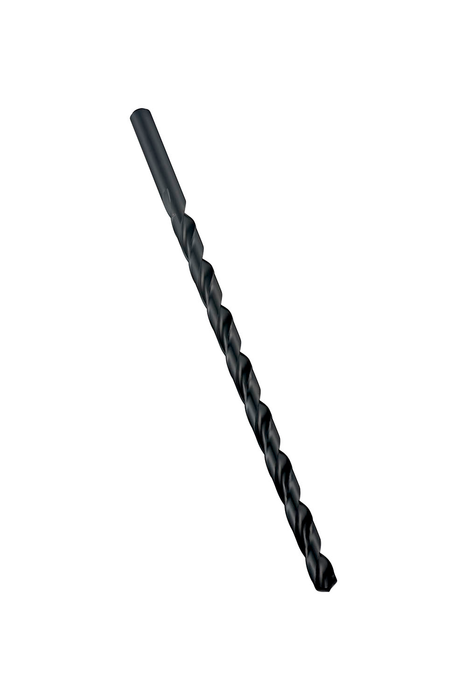

Extra long length drill with straight shank, diameter 14mm with an overall length of 400mm and flute length of 300mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD drilling without pecking in steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12514.0X400
GradeSteam Tempered
Product Number5968158
Product FamilyA125

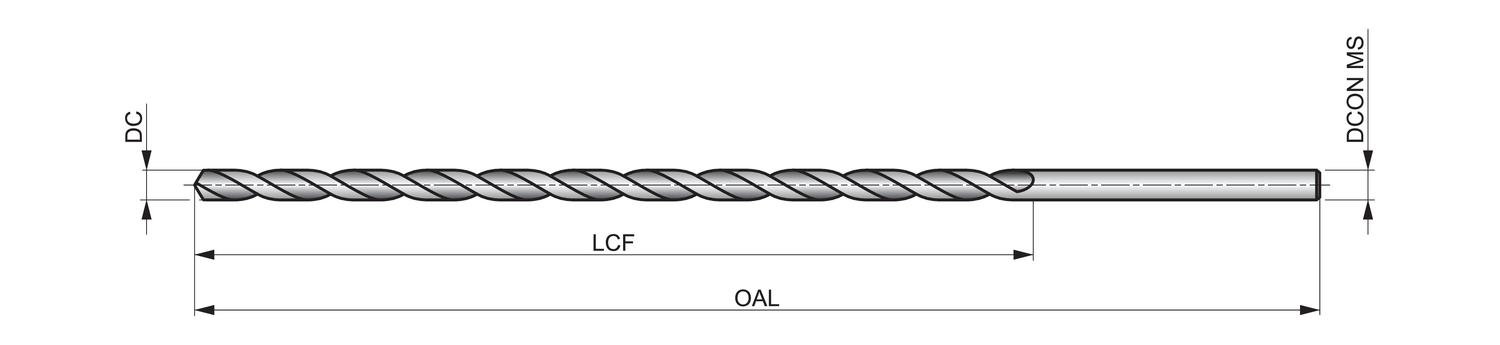

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)15.748"
Overall Length — mm (OAL)400.0 mm
Flute Length — in (LCF)11.811"
Flute Length — mm (LCF)300.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm

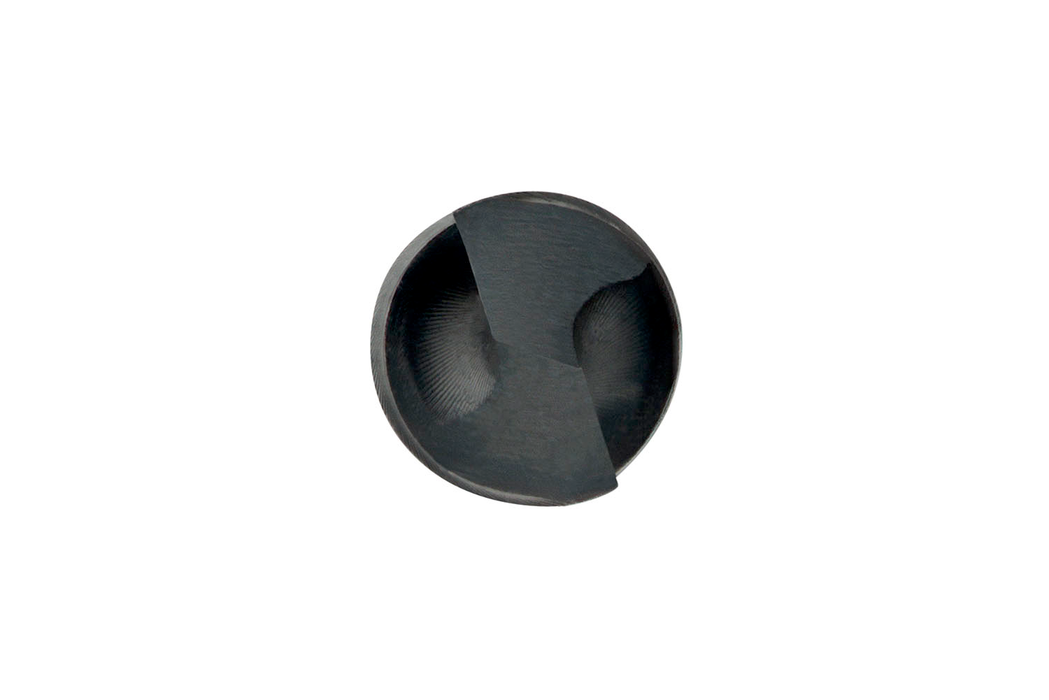

Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardBS 328
Reference Numbers
EDP Number20029
EAN7320760020029
File Type Download
A12514.0X400 — 3D Model STP Download
A12514.0X400 — Line Drawing PDF Download
