SKU DOR5968195
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Sold in packs of: 10

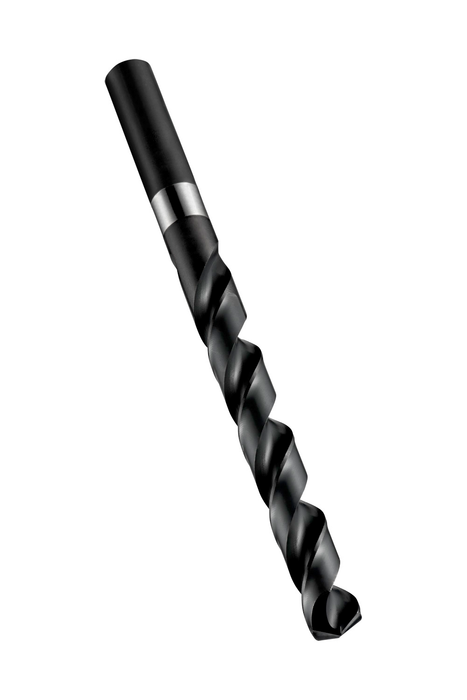

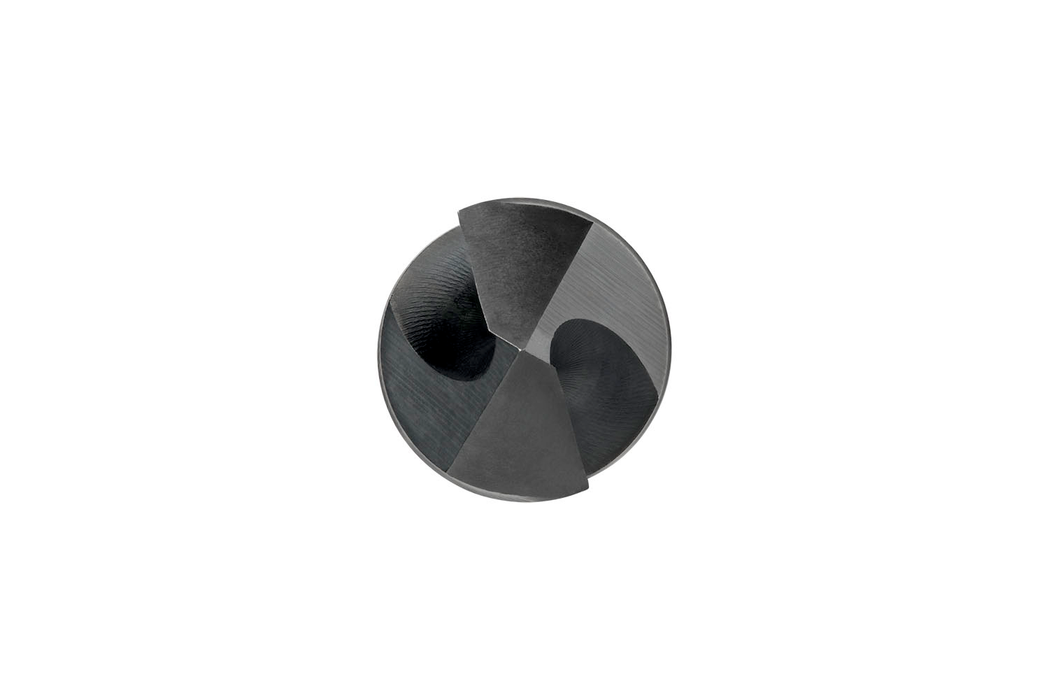

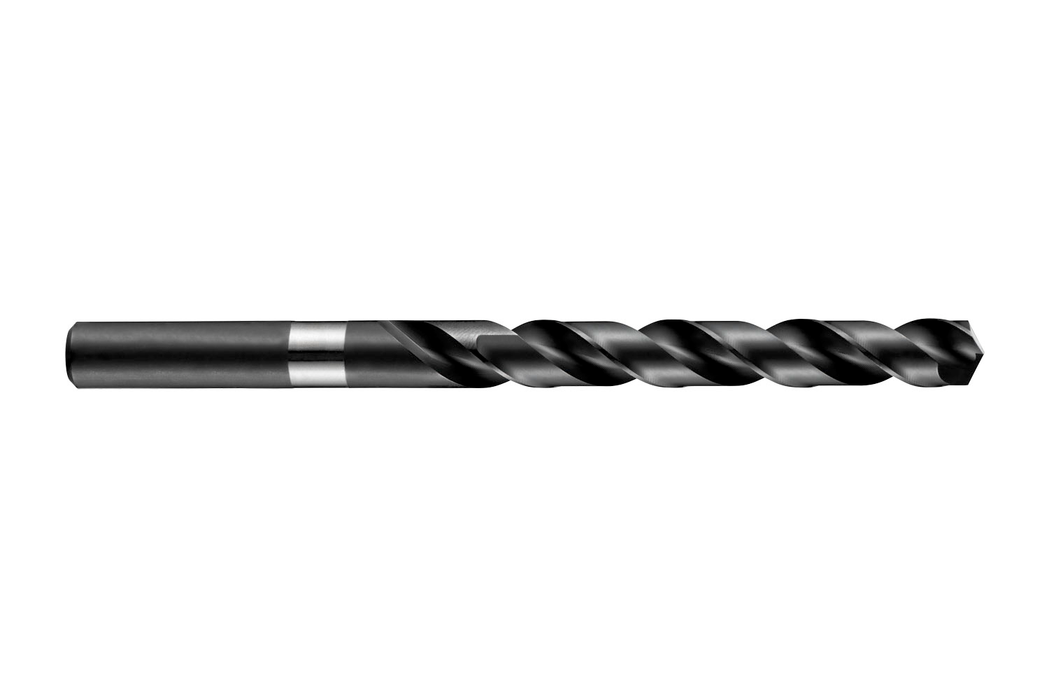

Jobber length drill with straight shank, diameter 8.3mm with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1088.3
GradeSteam Tempered
Product Number5968195
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.3268"
Cutting Diameter — mm (DC)8.3 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3268"
Connection Dia. — mm (DCON)8.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 338
Reference Numbers
EDP Number8744
EAN7320760008744
File Type Download
A1088.3 — 3D Model STP Download
A1088.3 — Line Drawing PDF Download
