A10811/64

A10811/64

SKU DOR5968238
by Dormer Pramet
Primary Use: Possible Use:

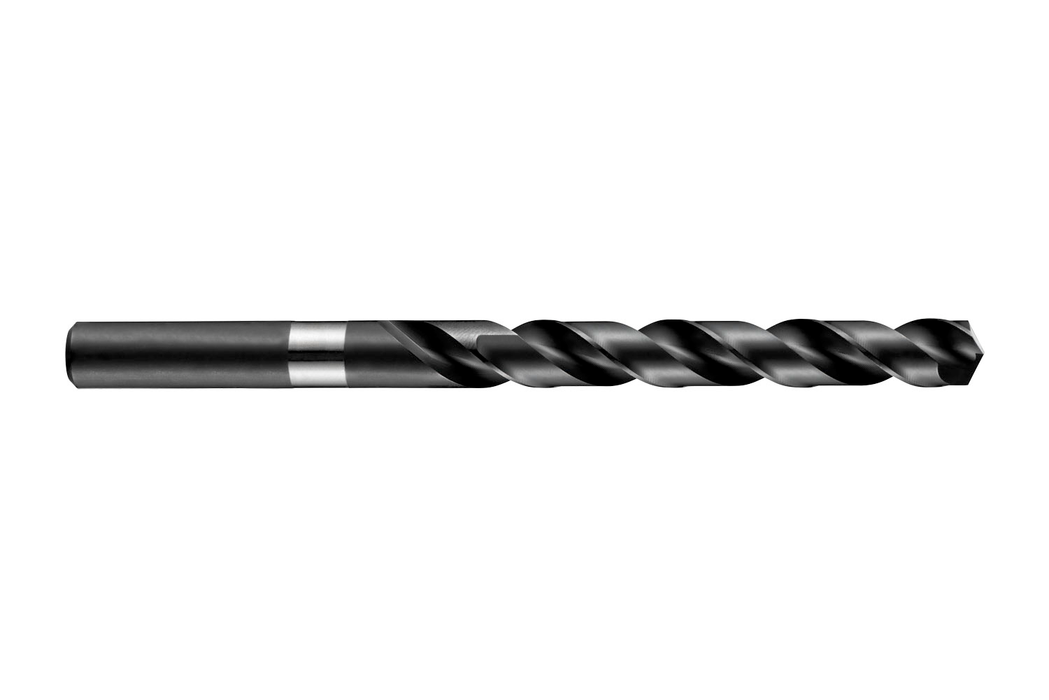

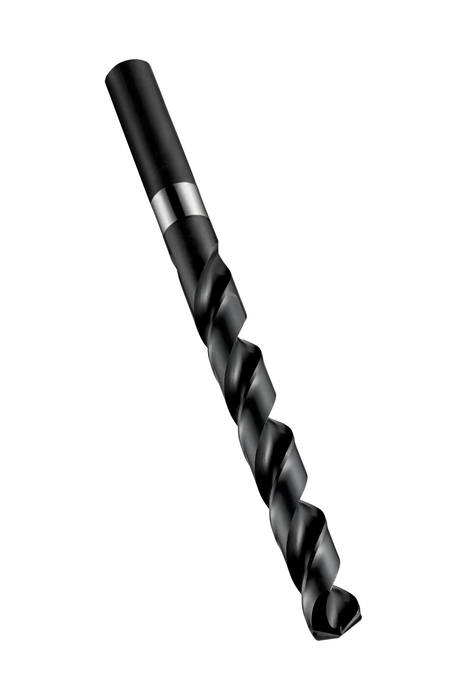

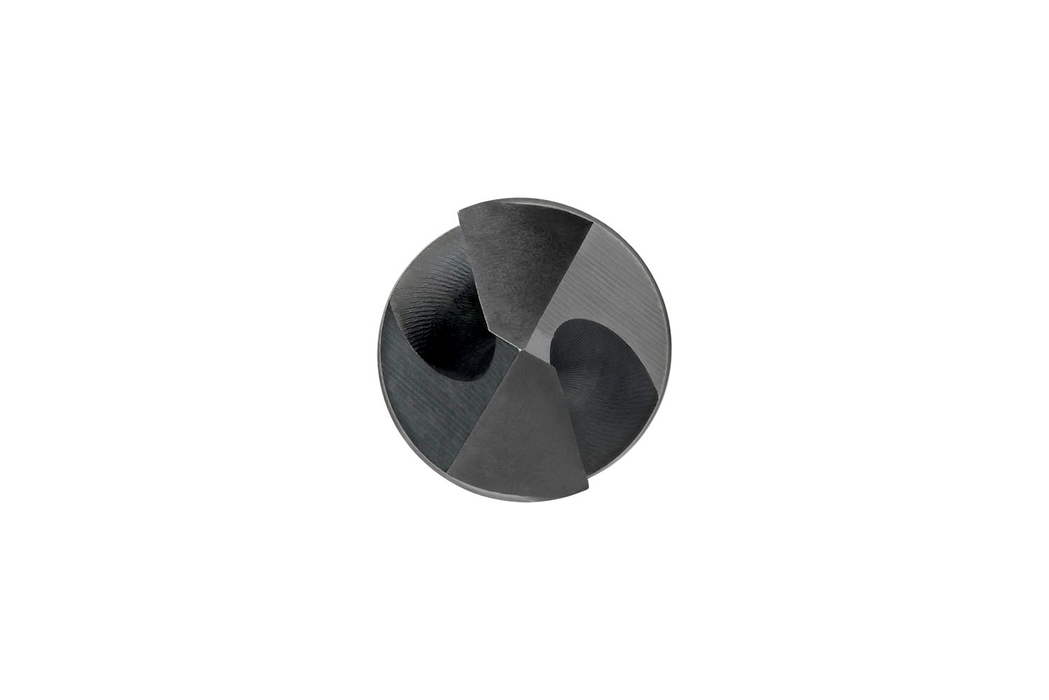

Jobber length drill with straight shank, diameter 0.1719" (11/64) with an overall length of 80mm and flute length of 47mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.13 - $3.13
$3.13
$3.13 - $3.13
$3.13
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1719

Cutting Diameter - mm (DC): 4.37

Drill Point Angle - deg: 135

Flute Length: 1.8504

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.1496

Connetion Diameter: 0.172

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 11/64

Grade: Steam Tempered

EDP: 7730

EAN: 7320760007730

MFG Part Number: 5968238
