A1089/32
A1089/32
A1089/32
A1089/32

A1089/32

SKU DOR5968253
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.73 CAD - $6.73 CAD
$6.73 CAD
$6.73 CAD - $6.73 CAD
$6.73 CAD

Sold in packs of: 10

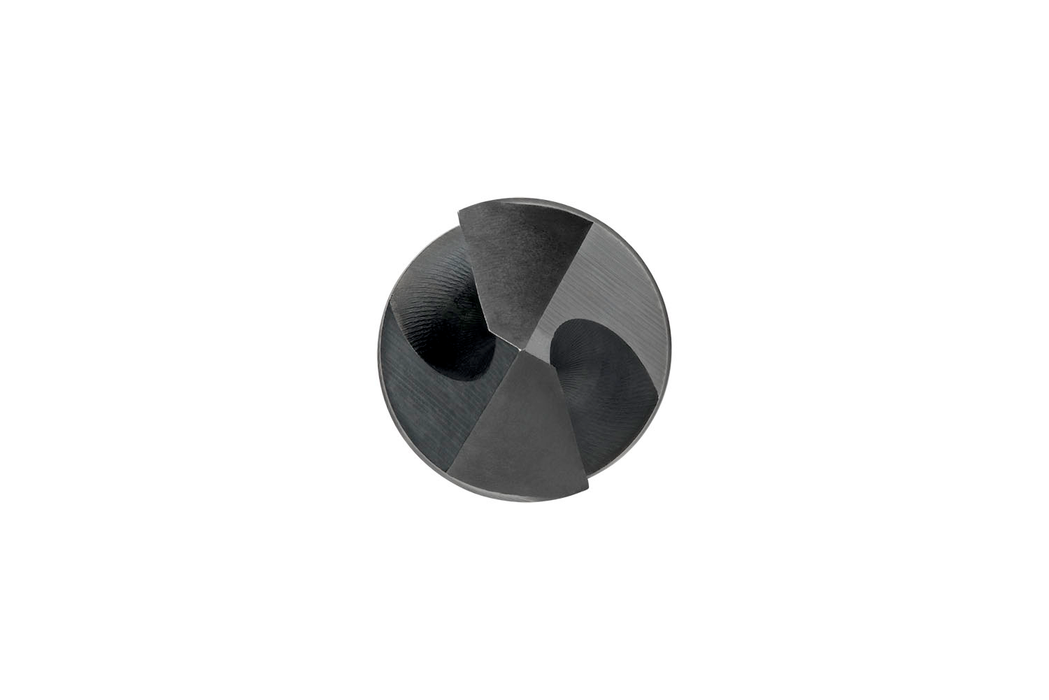

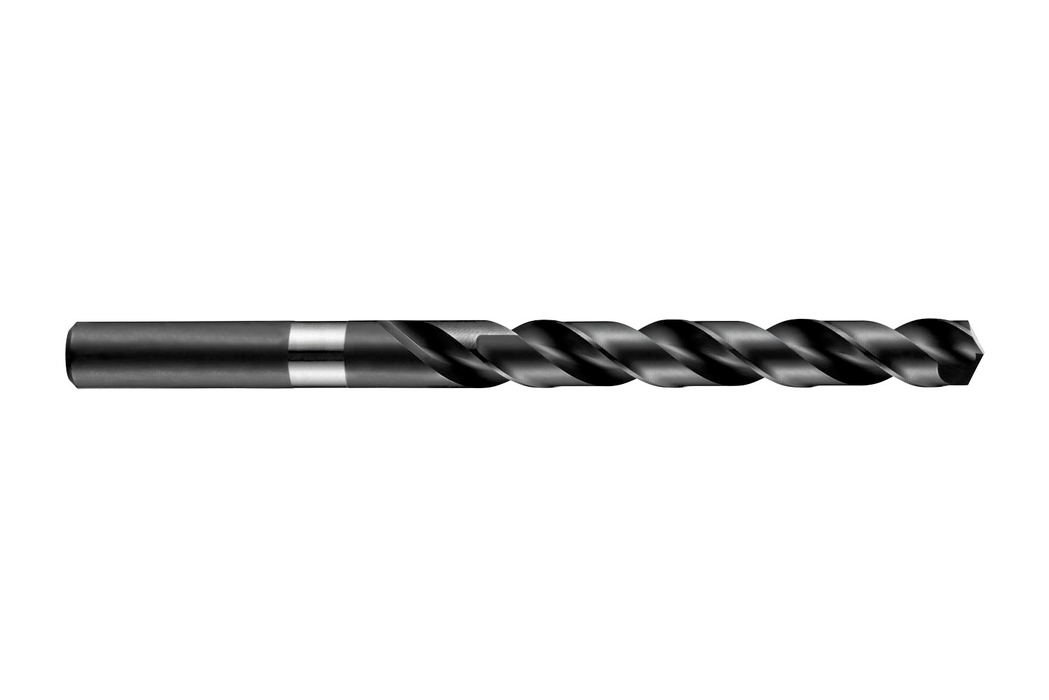

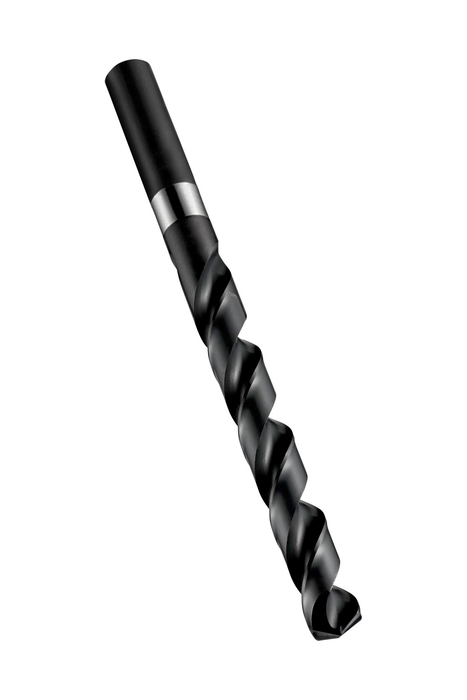

Jobber length drill with straight shank, diameter 0.2813" (9/32) with an overall length of 109mm and flute length of 69mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1089/32
GradeSteam Tempered
Product Number5968253
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.2813"
Cutting Diameter — mm (DC)7.14 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — in (LCF)2.7165"
Flute Length — mm (LCF)69.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2811"
Connection Dia. — mm (DCON)7.14 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 338
Reference Numbers
EDP Number8911
EAN7320760008911
File Type Download
A1089/32 — 3D Model STP Download
A1089/32 — Line Drawing PDF Download
