A1089/64
A1089/64
A1089/64
A1089/64

A1089/64

SKU DOR5968256
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.06 CAD - $3.06 CAD
$3.06 CAD
$3.06 CAD - $3.06 CAD
$3.06 CAD

Sold in packs of: 10

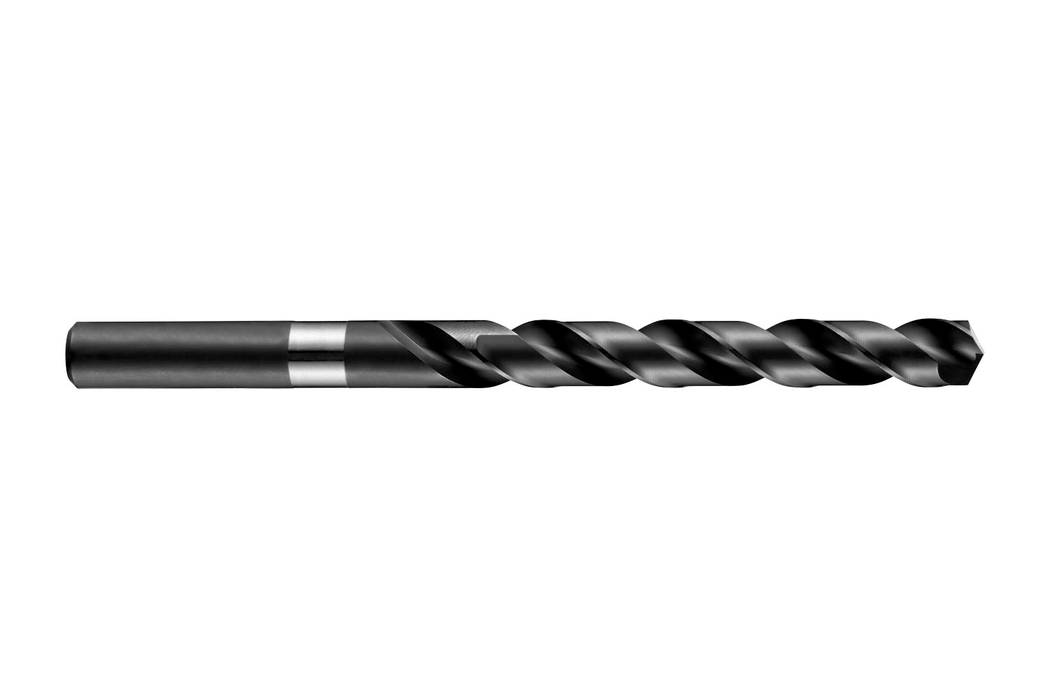

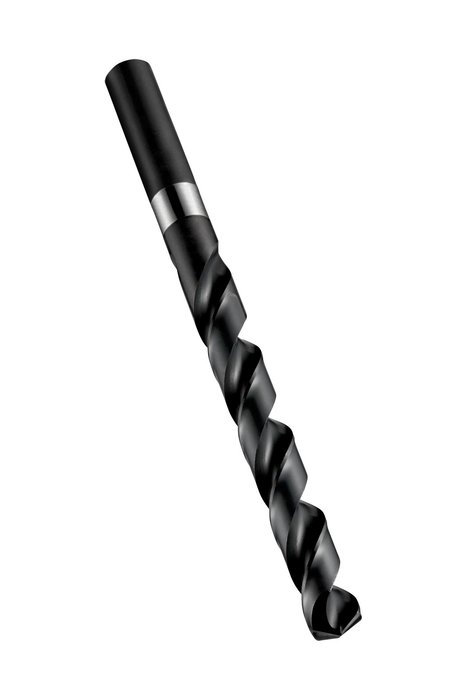

Jobber length drill with straight shank, diameter 0.1406" (9/64) with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1089/64
GradeSteam Tempered
Product Number5968256
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.1406"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)1.5354"
Flute Length — mm (LCF)39.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1406"
Connection Dia. — mm (DCON)3.57 mm

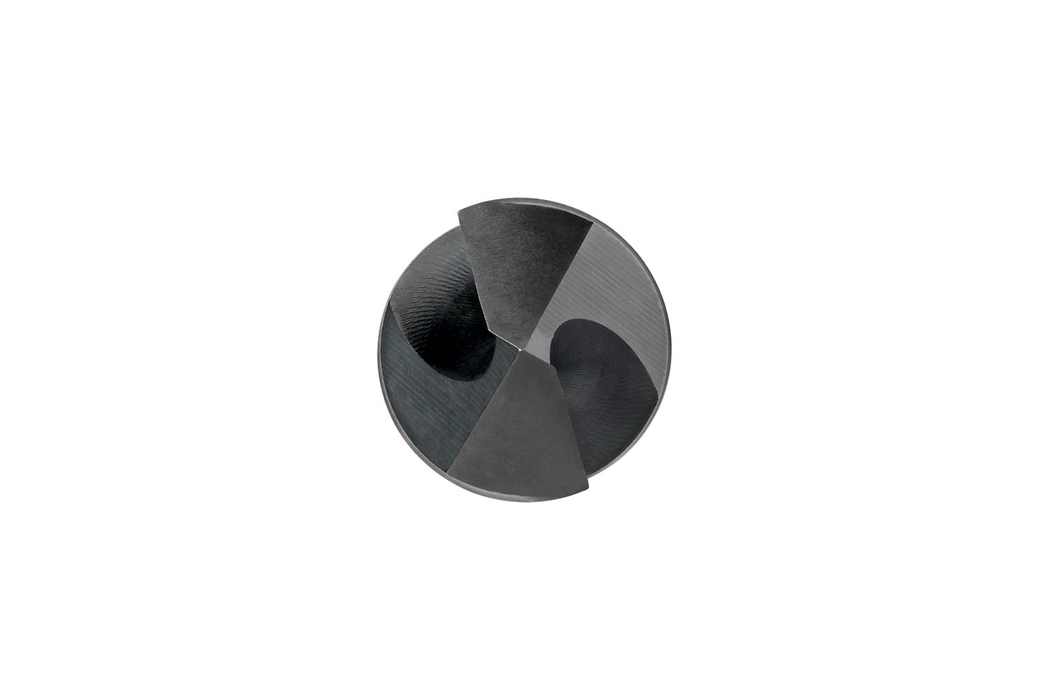

Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 338
Reference Numbers
EDP Number8928
EAN7320760008928
File Type Download
A1089/64 — 3D Model STP Download
A1089/64 — Line Drawing PDF Download
