A1101

A1101

SKU DOR5968282
by Dormer Pramet
Primary Use: Possible Use:

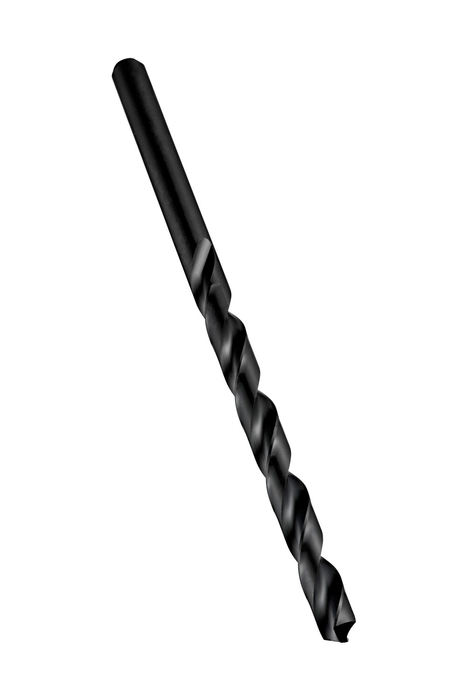

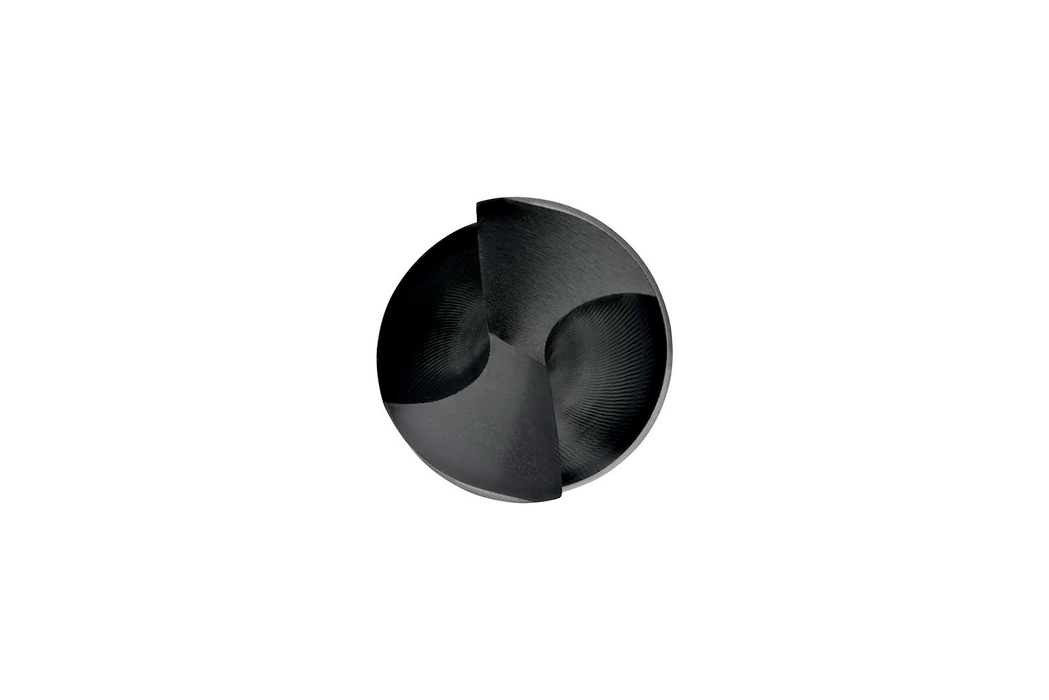

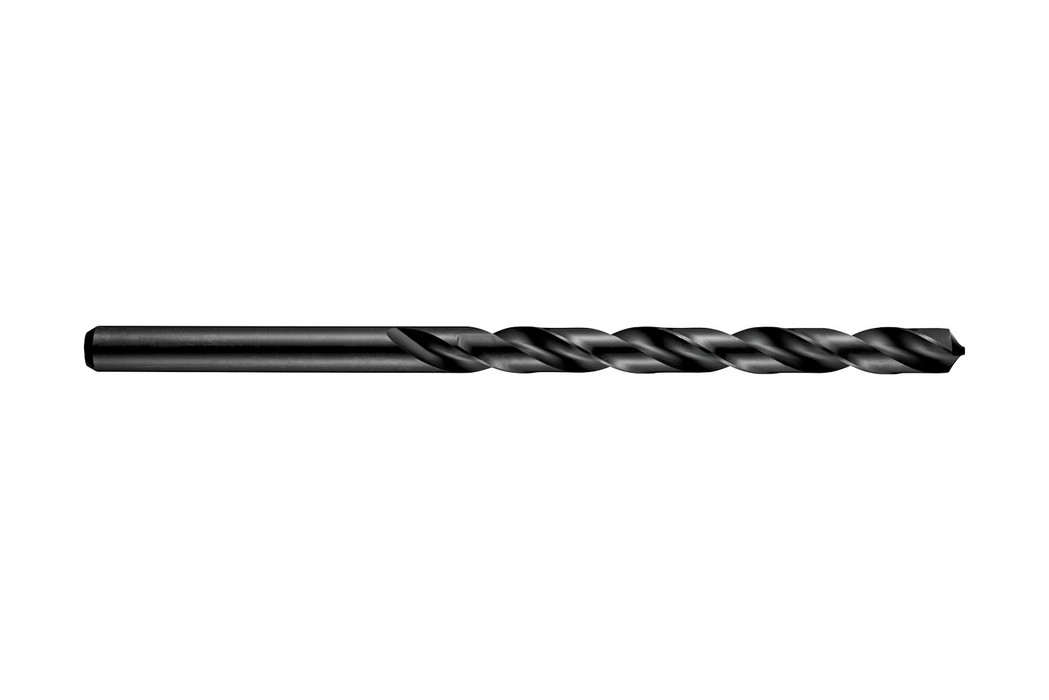

Long series drill with straight shank, diameter 1.0000" (1) with an overall length of 290mm and flute length of 190mm according to DIN 340 standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$298.69 - $298.69
$298.69
$298.69 - $298.69
$298.69
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

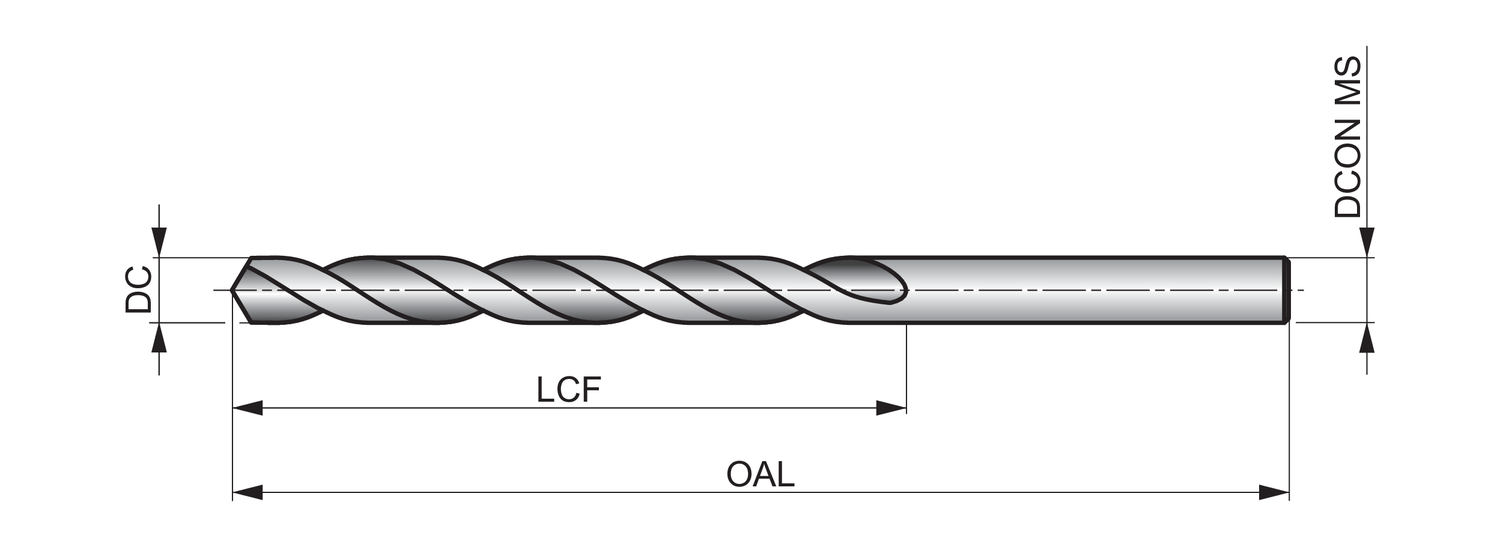

Cutting Diameter - in (DC): 1.0

Cutting Diameter - mm (DC): 25.4

Drill Point Angle - deg: 118

Flute Length: 7.4803

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 11.4173

Connetion Diameter: 1.0

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1"

Grade: Steam Tempered

EDP: 9932

EAN: 7320760009932

MFG Part Number: 5968282
