A1083/32

A1083/32

SKU DOR5968314
by Dormer Pramet
Primary Use: Possible Use:

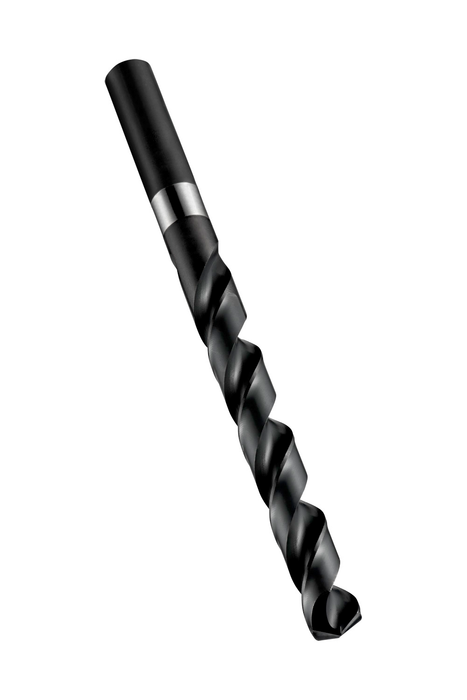

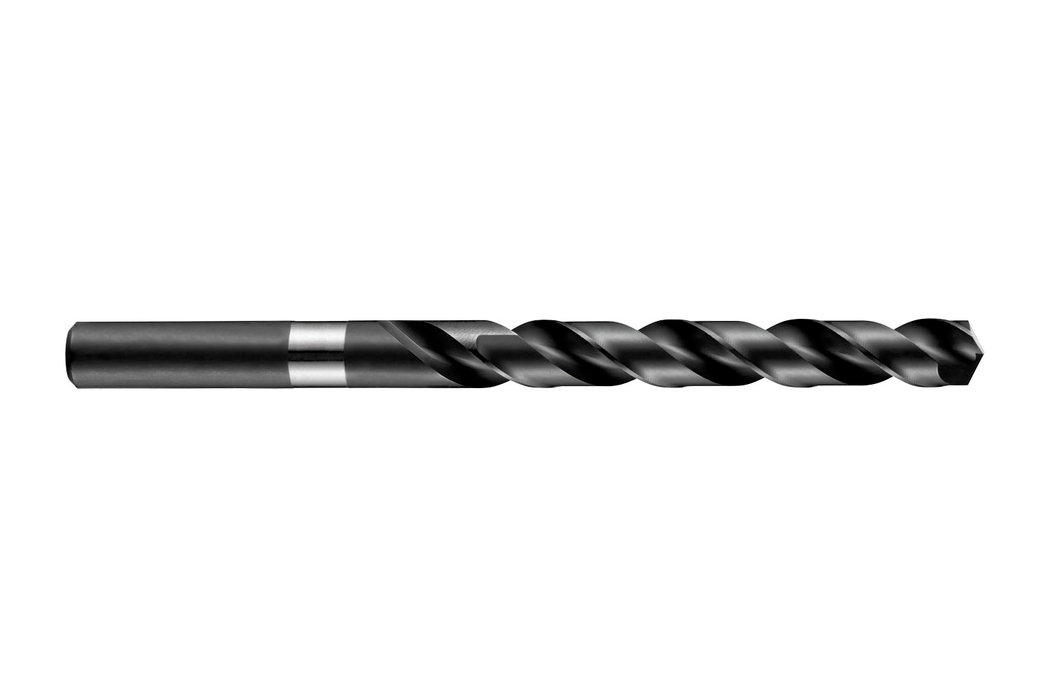

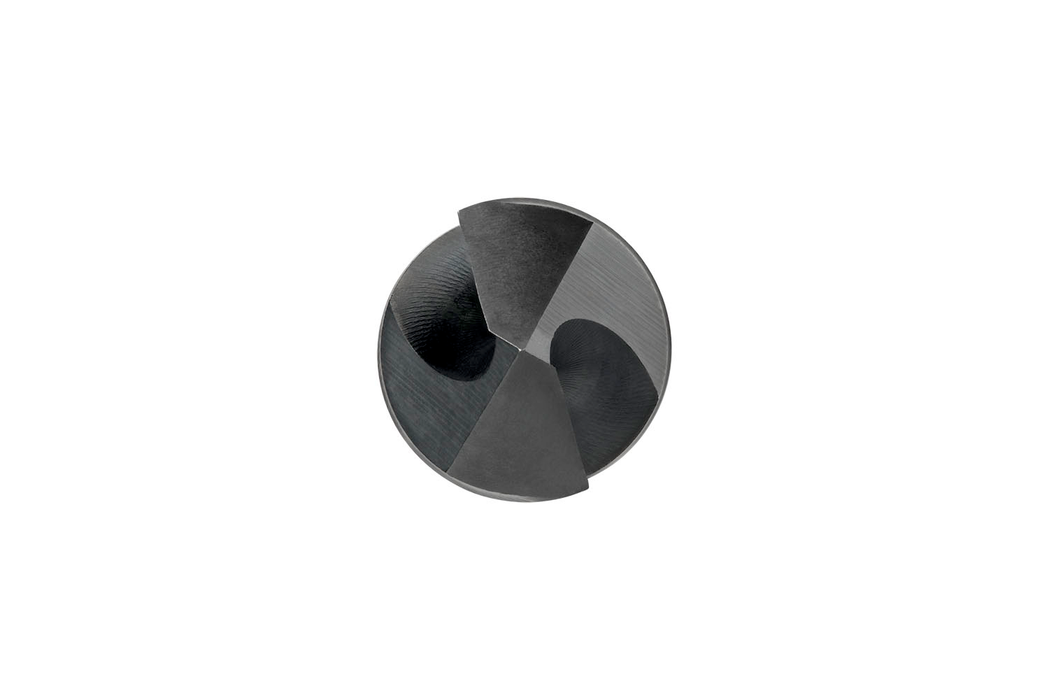

Jobber length drill with straight shank, diameter 0.0938" (3/32) with an overall length of 57mm and flute length of 30mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$2.69 - $2.69
$2.69
$2.69 - $2.69
$2.69
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0938

Cutting Diameter - mm (DC): 2.38

Drill Point Angle - deg: 135

Flute Length: 1.1811

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.2441

Connetion Diameter: 0.0937

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/32

Grade: Steam Tempered

EDP: 8232

EAN: 7320760008232

MFG Part Number: 5968314
