A1083.4

A1083.4

SKU DOR5968430
by Dormer Pramet
Primary Use: Possible Use:

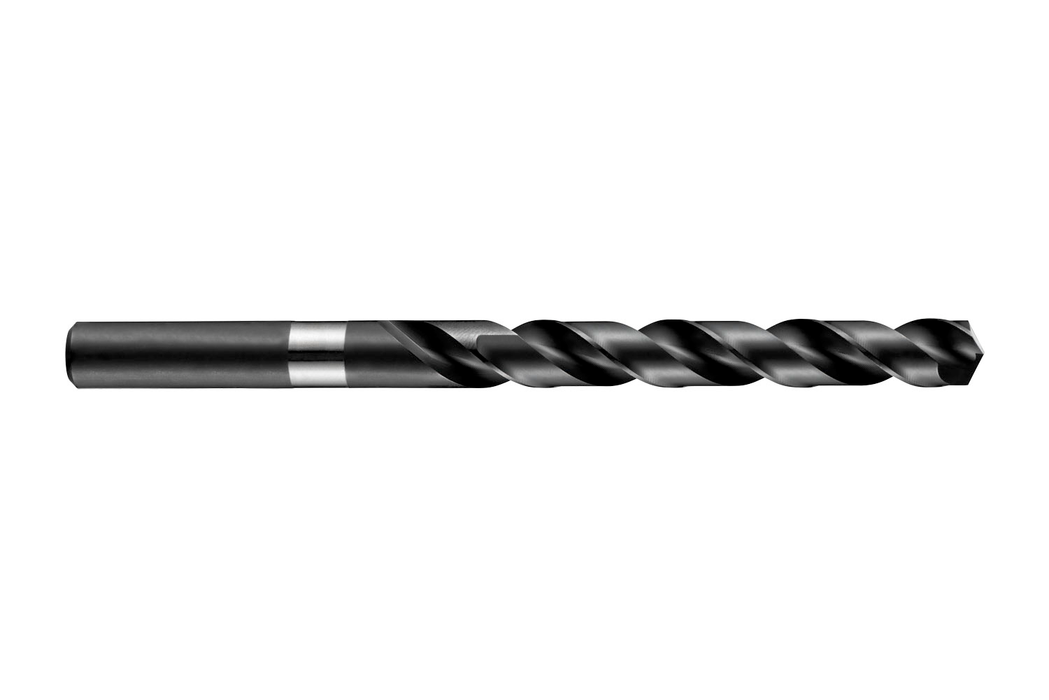

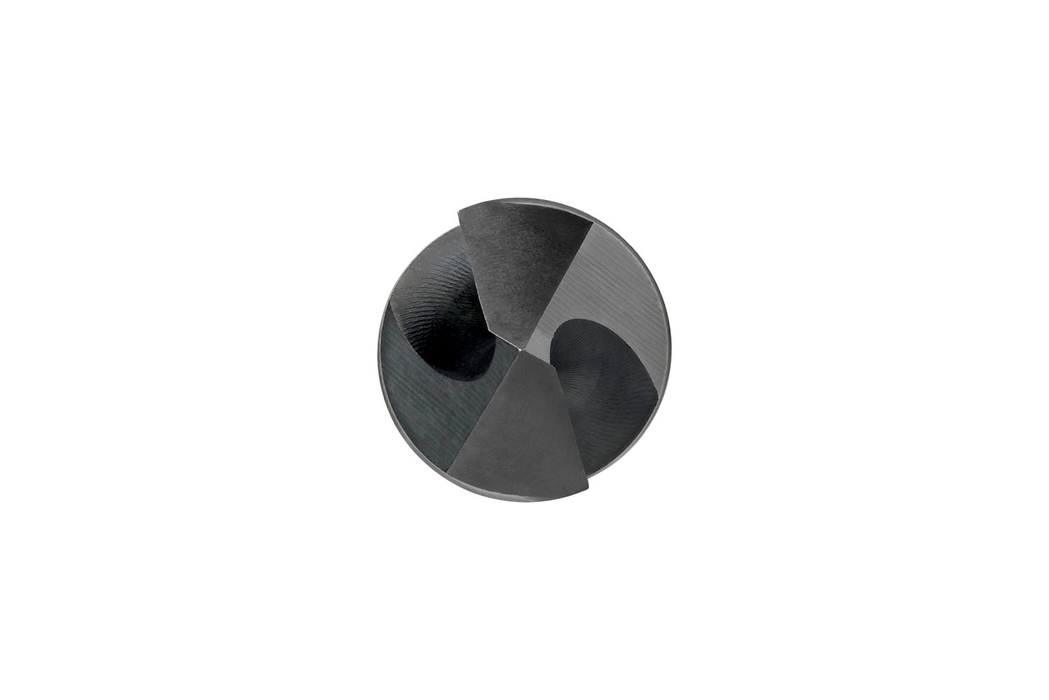

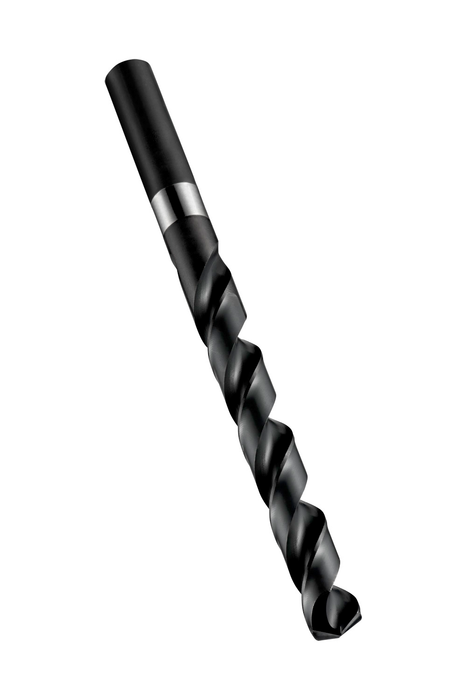

Jobber length drill with straight shank, diameter 3.4mm with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$6.13 - $6.13
$6.13
$6.13 - $6.13
$6.13
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1339

Cutting Diameter - mm (DC): 3.4

Drill Point Angle - deg: 135

Flute Length: 1.5354

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.7559

Connetion Diameter: 0.1339

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 8157

EAN: 7320760008157

MFG Part Number: 5968430
