A1083.5

A1083.5

SKU DOR5968433
by Dormer Pramet
Primary Use: Possible Use:

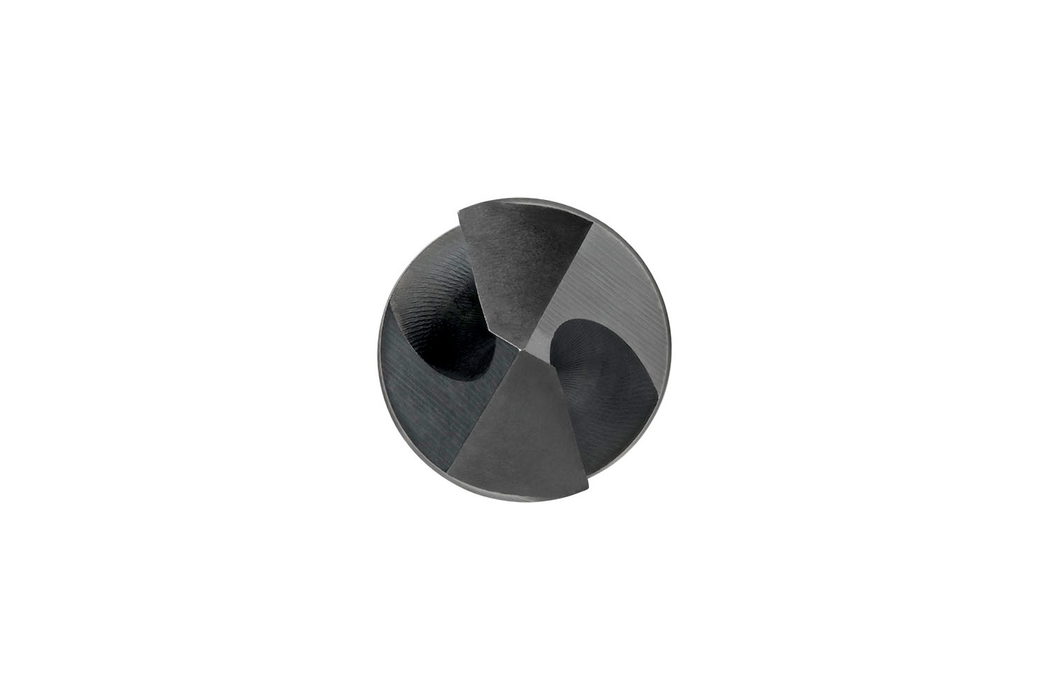

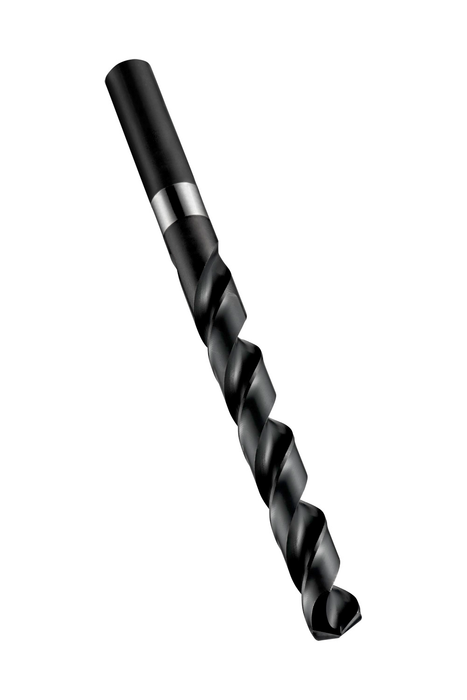

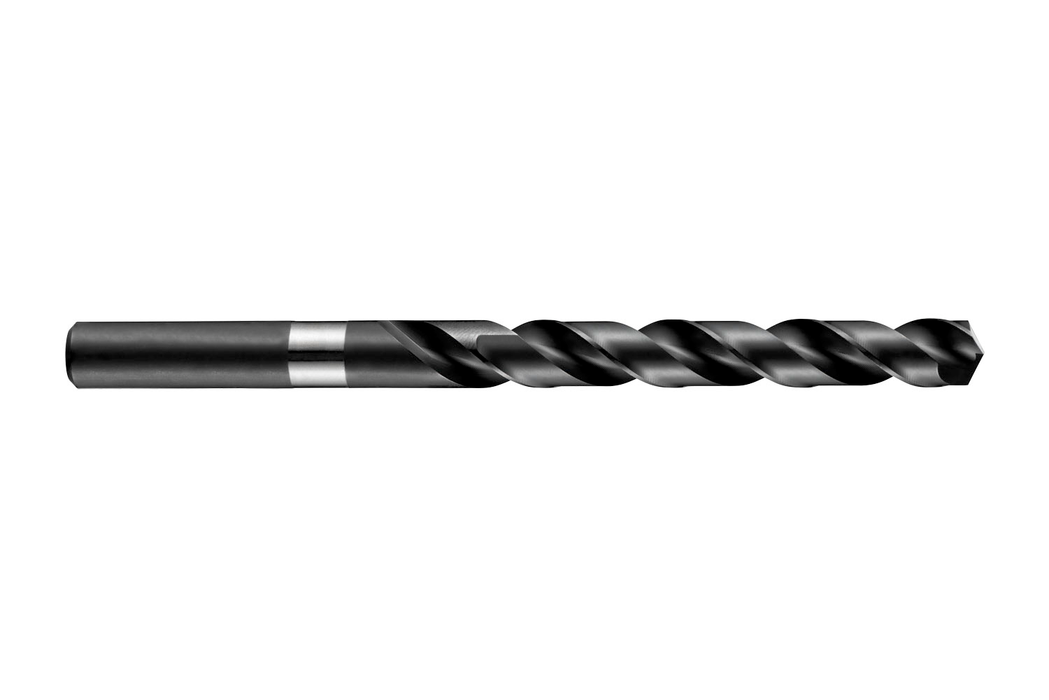

Jobber length drill with straight shank, diameter 3.5mm with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$4.26 - $4.26
$4.26
$4.26 - $4.26
$4.26
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1378

Cutting Diameter - mm (DC): 3.5

Drill Point Angle - deg: 135

Flute Length: 1.5354

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.7559

Connetion Diameter: 0.1378

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 8164

EAN: 7320760008164

MFG Part Number: 5968433
