A1201.1

A1201.1

SKU DOR5968446
by Dormer Pramet
Primary Use: Possible Use:

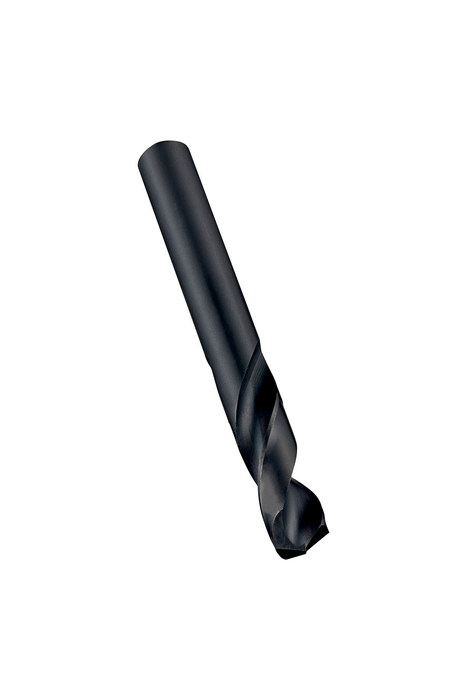

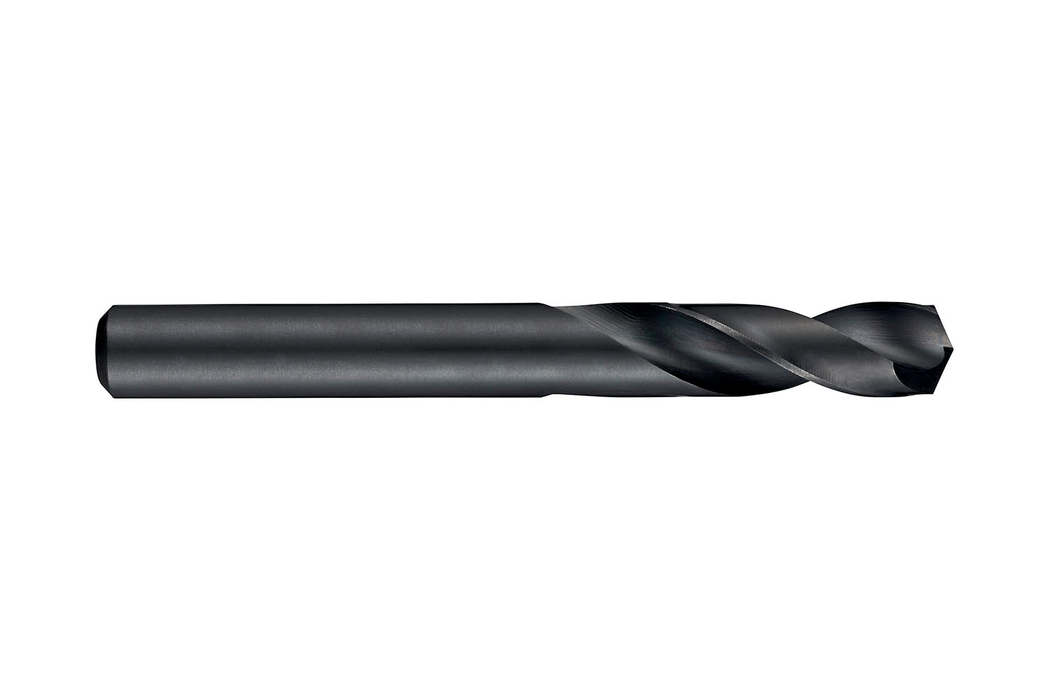

Stub length drill with straight shank, diameter 1.1mm with an overall length of 28mm and flute length of 7mm according to DIN 1897 standard with 118° conical point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$5.59 - $5.59
$5.59
$5.59 - $5.59
$5.59
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0433

Cutting Diameter - mm (DC): 1.1

Drill Point Angle - deg: 118

Flute Length: 0.2756

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.1024

Connetion Diameter: 0.0433

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 16275

EAN: 7320760016275

MFG Part Number: 5968446
