A1203.9

A1203.9

SKU DOR5968590
by Dormer Pramet
Primary Use: Possible Use:

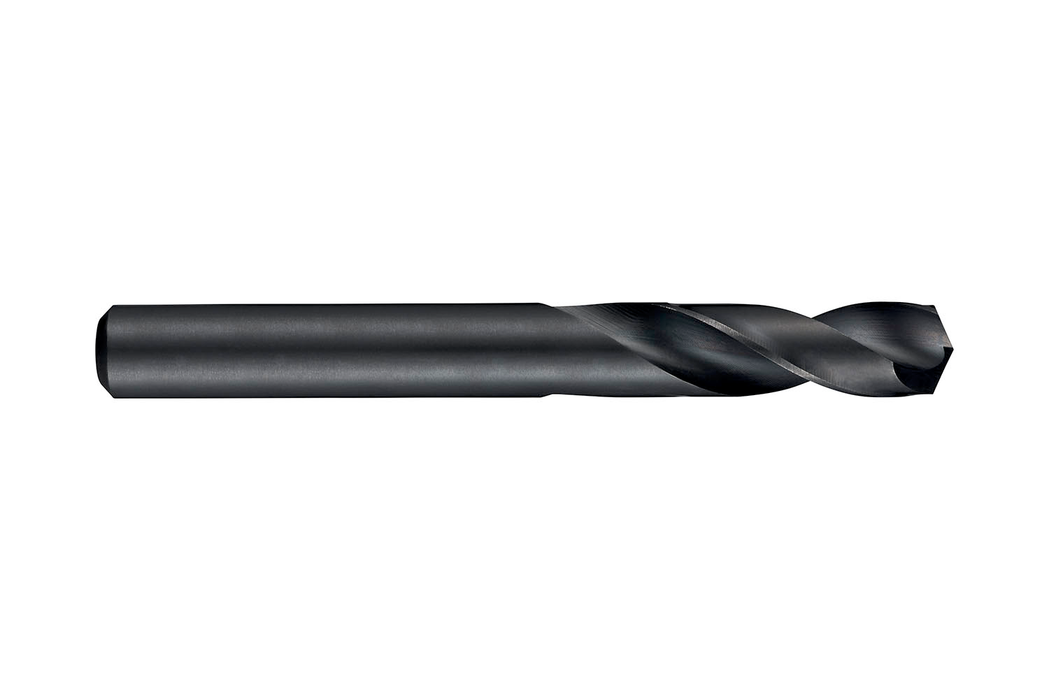

Stub length drill with straight shank, diameter 3.9mm with an overall length of 55mm and flute length of 22mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$4.11 - $4.11
$4.11
$4.11 - $4.11
$4.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1535

Cutting Diameter - mm (DC): 3.9

Drill Point Angle - deg: 135

Flute Length: 0.8661

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.1654

Connetion Diameter: 0.1535

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 17364

EAN: 7320760017364

MFG Part Number: 5968590
