A1203/16

A1203/16

SKU DOR5968600
by Dormer Pramet
Primary Use: Possible Use:

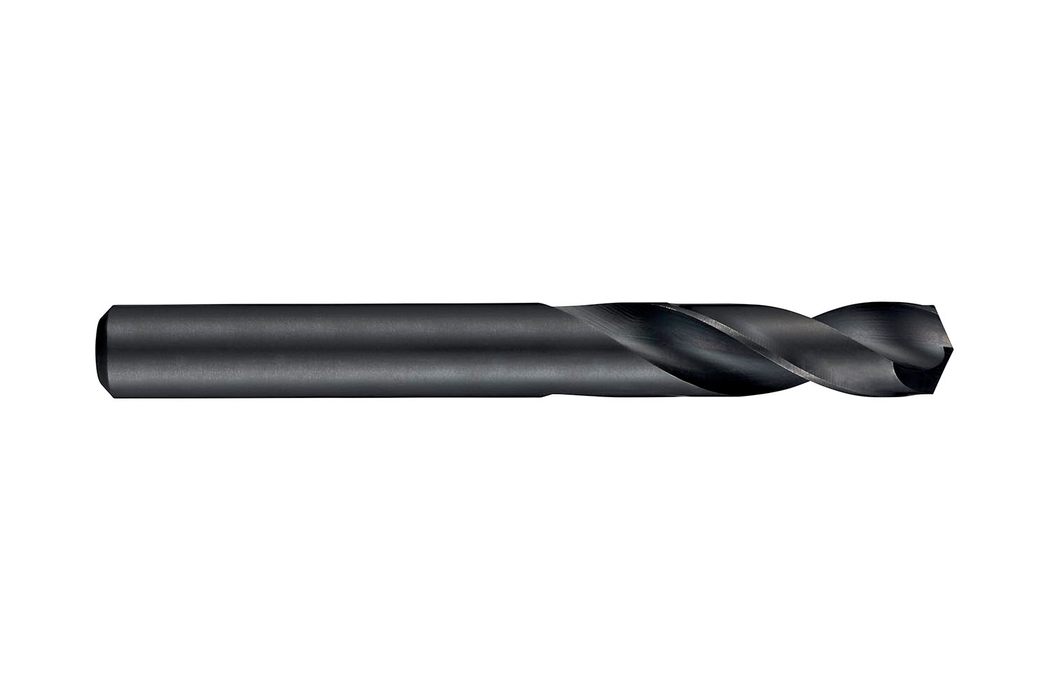

Stub length drill with straight shank, diameter 0.1875" (3/16) with an overall length of 62mm and flute length of 26mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$5.49 - $5.49
$5.49
$5.49 - $5.49
$5.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Drill Point Angle - deg: 135

Flute Length: 1.0236

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.4409

Connetion Diameter: 0.1874

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/16

Grade: Steam Tempered

EDP: 17388

EAN: 7320760017388

MFG Part Number: 5968600
