A12212.0X90
A12212.0X90
A12212.0X90
A12212.0X90

A12212.0X90

SKU DOR5968644
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.14 CAD - $49.14 CAD
$49.14 CAD
$49.14 CAD - $49.14 CAD
$49.14 CAD

Sold in packs of: 5

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12212.0X90
GradeBright
Product Number5968644
Product FamilyA122

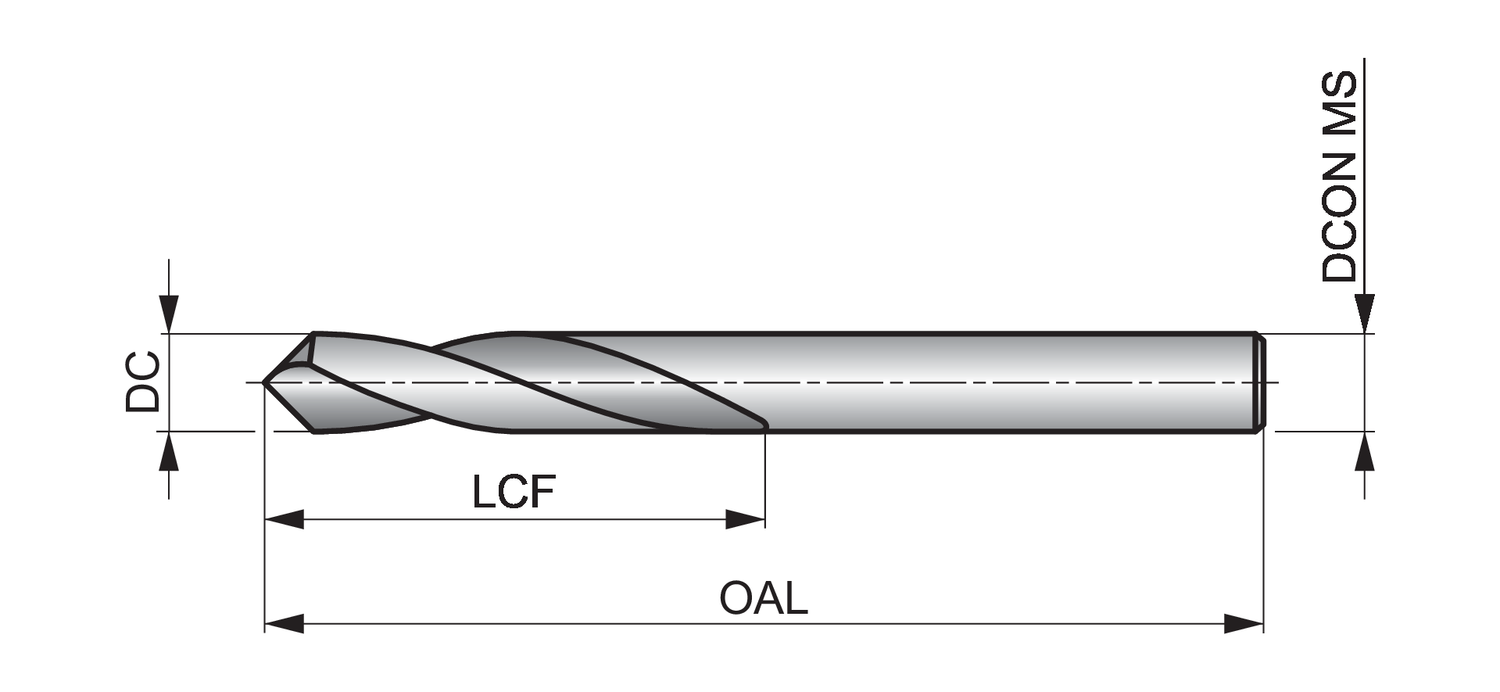

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number19184
EAN7320760019184
File Type Download
A12212.0X90 — 3D Model STP Download
A12212.0X90 — Line Drawing PDF Download
