A1253/16X315

A1253/16X315

SKU DOR5968645
by Dormer Pramet
Primary Use: Possible Use:

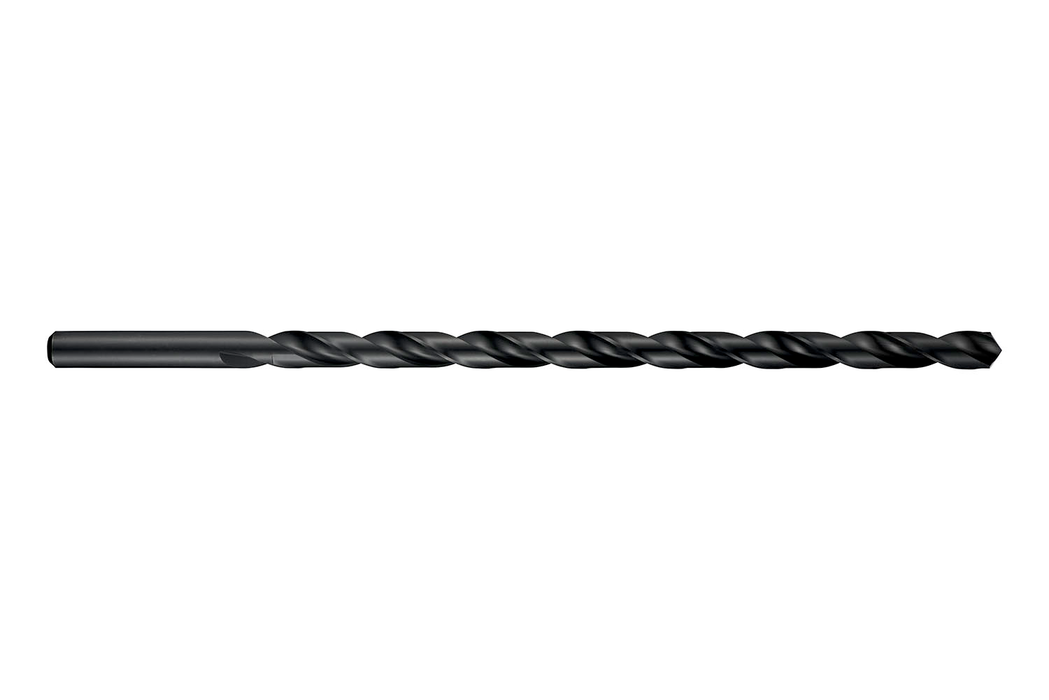

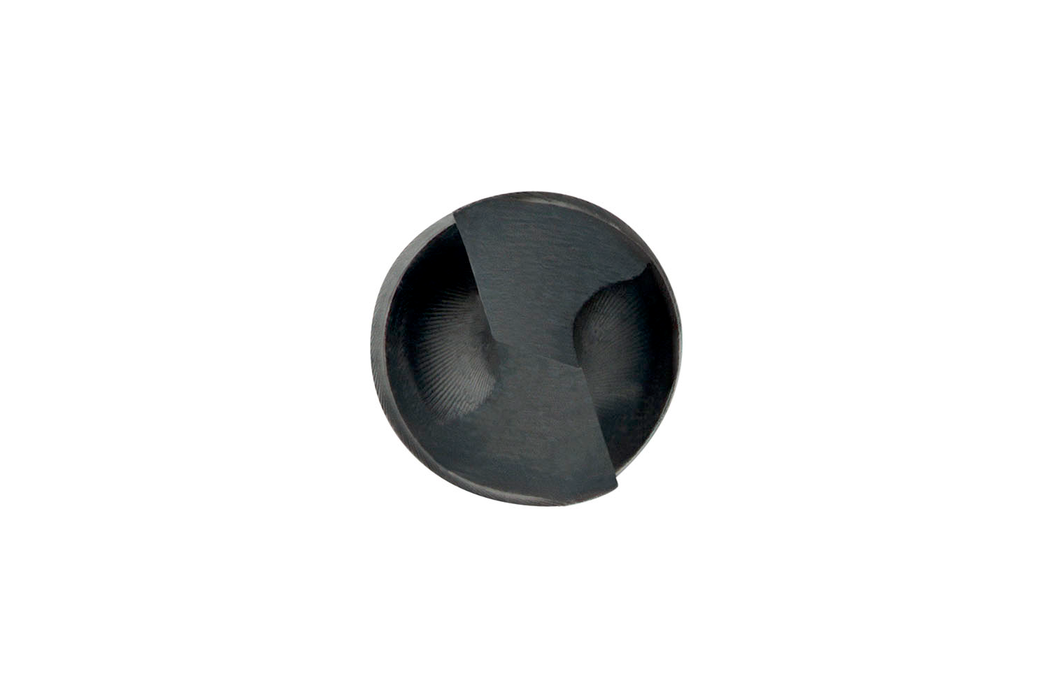

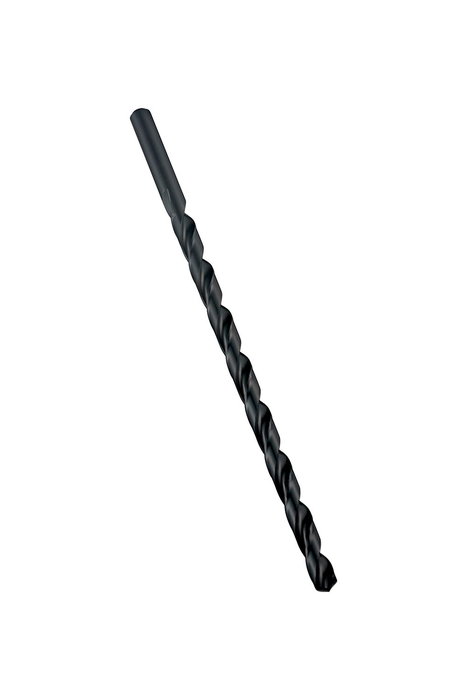

Extra long length drill with straight shank, diameter 0.1875" (3/16) with an overall length of 310mm and flute length of 250mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$30.73 - $30.73
$30.73
$30.73 - $30.73
$30.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

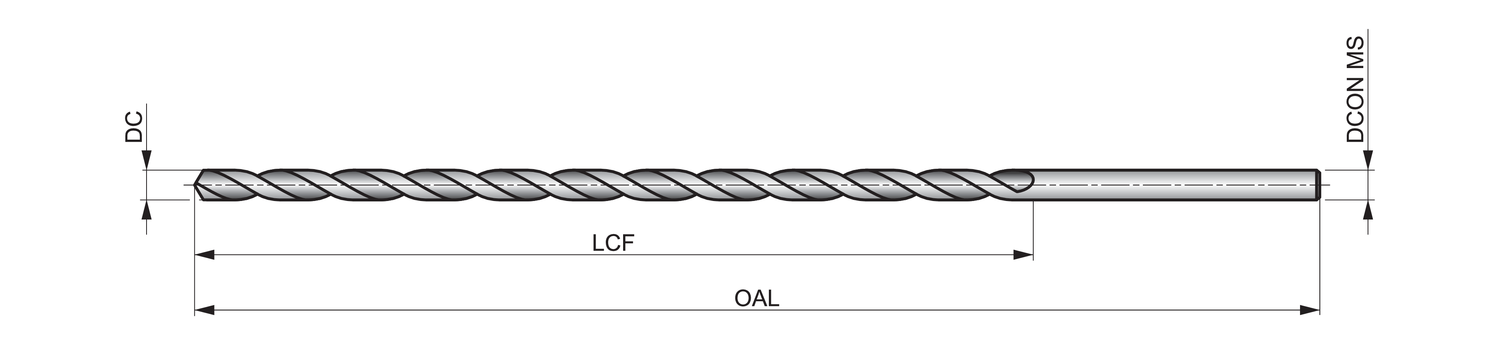

Material: HSS

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Drill Point Angle - deg: 118

Flute Length: 9.8425

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 12.2047

Connetion Diameter: 0.1874

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/16

Grade: Steam Tempered

EDP: 173886

EAN: 7320760173886

MFG Part Number: 5968645
