A12517/64X500

A12517/64X500

SKU DOR5968667
by Dormer Pramet
Primary Use: Possible Use:

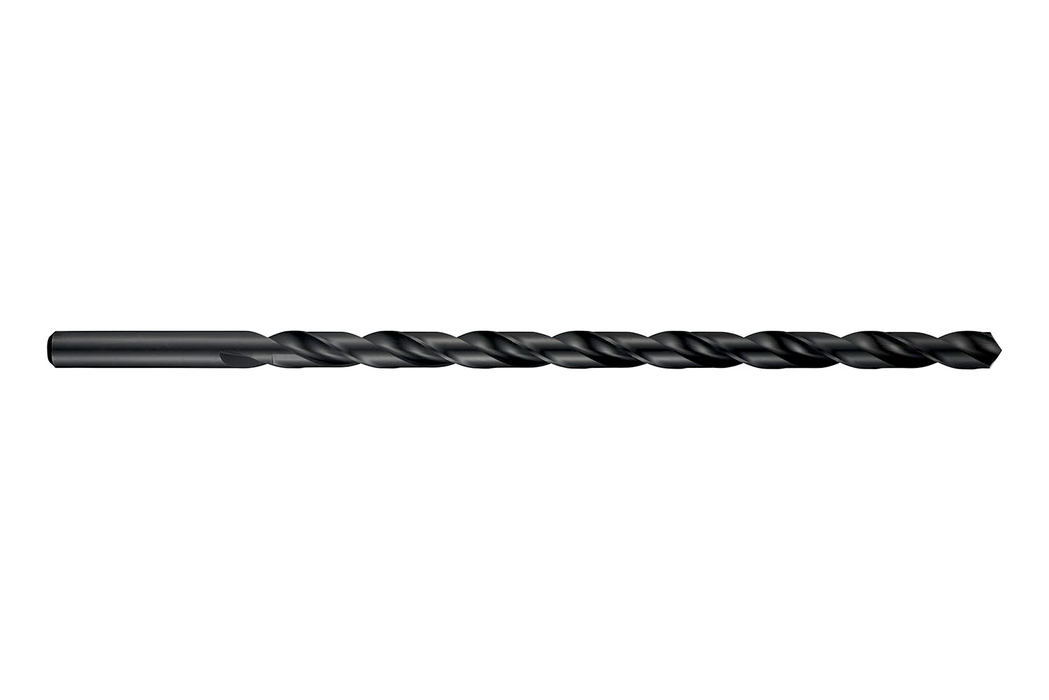

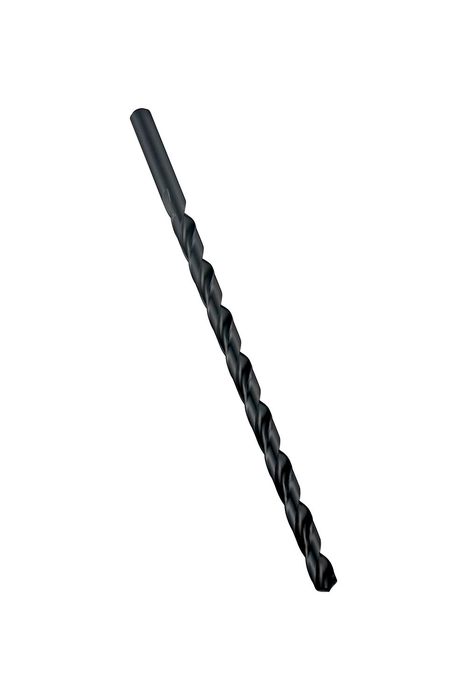

Extra long length drill with straight shank, diameter 0.2656" (17/64) with an overall length of 460mm and flute length of 400mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$85.41 - $85.41
$85.41
$85.41 - $85.41
$85.41
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

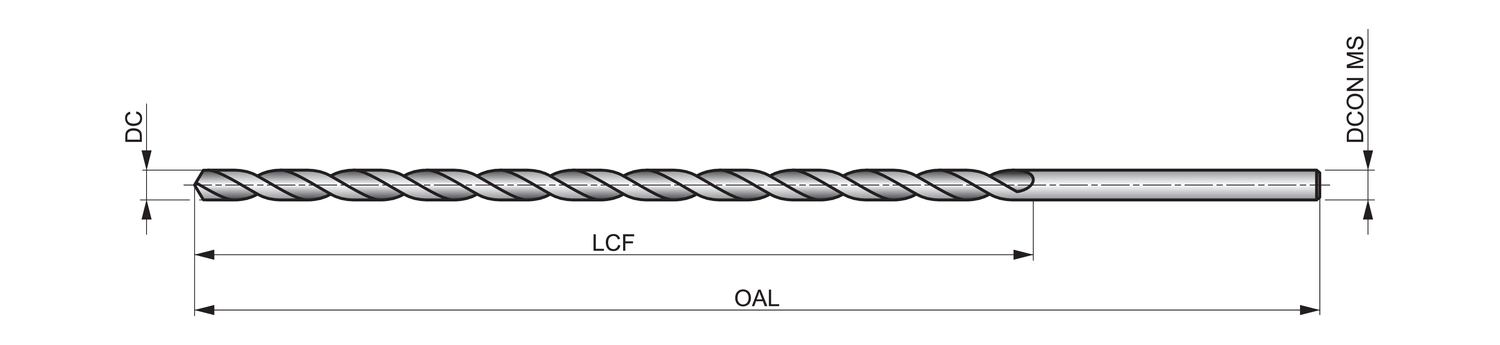

Cutting Diameter - in (DC): 0.2656

Cutting Diameter - mm (DC): 6.75

Drill Point Angle - deg: 118

Flute Length: 15.748

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 18.1102

Connetion Diameter: 0.2657

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 17/64

Grade: Steam Tempered

EDP: 214466

EAN: 7320760214466

MFG Part Number: 5968667
