A1207/64

A1207/64

SKU DOR5968678
by Dormer Pramet
Primary Use: Possible Use:

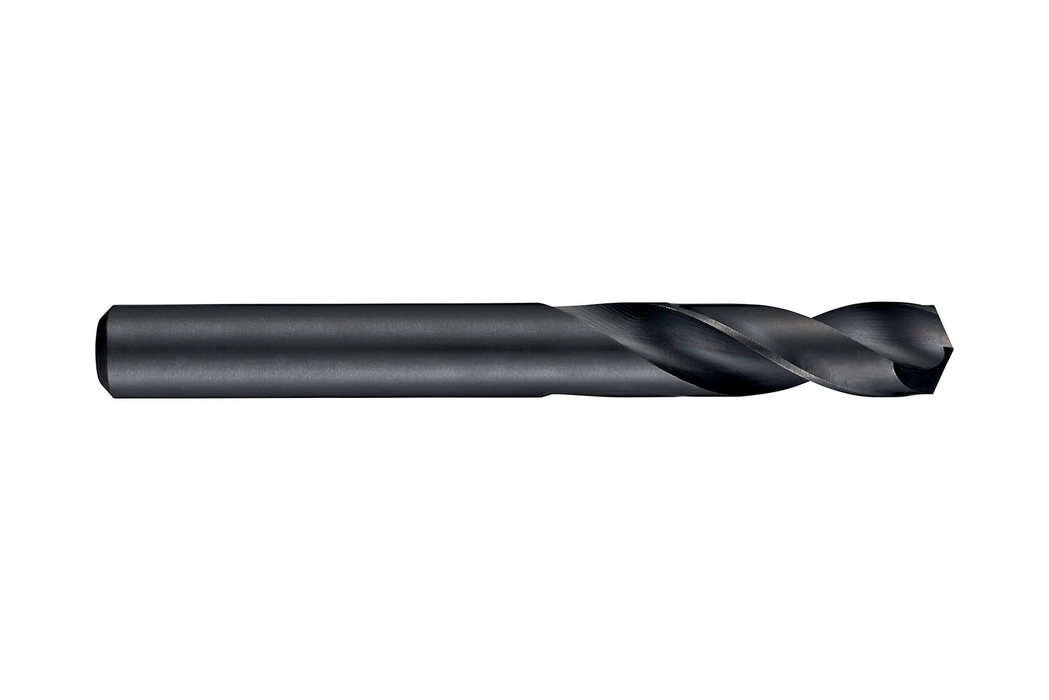

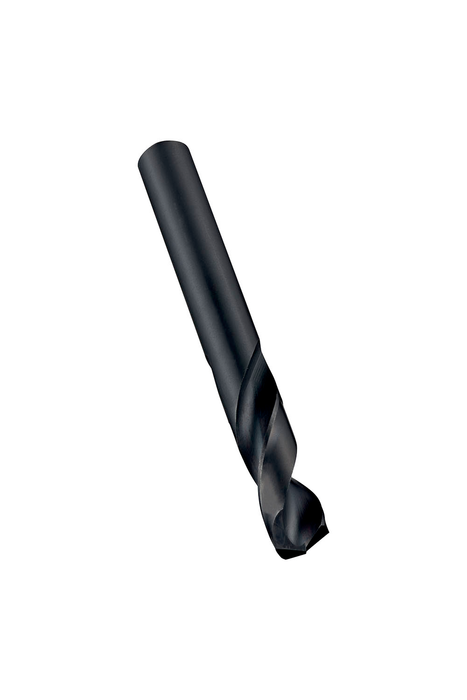

Stub length drill with straight shank, diameter 0.1094" (7/64) with an overall length of 46mm and flute length of 16mm according to DIN 1897 standard with 118° conical point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.47 - $3.47
$3.47
$3.47 - $3.47
$3.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1094

Cutting Diameter - mm (DC): 2.78

Drill Point Angle - deg: 118

Flute Length: 0.6299

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.811

Connetion Diameter: 0.1094

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 7/64

Grade: Steam Tempered

EDP: 18040

EAN: 7320760018040

MFG Part Number: 5968678
