A17015.5

A17015.5

SKU DOR5968690
by Dormer Pramet
Primary Use: Possible Use:

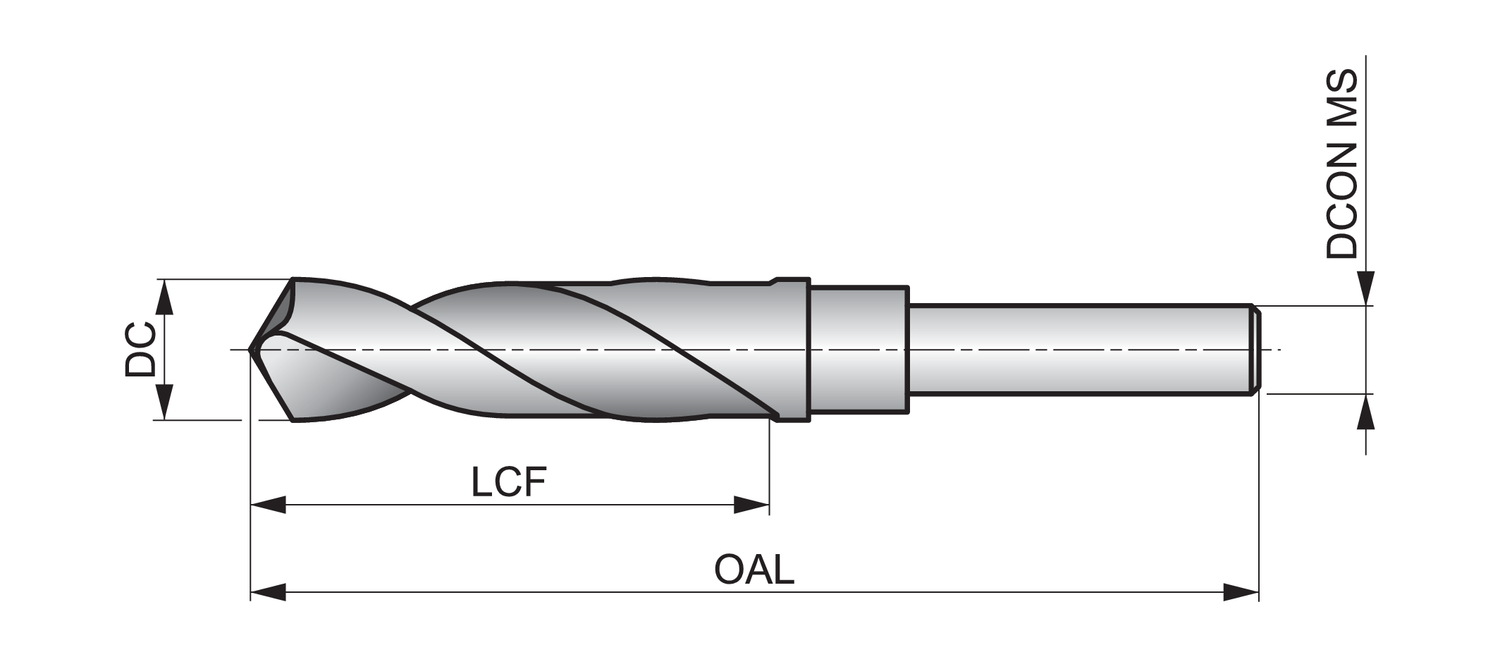

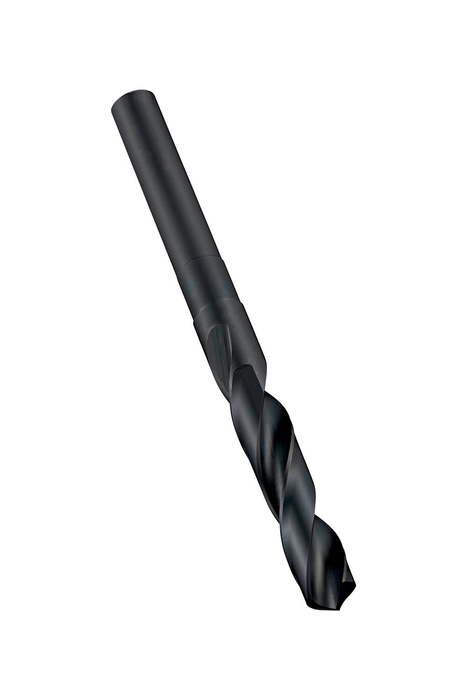

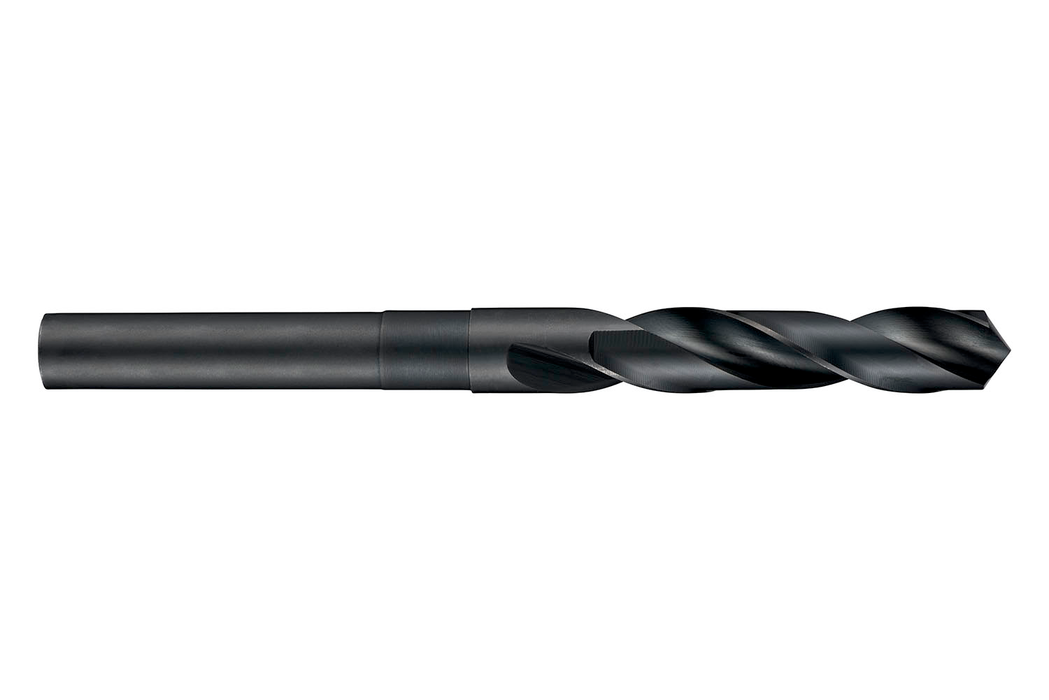

Standard length drill with 1/2" reduced straight shank, diameter 15.5mm with an overall length of 156mm and flute length of 83mm according to DORMER standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$165.09 - $165.09
$165.09
$165.09 - $165.09
$165.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.6102

Cutting Diameter - mm (DC): 15.5

Drill Point Angle - deg: 118

Flute Length: 3.2677

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.1417

Connetion Diameter: 0.5

Tool Direction: Right

Shank: Reduced Cylindrical shank

Grade: Steam Tempered

EDP: 30226

EAN: 7320760030226

MFG Part Number: 5968690
