A17029/32

A17029/32

SKU DOR5968783
by Dormer Pramet
Primary Use: Possible Use:

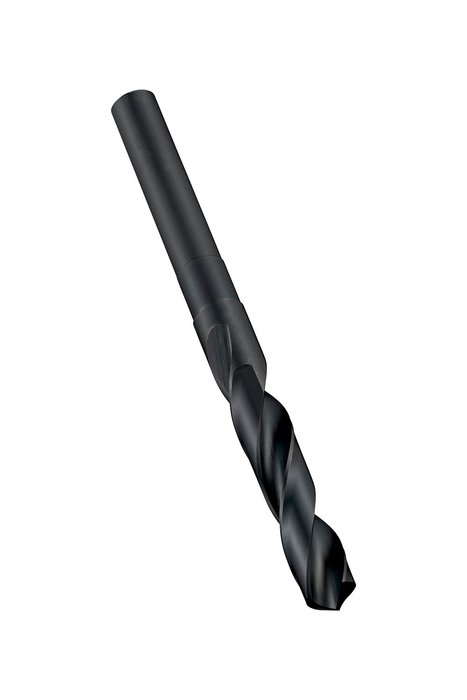

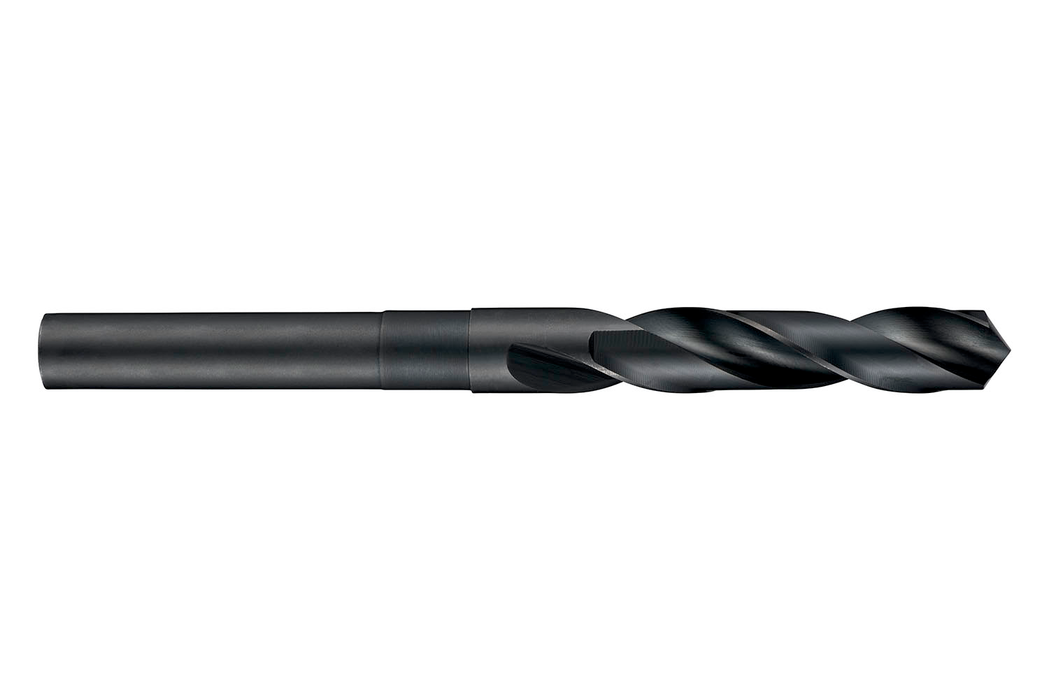

Standard length drill with 1/2" reduced straight shank, diameter 0.9063" (29/32) with an overall length of 6" and flute length of 3" according to DORMER standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$75.87 - $75.87
$75.87
$75.87 - $75.87
$75.87
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

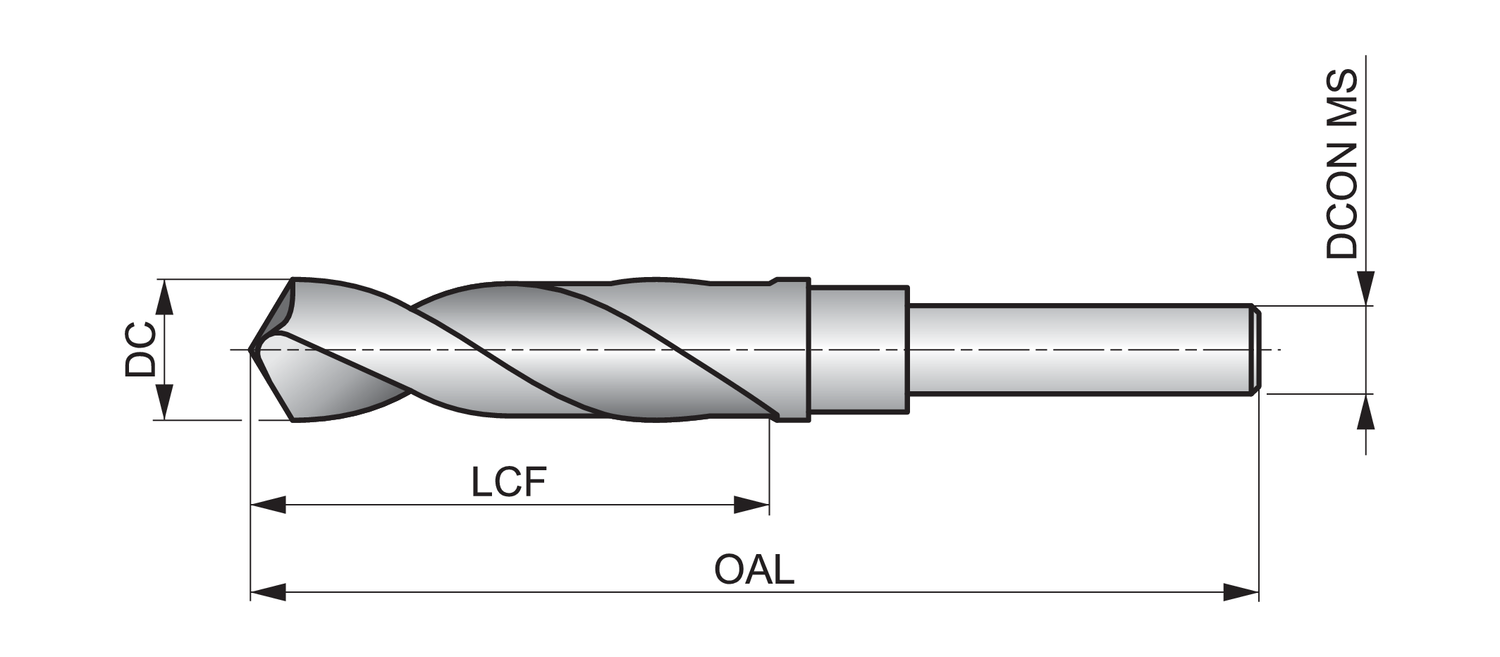

Material: HSS

Cutting Diameter - in (DC): 0.9063

Cutting Diameter - mm (DC): 23.02

Drill Point Angle - deg: 118

Flute Length: 3.0

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.0

Connetion Diameter: 0.5

Tool Direction: Right

Shank: Reduced Cylindrical shank

Fractional: 29/32

Grade: Steam Tempered

EDP: 121863

EAN: 7320760121863

MFG Part Number: 5968783
