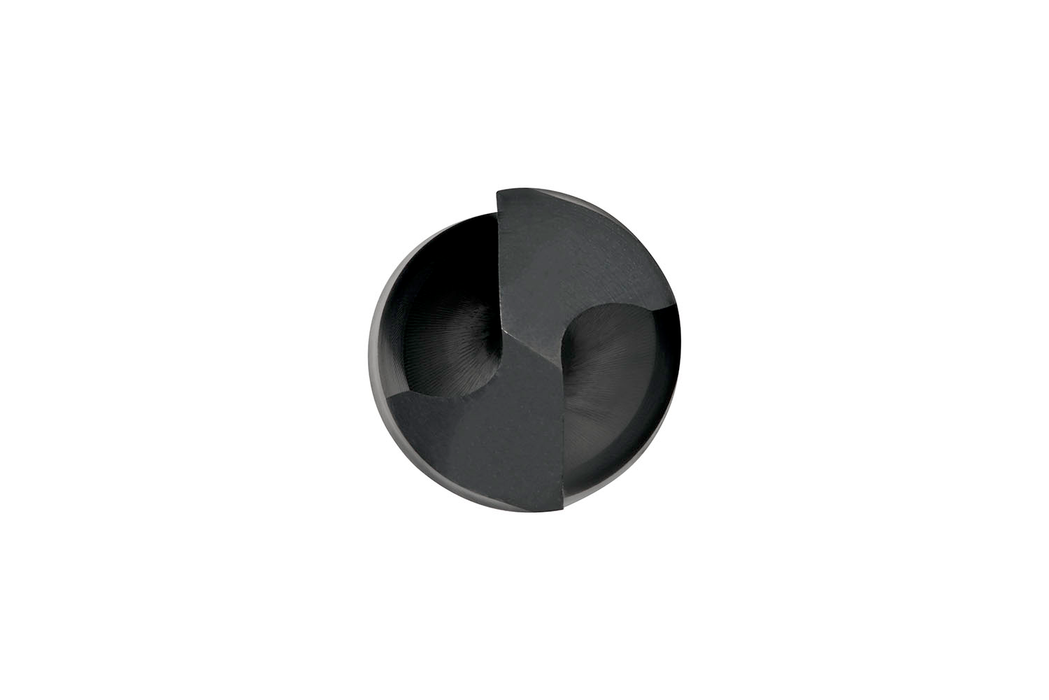

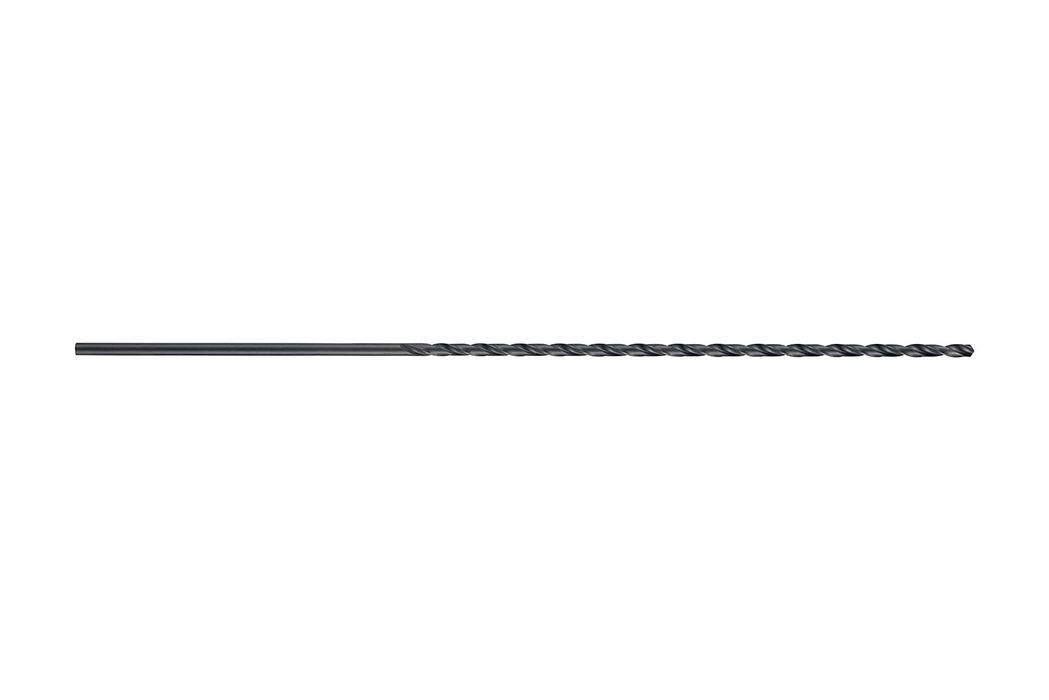

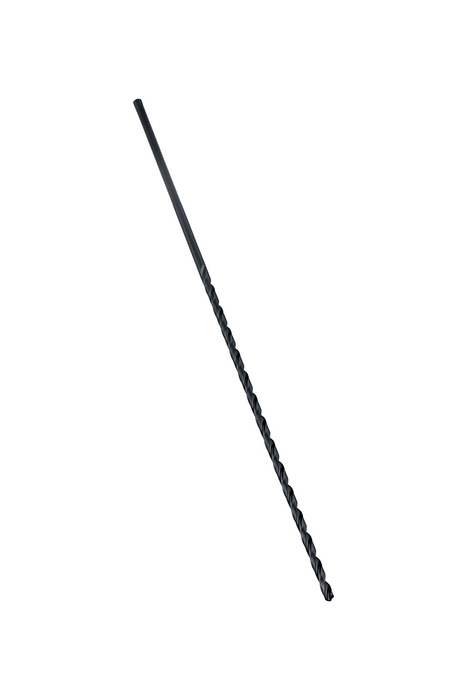

A1255/64X160

A1255/64X160

SKU DOR5968859
by Dormer Pramet
Primary Use: Possible Use:

Extra long length drill with straight shank, diameter 0.0781" (5/64) with an overall length of 160mm and flute length of 100mm according to BS 328 standard with 118° conical point, HSS with bright finish for 10xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$40.94 - $40.94
$40.94
$40.94 - $40.94
$40.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0781

Cutting Diameter - mm (DC): 1.98

Drill Point Angle - deg: 118

Flute Length: 3.937

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 6.2992

Connetion Diameter: 0.078

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/64

Grade: Bright

EDP: 173688

EAN: 7320760173688

MFG Part Number: 5968859
