A218N2
A218N2

A218N2

SKU DOR5969045
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.40 CAD - $10.40 CAD
$10.40 CAD
$10.40 CAD - $10.40 CAD
$10.40 CAD

Sold in packs of: 1

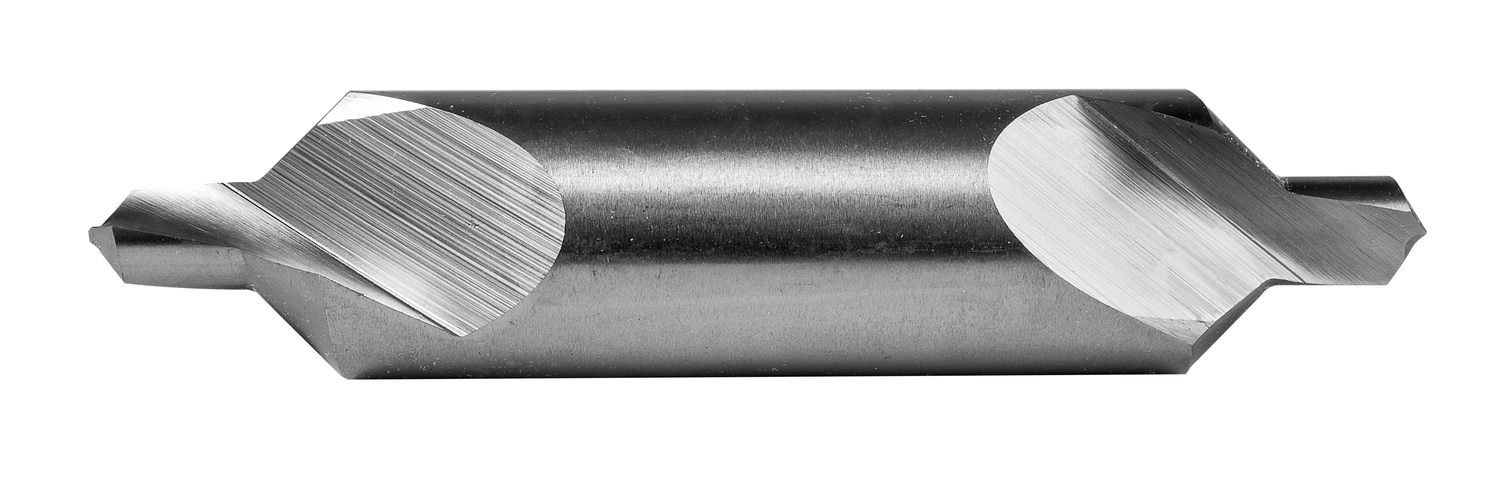

Centre drill (combined drill and countersink) with 90° straight conical form, double ended and cylindrical body, size 2 with 5/64" drill diameter, a body diameter of 3/16" and an overall length of 1.7/8", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A218N2
GradeBright
Product Number5969045
Product FamilyA218

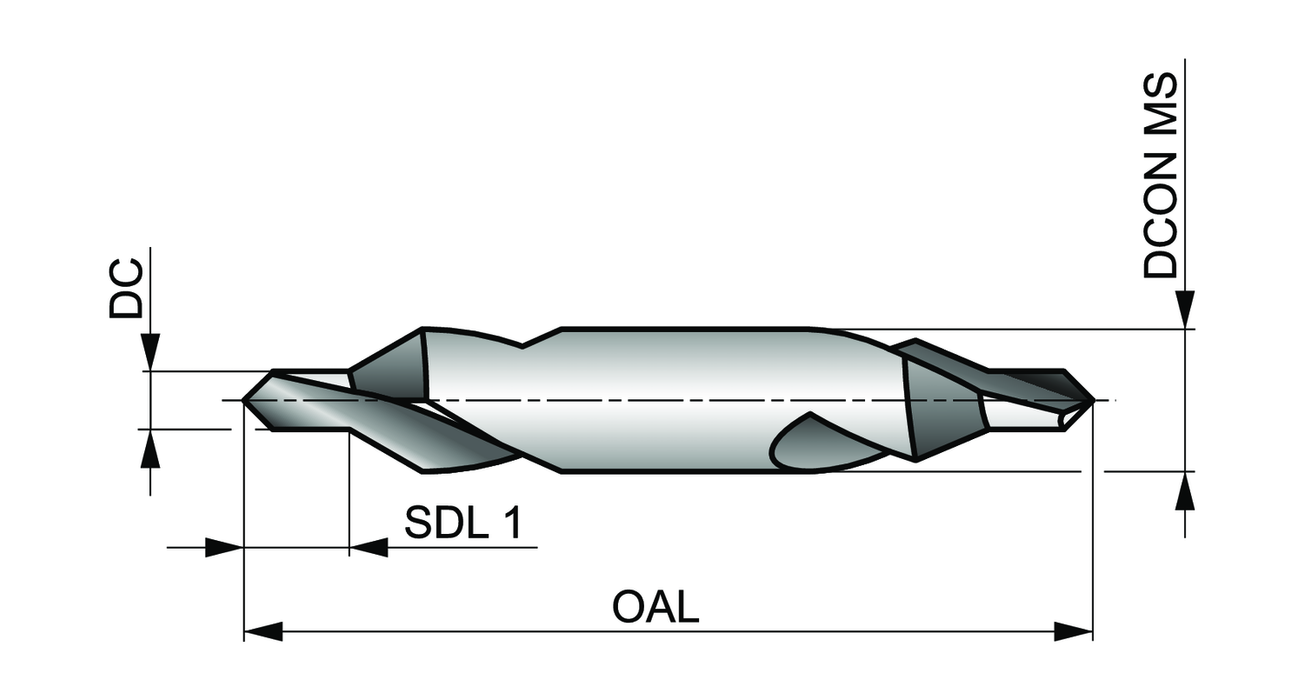

Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Overall Length — in (OAL)1.875"
Overall Length — mm (OAL)47.63 mm
Flute Length — in (LCF)0.5156"
Flute Length — mm (LCF)13.1 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239308
EAN7320760239308
File Type Download
A218N2 — Line Drawing PDF Download
