A221N0
A221N0

A221N0

SKU DOR5969065
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.33 CAD - $10.33 CAD
$10.33 CAD
$10.33 CAD - $10.33 CAD
$10.33 CAD

Sold in packs of: 1

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size 0 with 1/32" drill diameter, a body diameter of 1/8" and an overall length of 1.1/8", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A221N0
GradeBright
Product Number5969065
Product FamilyA221

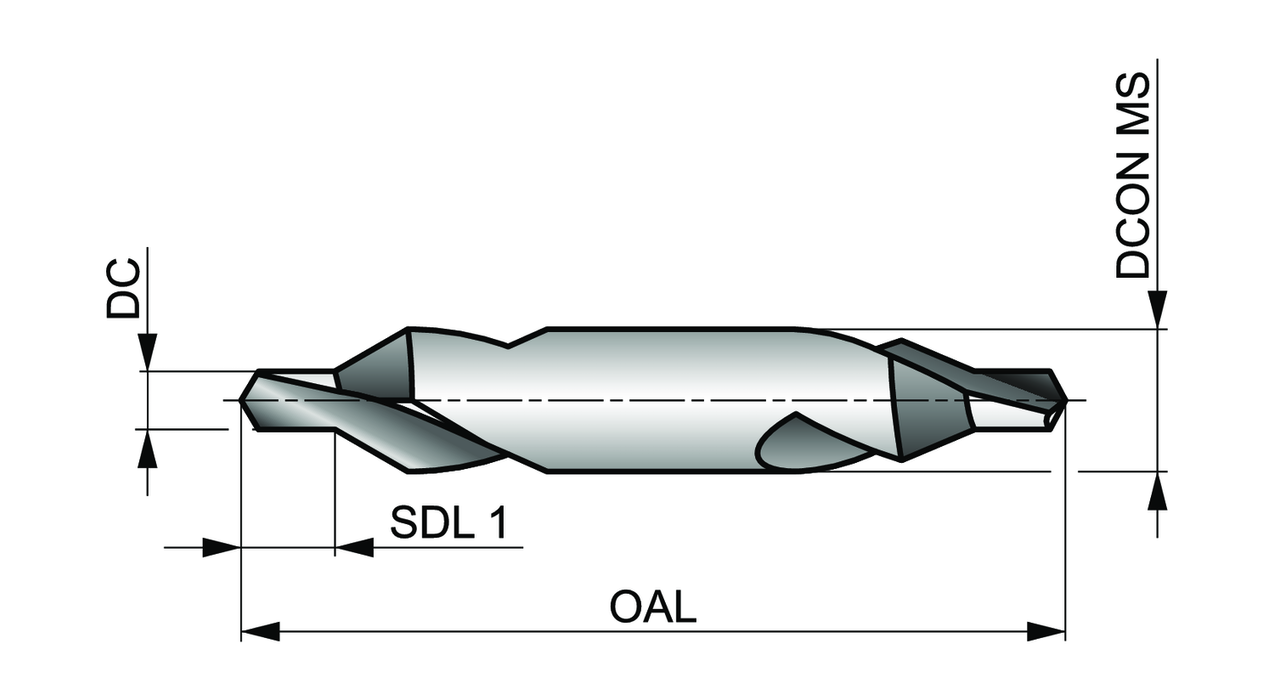

Dimensions
Cutting Diameter — in (DC)0.0313"
Cutting Diameter — mm (DC)0.8 mm
Cutting Diameter — Fractional1/32
Overall Length — in (OAL)1.125"
Overall Length — mm (OAL)28.58 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number241844
EAN7320760241844
File Type Download
A221N0 — Line Drawing PDF Download
