A221N1

A221N1

SKU DOR5969075
by Dormer Pramet
Primary Use: Possible Use:

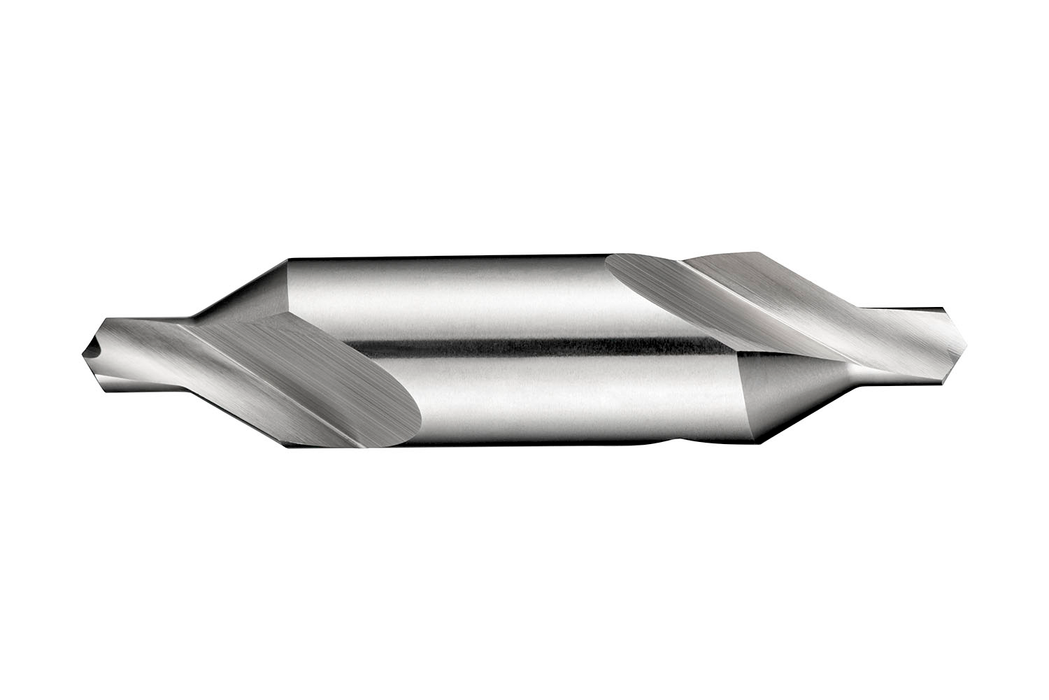

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size 1 with 3/64" drill diameter, a body diameter of 1/8" and an overall length of 1.1/4", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$8.43 - $8.43
$8.43
$8.43 - $8.43
$8.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

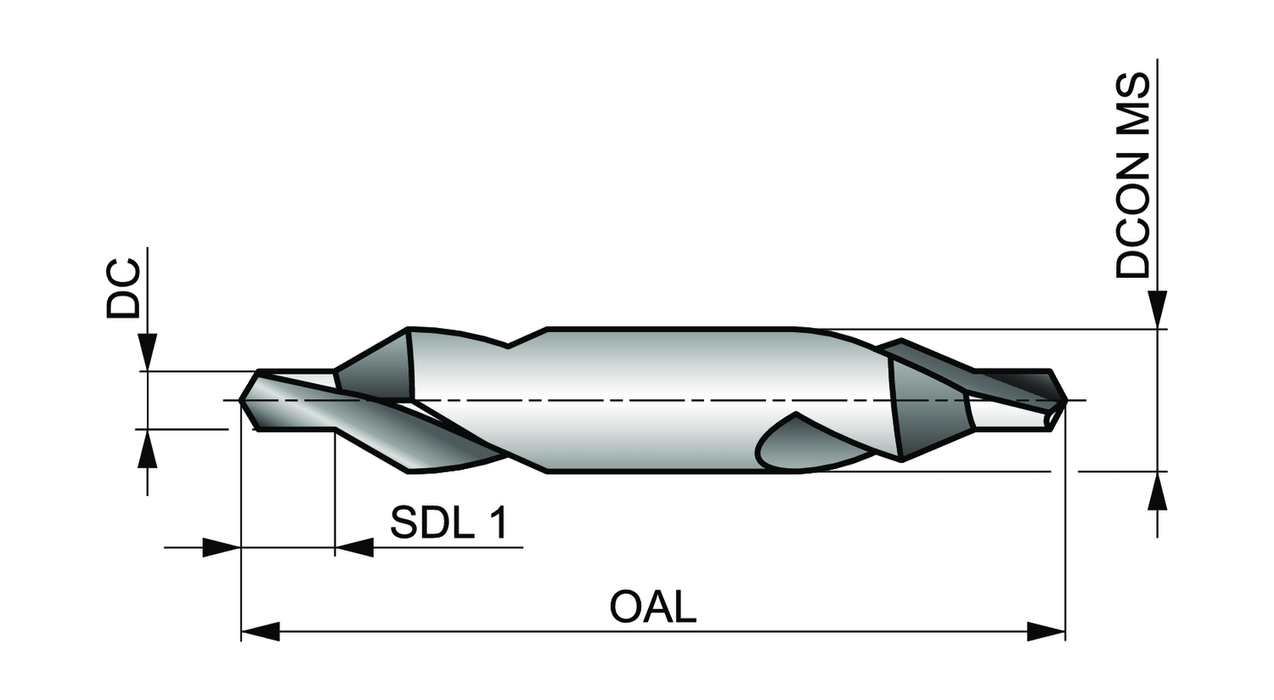

Material: HSS-E

Cutting Diameter - in (DC): 0.0469

Cutting Diameter - mm (DC): 1.19

Drill Point Angle - deg: 118

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.25

Connetion Diameter: 0.125

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/64

Grade: Bright

EDP: 241868

EAN: 7320760241868

MFG Part Number: 5969075
